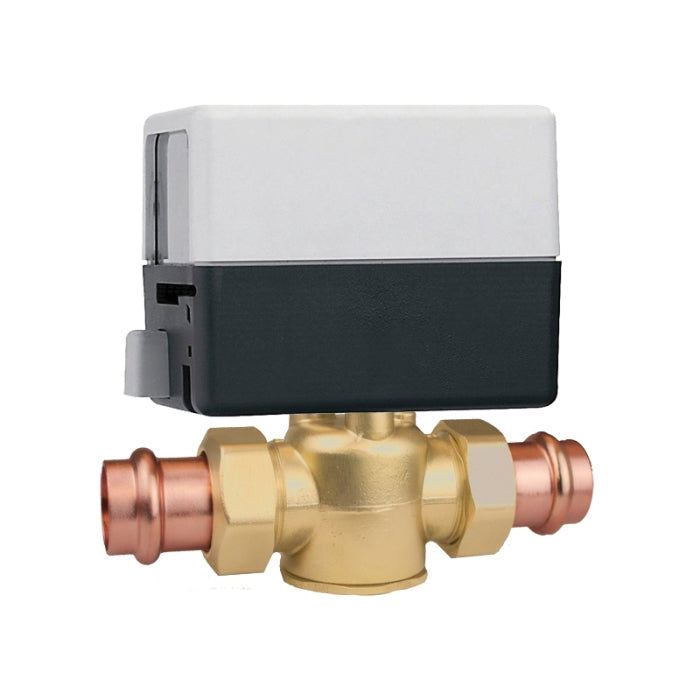

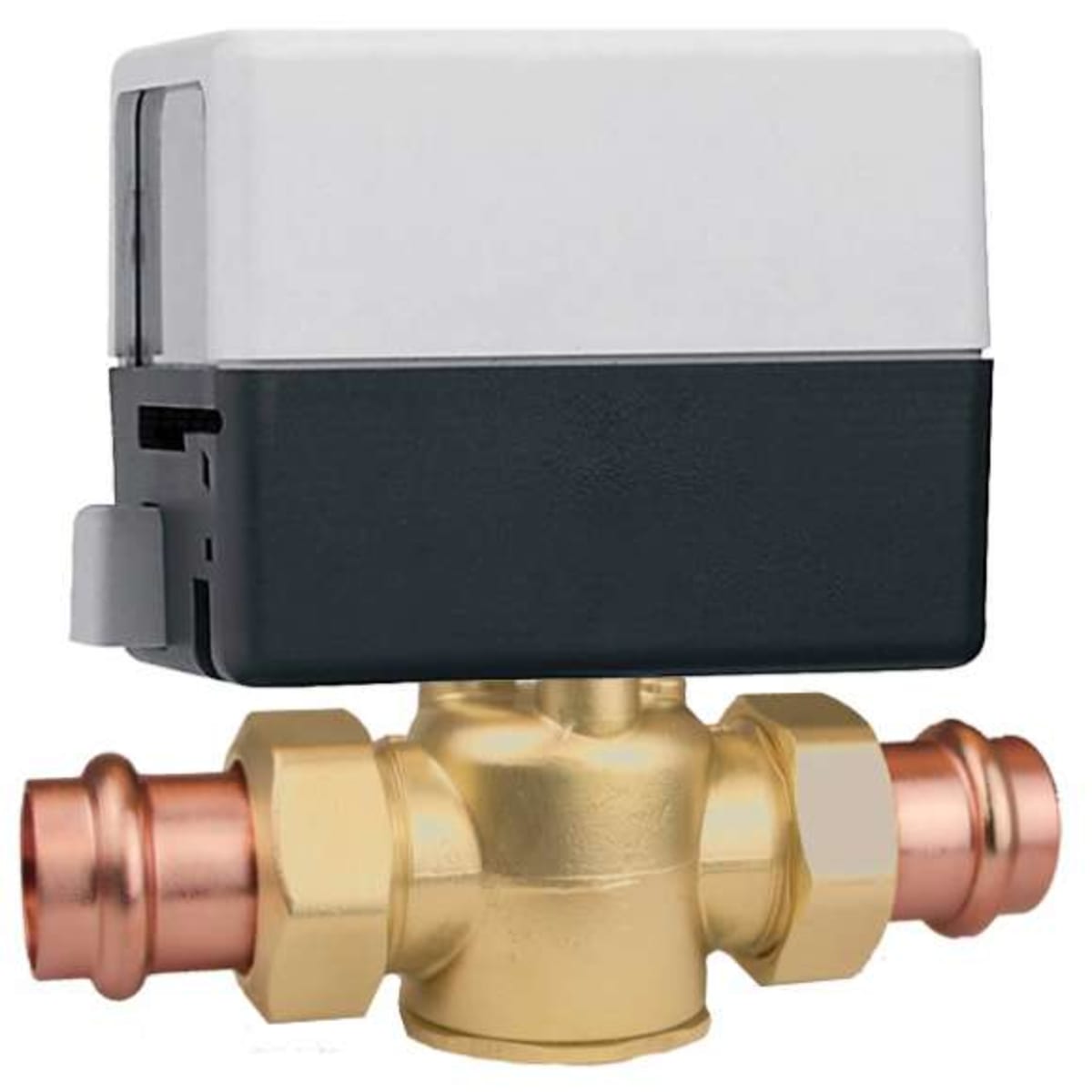

Caleffi Z46P Z-One Zone Valve 1 Press Union NC 24V

Product Description

The Caleffi Z46P is a 1-inch Z-One zone valve designed for automatic shut-off or diversion of hot and chilled water within hydronic systems. This valve is compatible with open and closed systems as well as low-pressure steam. It features a motorized two-position spring return actuator that allows for quick installation with minimal tools.

• 2-way valve with a compact design suitable for baseboards and fan coils.
• Compatible with up to 240 degrees Fahrenheit hot water and 15 psi steam.
• Low power consumption enables the connection of multiple valves on a single transformer.

Product Highlights

The Z46P valve offers a bubble-tight seal, making it efficient for high close-off applications. It is suitable for various connection types including press fittings, ensuring fast installation and maintenance.

Product Information

Standard Information

• Brand: Caleffi
• Manufacturer Part Number: Z46P

Technical Specifications

• Type: 2-Way
• Nominal Size: 1 inches
• Pressure Rating: 300 psi
• Voltage Rating: 24 VAC
• Flow Capacity: 7.5 Cv
• Amperage Rating: 0.4 A
• Water Temperature Range: 32 to 240 degrees Fahrenheit
• Connection Type: Press
• Body Material: Forged Brass
• Overall Length: 5-5/8 inches
• Electrical Connections: 18 inches wire
• Differential: 20 psi
