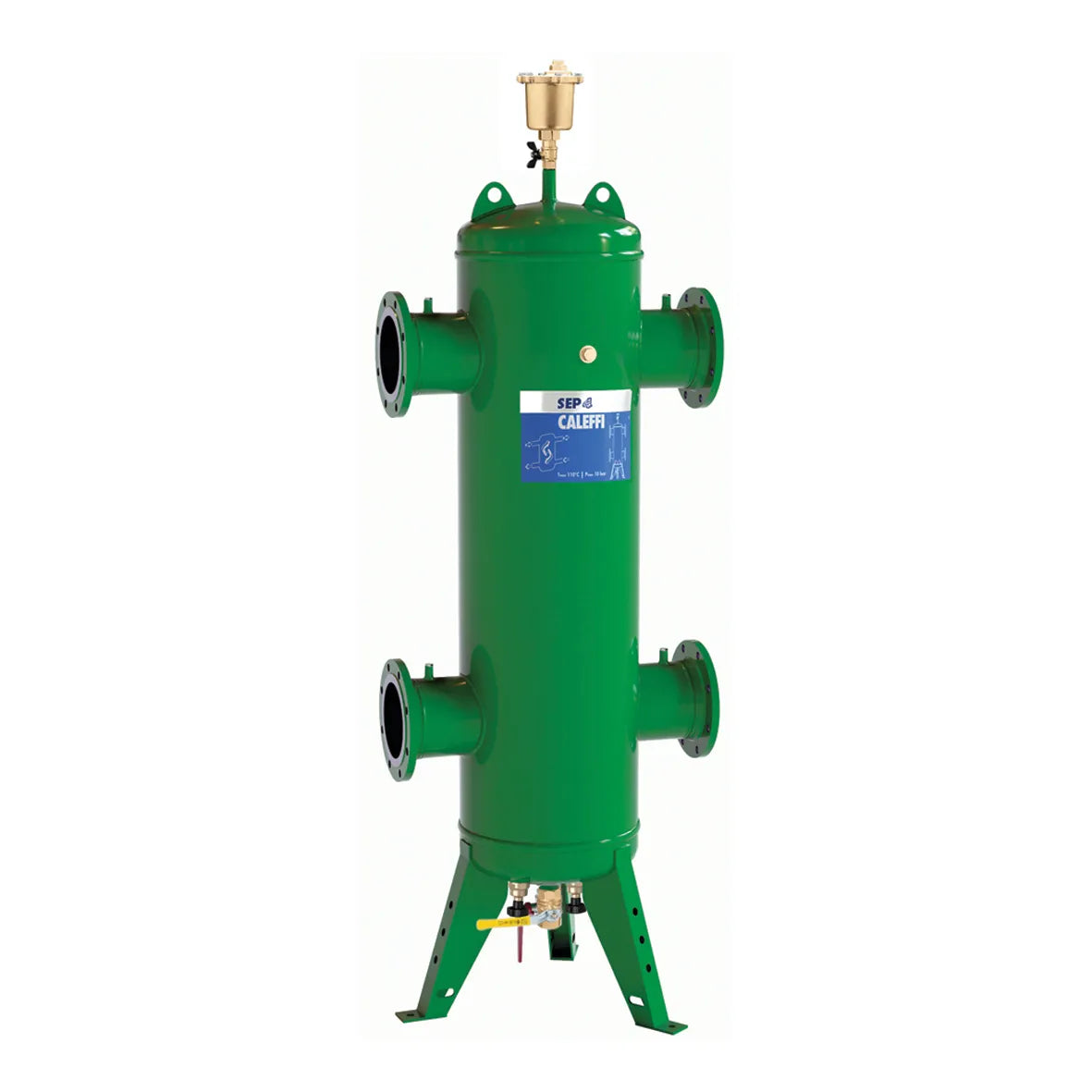

Caleffi NA549350AM SEP4 Flanged 4-in-1 Hydraulic Separator 14 inch

Product Description

The CALEFFI NA549350AM SEP4 Flanged 4-in-1 Hydraulic Separator is designed for hydronic systems, combining air, hydraulic, dirt, and magnetic separation functions. This steel unit features a 14-inch ANSI 150 flange connection and operates with a maximum pressure of 150 psi. It handles medium temperatures from 32 to 270 °F, ensuring efficient fluid purification and system protection.

• Combination: air, hydraulic, dirt, and magnetic separation
• Air vent isolation valve
• Drain valve

Product Highlights

This separator integrates four essential hydronic system functions into a single unit, enhancing efficiency and reducing maintenance.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: NA549350AM

Technical Specifications

• Part Number: NA549350AM
• Connection Type: 14'' ANSI 150 flange
• Certifications: ASME
• Material: steel
• Medium Temperature Range: 32 – 270 °F
• Maximum Operating Pressure: 150 psi
• Flow Rate: 2500 gpm
• Insulation Material: Polyurethane Foam Inner/Embossed Aluminum Outer
• Maximum Percentage of Glycol: 0.5
• Nominal Size: 14 In
• Series: NA549
• Type: 4-in-1 Hydraulic Separator Combination
• Thermowell Tap: ½" straight female
