Caleffi 551068AC Discal Air Separator 1-1/2 inches Press

Product Description

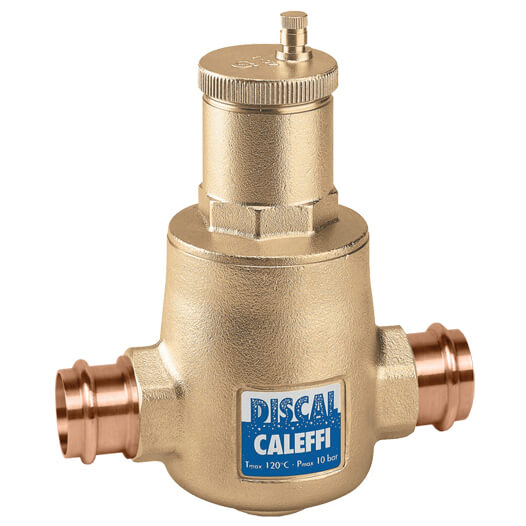

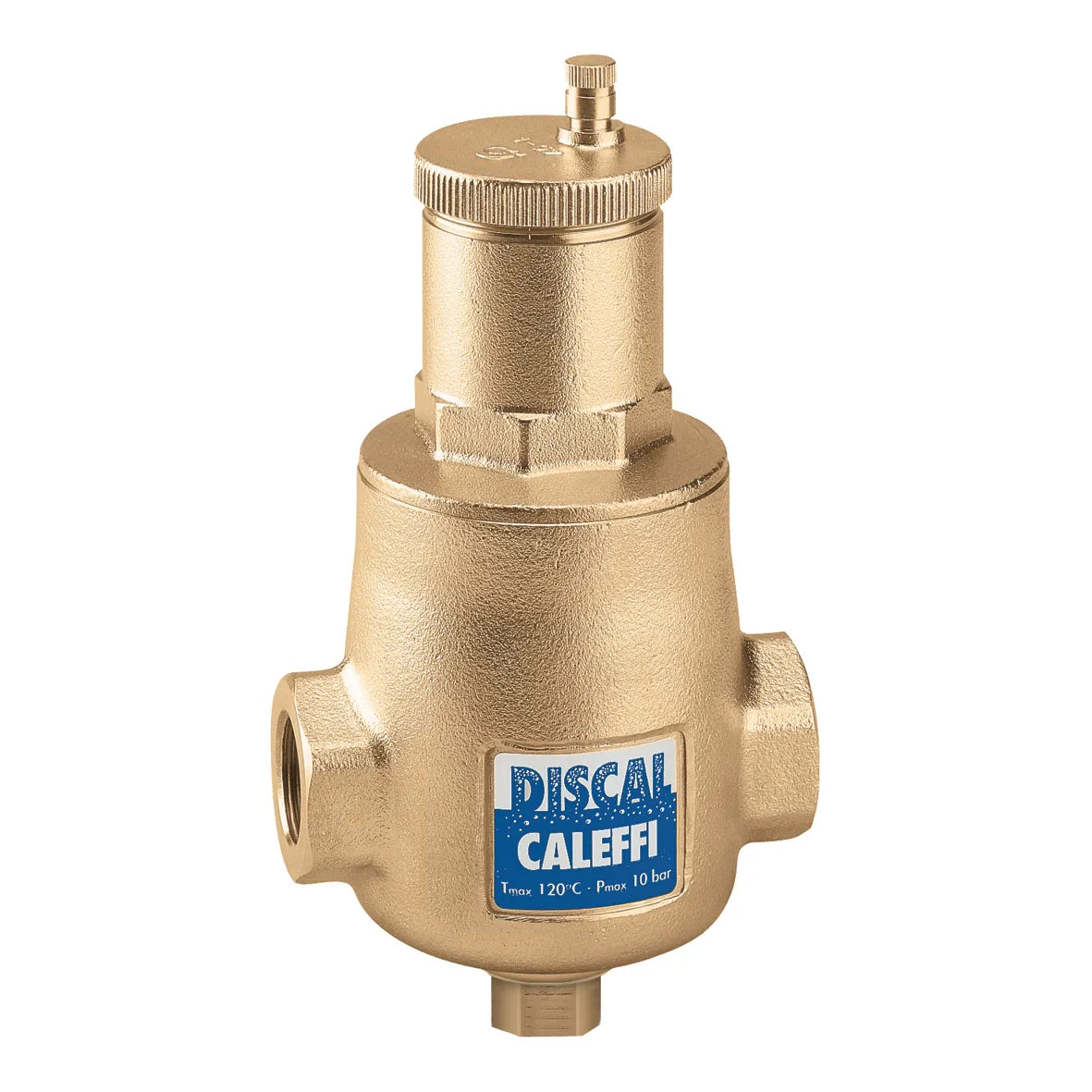

The CALEFFI 551068AC DISCAL® micro-bubble coalescing air separator efficiently removes system gasses. It features a robust design with 100% anti-corrosion components for long, trouble-free operation. Designed for hydronic systems, it prevents corrosion and sediment formation by eliminating dissolved oxygen and other gasses. Air separation efficiency: up to 100% removal.

• Brass body
• Stainless steel float guide pin and linkage
• Glass reinforced nylon internal element

Product Highlights

Effectively removes air and dissolved gasses from hydronic systems, preventing corrosion and maintaining system efficiency.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 551068AC

Technical Specifications

• Size [Features]: 1-1/2"
• Material [Features]: Brass
• Max Temp (F) [Features]: 250
• Product Type [Features]: Air Eliminator
• Connection Type [Features]: Press x Press
• Connection Method [Features]: Press
• Max Pressure (PSI) [Features]: 150
• Material: Brass
• Medium temperature range: 32 - 230 °F
• Maximum operating pressure: 150 psi
• Brand Name: Caleffi
• Brand: Caleffi
• Sub Brand: DISCAL®
• Item Name: Air Separator with Service Check
• Series/Model: 551 Series
• Connection Size: 1-1/2 Inch
• Flow Rate: 22 gpm
• Pressure Rating: 150 psi
• Temperature Rating: 32 - 250 deg F
• Service Check Valve: Yes
• Nominal Size: 1-1/2 in
• Working Pressure: 150 PSI
• Manufacturer: CALEFFI NORTH AMERICA INC
• Manufacturer #: 551068AC
• Series: 551
• Suitable Media: Water/Glycol Solution
