Caleffi 549506US Sep4 4-in-1 Hydraulic Separator 1 in replacement 549506US

Product Description

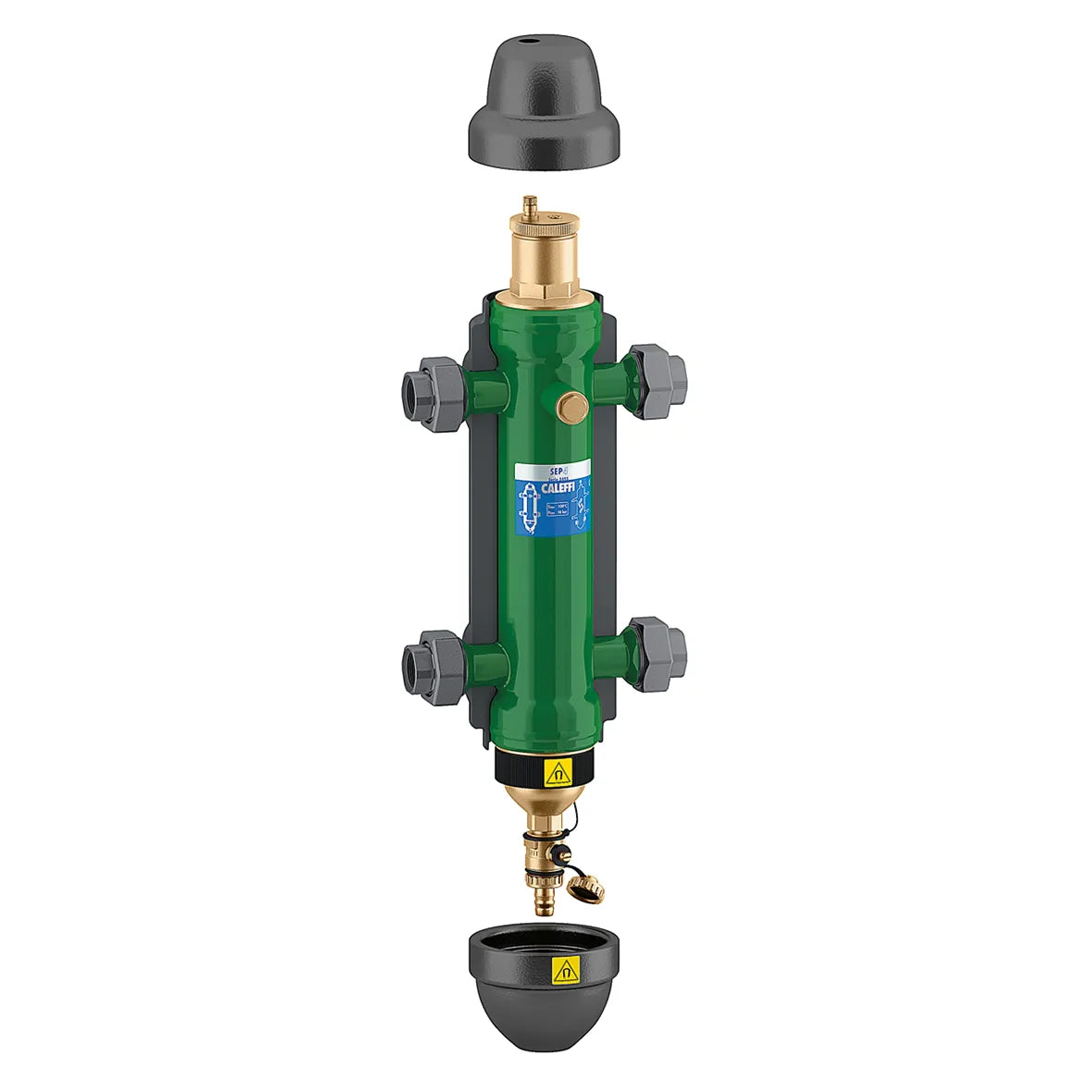

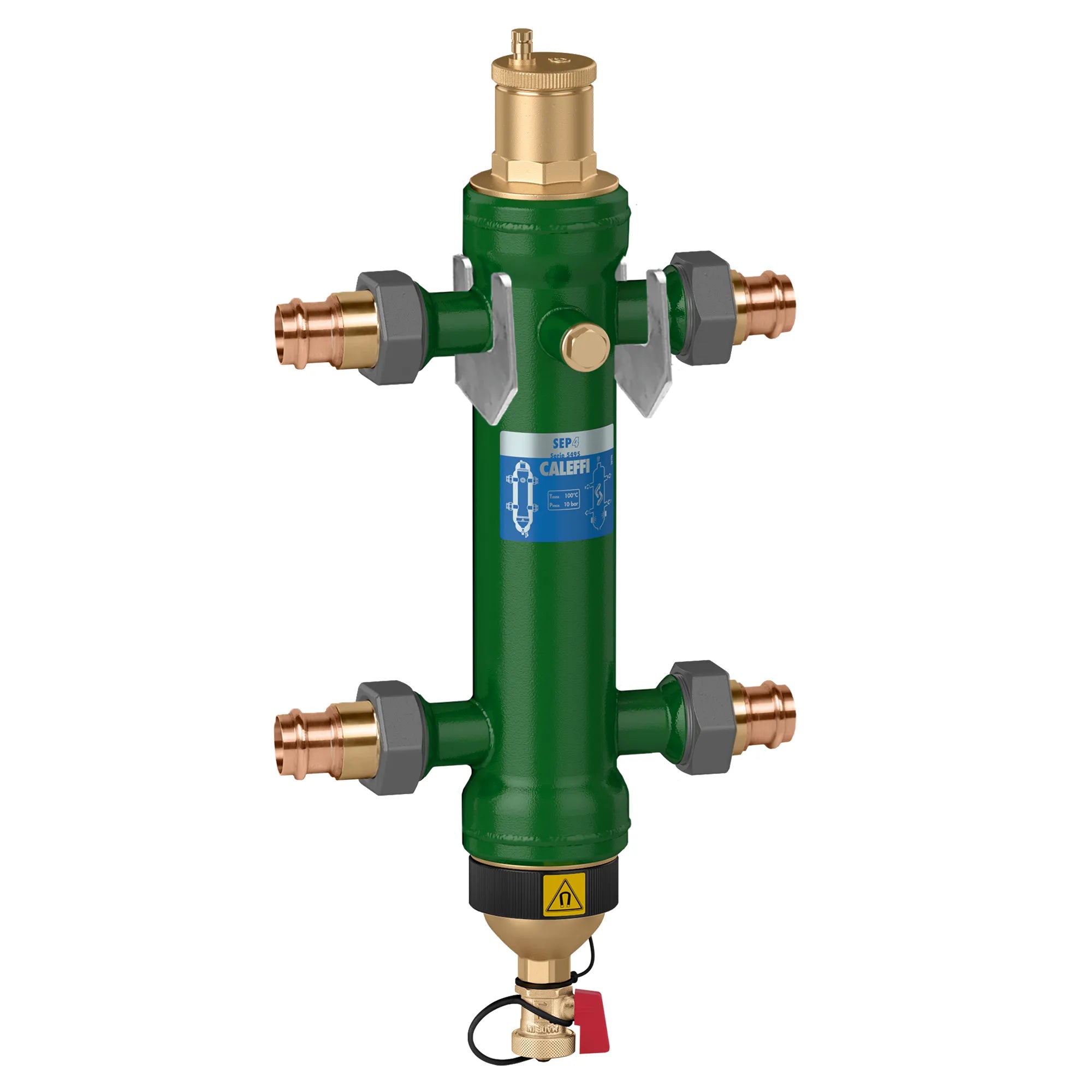

The CALEFFI 549506US Sep4 is a 4-in-1 hydraulic separator that combines air, hydraulic, dirt, and magnetic separation. It features a drain valve and a thermowell tap with a ½" straight female connection. The unit includes a mounting bracket and a 1" straight thread M connection without a tailpiece. Constructed from steel, it withstands a maximum operating pressure of 150 psi.

• Combination: air, hydraulic, dirt, and magnetic separation
• Complete with: Drain valve
• Thermowell tap: ½" straight female

Product Highlights

The CALEFFI Sep4 hydraulic separator offers comprehensive fluid separation in a robust steel construction.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 549506US 001
• Country of Origin: IT

Technical Specifications

• Material: steel
• Medium temperature range: 32 – 210 °F
• Maximum operating pressure: 150 psi
• Connection: 1" straight thread M, no tailpiece
• Finish: coated
• Maximum working pressure: 10 bar
• Maximum recommended flow rate: 2,5 m³/h
• Nominal Size: 1 in
• Temperature Rating: 32 to 212 deg F
• Brand: Caleffi Hydronic Solutions
• Size: 1 inch
• Working Pressure: 150 psi
