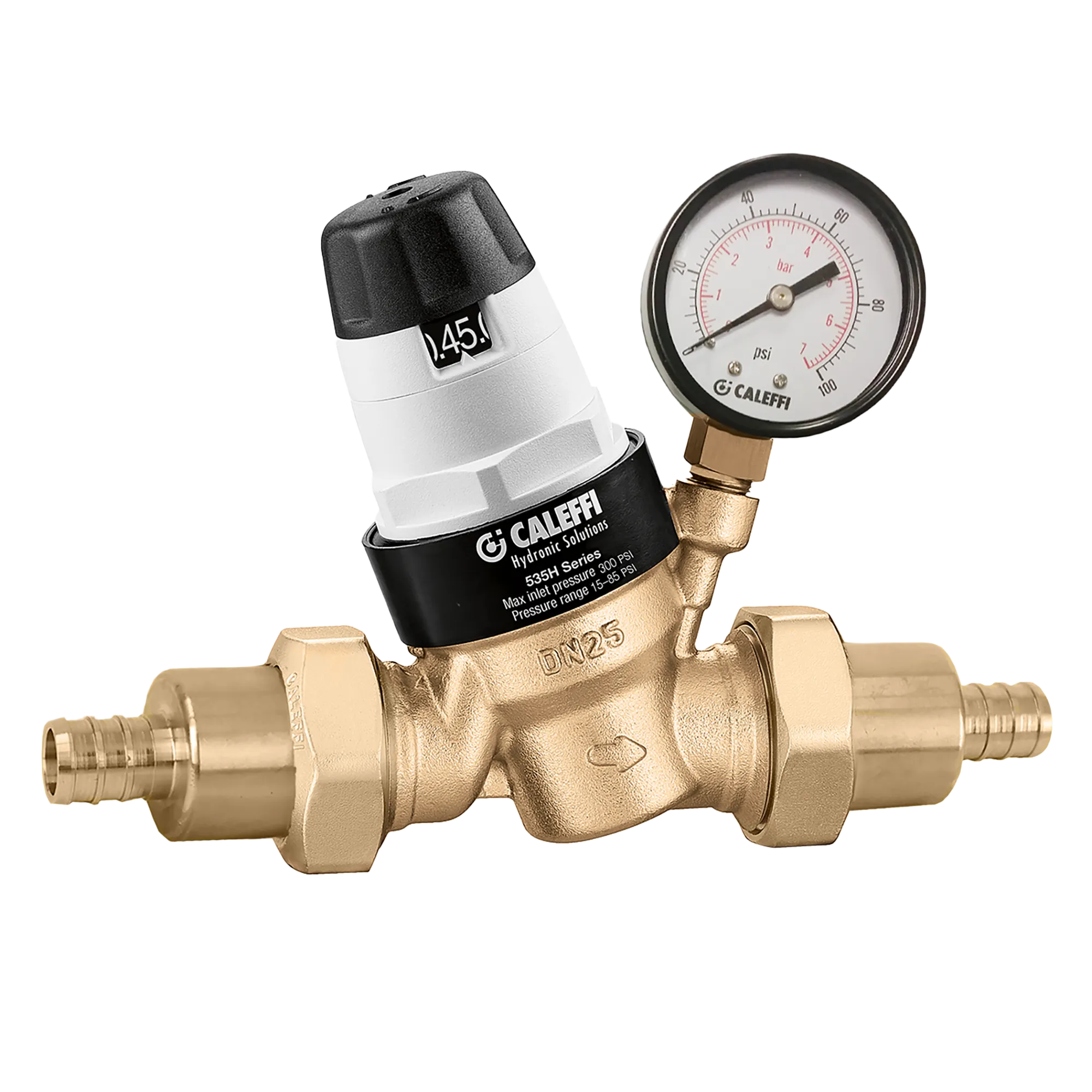

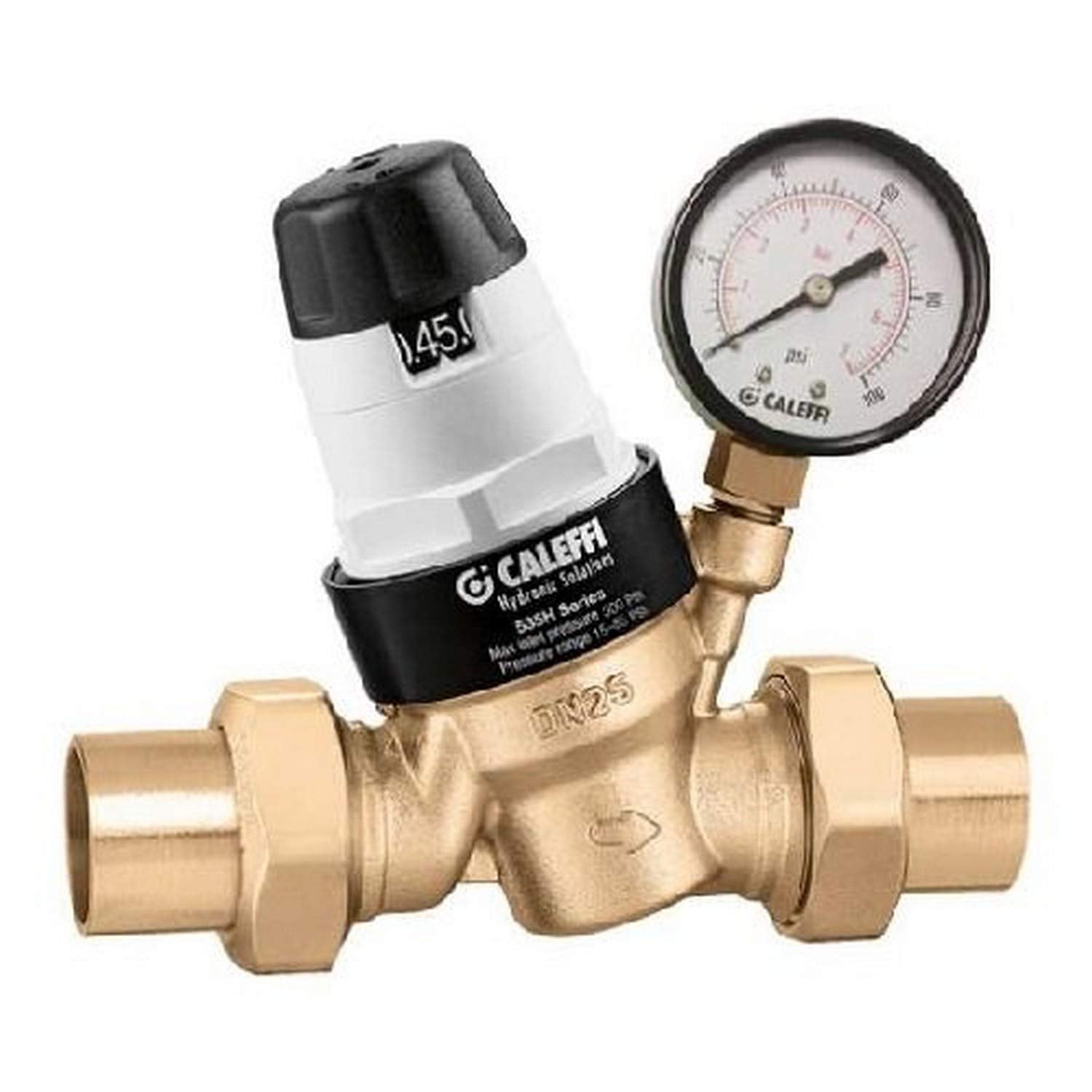

Caleffi 535760HA 535h Series Pressure Reducing Valve ASSE 1003, 1 inches PEX Barb

Product Description

The CALEFFI 535760HA is a pre-adjustable pressure reducing valve for residential and commercial applications. It features a low lead dezincification resistant "Ecobrass" body and a unique noise reducing pressure balanced cartridge. It also has low friction and anti-scale moving parts and a high flow seat design.

• Pre-adjustable pressure reducing valve for residential and commercial applications
• Low lead dezincification resistant "ecobrass" body
• Unique noise reducing pressure balanced cartridge

Product Highlights

This valve is certified to ASSE 1003, CSA B356, NSF61, NSF372, Low Lead Laws and listed by ICC-ES. Meets codes IPC, IRC and UPC for use in accordance with the U.S. and Canadian plumbing codes.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 535760HA

Technical Specifications

• Flow (GPM): 5.6
• Max working pressure: 300 psi (20 bar)
• Max working temperature: 180°F (80°C)
• Pressure setting range: 15 - 90 psi (1 - 6 bar)
• Factory setting: 45 psi (3 bar)
• Material: DZR low lead brass
• Maximum working temperature: 180 °F
• Adjustment pressure range: 15 – 90 psi
• Maximum operating pressure: 300 psi
• Connection: 1" Press, PEX crimp union
• Maximum flow rate: 12.5 gpm
• category: Pressure Reducing Valves
• height: 2.75"
• instruction_sheet: https://www.caleffi.com/sites/default/files/media/external-file/NA10397_NA_0.pdf
• length: 7.5"
• manufacturer: Caleffi
• mpn: 535760HA
• subcategory: Diaphragm Type
• technical_brochure: https://www.caleffi.com/sites/default/files/media/external-file/01265_NA.pdf
• type: PresCal™
• weight: 0.6 LB
• width: 6.25"
• Medium Temperature Range: 356–180 °F
• Minimum Flow Rate: 21 Gpm
• Maximum Flow Rate: 125 Gpm
• Brand: Caleffi
