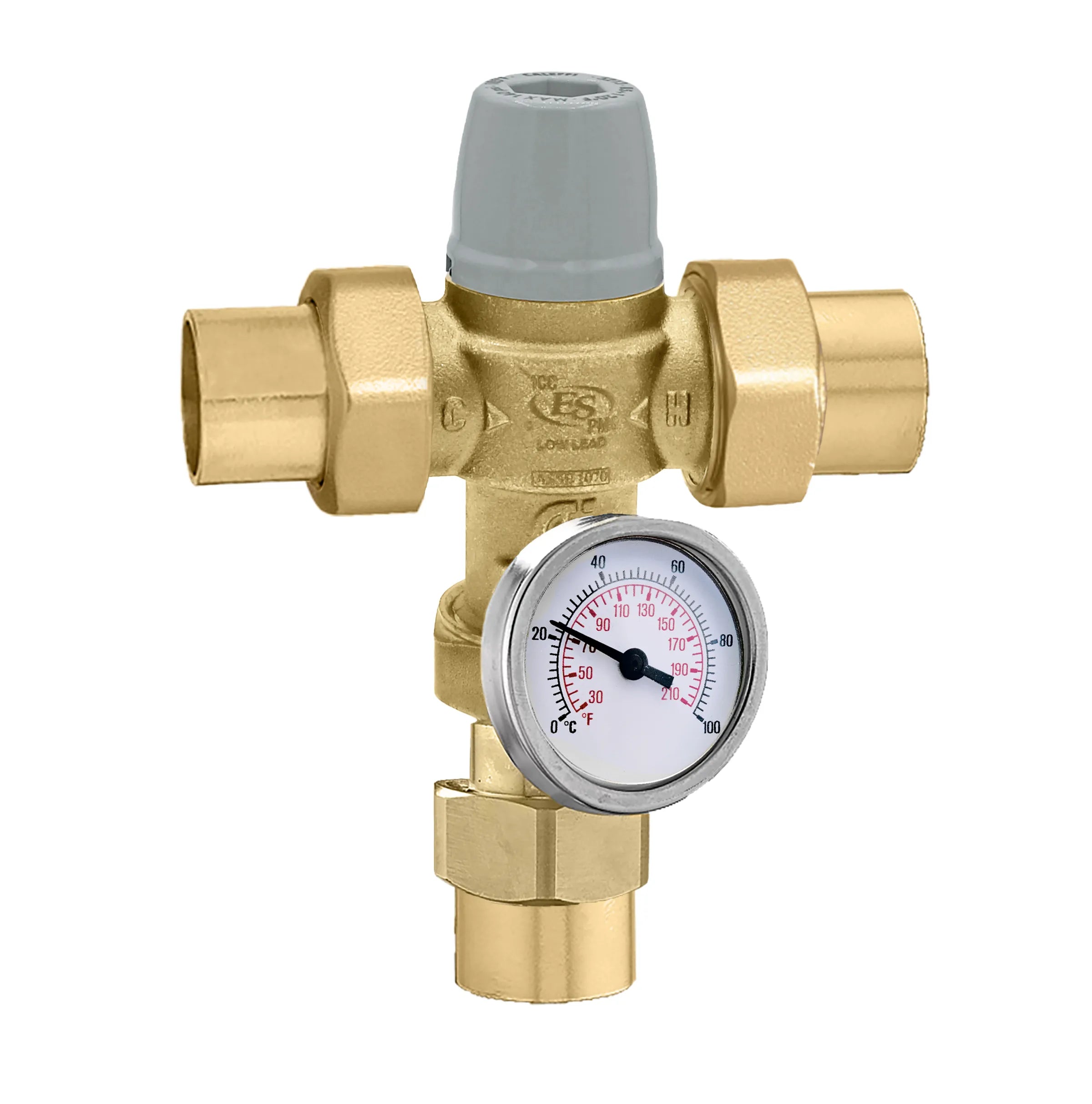

Caleffi 521349A 1/2 Sweat Anti-Scald Mixing Valve

Product Description

The CALEFFI 521349A is an adjustable thermostatic high flow, point-of-use mixing valve designed for Roman tubs and high flow fixtures, providing protection against scalding from hot water. It has a 1/2 inch nominal size and sweat connection type. The valve is cUPC listed to ASSE 1070/CSA B125.3 and IAPMO R And T Certified.

• Adjustable thermostatic high flow
• Point-of-use mixing valve
• Anti-scald protection

Product Highlights

This mixing valve is ideal for use in applications where protection from scalding is required, such as hospitals, schools, and nursing homes.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 521349A

Technical Specifications

• Series/Model: Series 5213
• Nominal Size: 1/2 IN
• Connection Type: Sweat
• Pressure Rating: 140 PSI Static, 70 PSI Dynamic
• Flow Rate: 0.5 GPM Minimum
• Temperature Rating: 80 - 120 DEG F
• Body Material: Brass
• Seal Material: EPDM
• Industry Standards: cUPC Listed To ASSE 1070/CSA B125.3, IAPMO R And T Certified
• Lead Free: Yes
• Flow Co-Efficient (Cv): 2
• Size: 1/2"
• Connection Method: Sweat
• Max Temp (F): 185°F
• Max Pressure (PSI): 150
• Min Flow (GPM): 0.5
• Standards Met: ASSE 1070
• Application: Point of Use
• Material: Brass
• Body Pattern: 3-Way
• Type: Mixing Valve
• CV Value: 2
• Minimum Operating Temperature: 39 F
• Maximum Operating Temperature: 185 F
• Connection Size: 1/2 Inch
• Manufacturer: Caleffi
• Manufacturer #: 521349A
• Parts Town #: CALE521349A
• Adjustment temperature range: 85 – 120 °F
• Maximum inlet temperature: 185 °F
• Flow rate working range: 0.5 – 9 gpm
• Item Name: Thermostatic Mixing Valve
• Maximum operating pressure: 150 psi
