Product Description

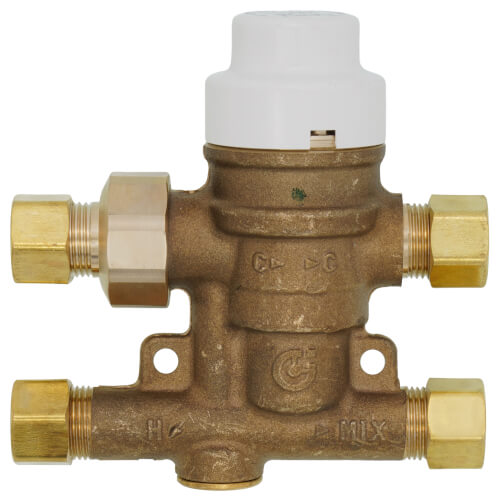

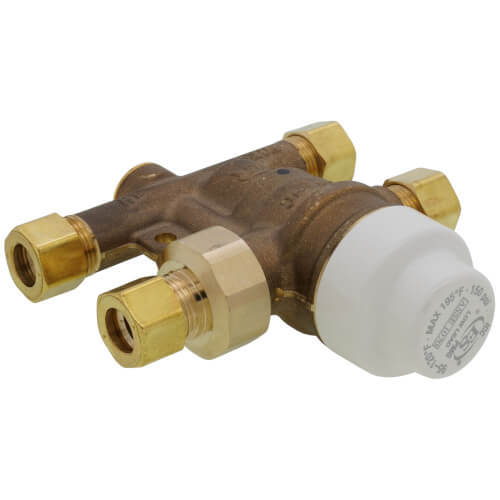

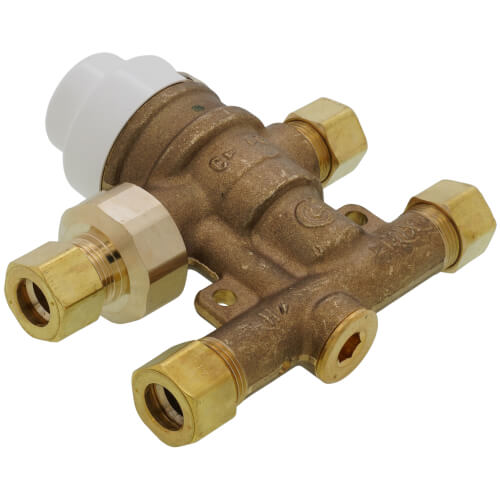

The Caleffi 521201AP SinkMixer is a thermostatic mixing valve designed for under-sink use, ensuring safe tempered water delivery. This valve features a patented low-lead brass body to provide high flow capacity while maintaining a compact design. Its four-port configuration simplifies installation and reduces the amount of piping required compared to standard three-port valves.
- Lead-free construction ensuring safety for drinking water
- High flow capacity of 0.52 CV
- Meets compliance standards including NSF/ANSI/CAN 61-2019
Product Highlights
This mixing valve is ideal for applications where protection from scalding is necessary. It includes a plug for the cold outlet port, suitable for automatic sinks with a single connection for tempered water.
Product Information
Standard Information
-
Brand: Caleffi
-
MPN: 521201AP
Technical Specifications
-
Material: Brass
-
Flow Capacity: 0.52 CV
-
Max Temperature: 120 degrees F
-
Max Pressure: 150 PSI
-
Connection Type: Compression x Compression
-
Body Pattern: 4-Way
-
Standards Met: ASSE 1070
-
Weight: 1 lb.
