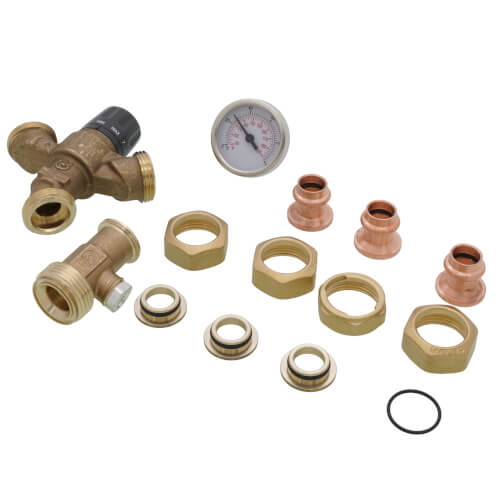

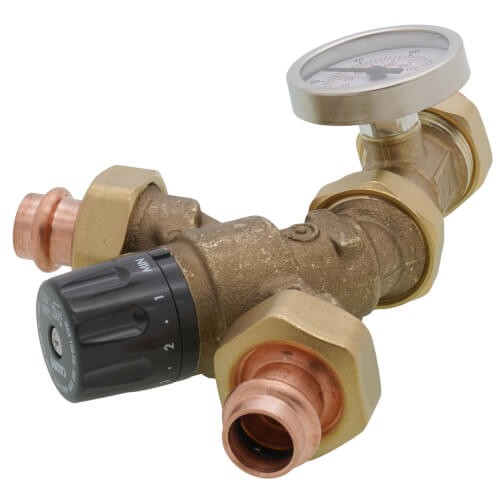

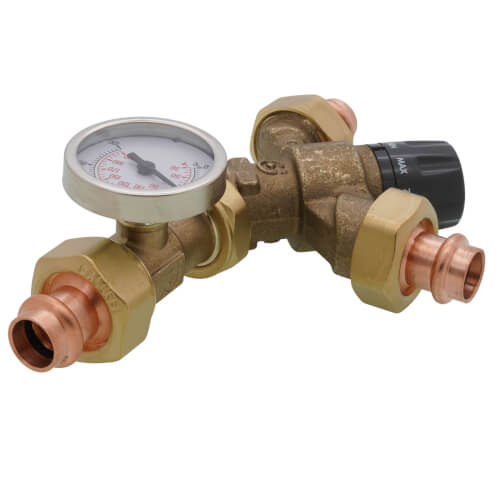

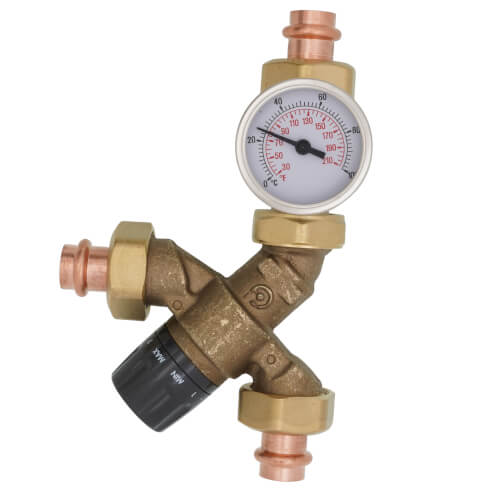

Caleffi 520416A AngleMix 3-Way Mixing Valve 1/2 press union

Product Description

The Caleffi AngleMix 520416A is a 1/2 inch thermostatic mixing valve designed for systems that produce domestic hot water. It is suitable for installation on the top of water heaters. The outlet for mixed temperature aligns with the hot water inlet, simplifying the connection and saving space.

• Three-way design for efficient mixing
• Thermal shut-off feature available
• Pressure rated for reliable operation

Product Highlights

This mixing valve maintains a consistent output temperature, adjusting for temperature and pressure changes in incoming water. It includes a thermal shut-off to prevent accidents during cold water supply failures. Its design enhances fluid dynamics and reduces installation complexity.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 520416A

Technical Specifications

• Size: 1/2 inch
• Type: 3-Way
• Connection Type: Press
• Max Working Pressure (Static): 150 psi
• Max Working Pressure (Dynamic): 75 psi
• Max Inlet Temperature: 195°F
• Temperature Adjustment Range: 95°F - 150°F
• Min Flow for Optimum Performance: 0.5 gpm
