Calbrite S61000TB00 1in ss tb condulet

Product Description

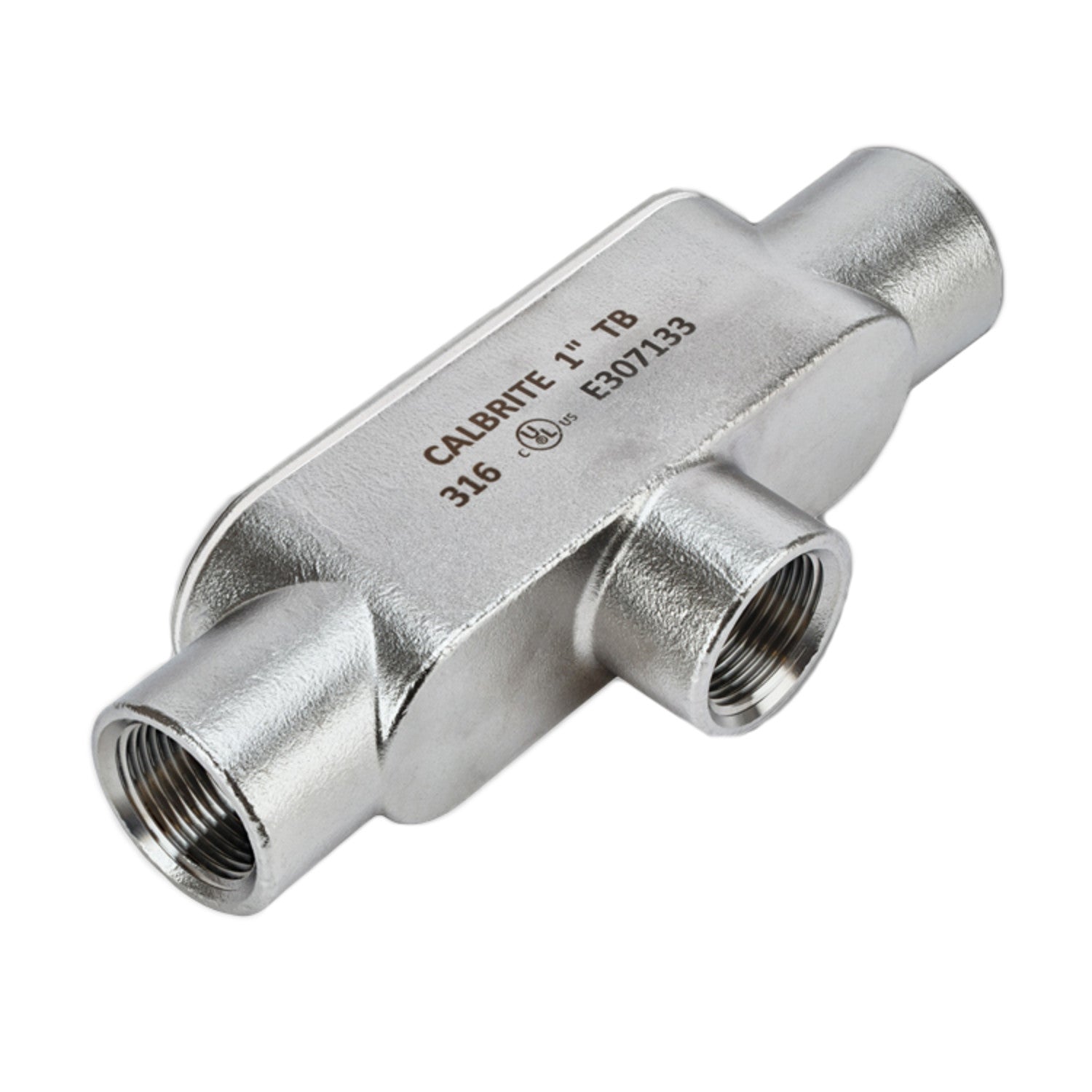

The CALBRITE S61000TB00 is a 1" stainless steel 316 TB conduit body designed to connect and change the direction of conduit runs. It features a polished brite finish for increased corrosion resistance and aesthetic appeal. The flat back design allows extra wiring capacity. UL Listed UL514A E307133.

• Manufactured in type 316 stainless steel to meet any stringent sanitary condition
• Polished with standard brite finish to increase corrosion resistance and aesthetic appearance
• Solid stainless construction permits easy installation using ordinary hand tools

Product Highlights

This stainless steel conduit body is ideal for food and beverage, chemical, and wastewater treatment applications. Includes cover, gasket and screws.

Product Information

Standard Information

• Brand: CALBRITE
• Manufacturer Part Number: S61000TB00
• Country of Origin: Multiple

Technical Specifications

• Type: Stainless Steel TB Conduit Bodies
• Brand: Calbrite®
• Color: Silver
• Material: 316L Stainless Steel
• Form Type: 8
• Trade Size: 1 Inch
• Applications: TO CONNECT AMD CHANGE DIRECTION OF CONDUIT RUNS
• TC Connection: NPT Threaded Coupling
• Catalog Number: S61000TB00
• Manufacturer: Calpipe Industries
• Connection: NPT Threaded Coupling
• Finish: #4 Polished Finish
• Standard: UL 514A
• Item Type: Rigid
• Access Opening: Back
• Configuration: TB
• Cover Type: 316 Stainless Steel
• Hub Location: Tee Back
• Number of Hubs: 3
• Hub Size: 1 Inch
• Installation: Screw
• Approval: UL (Canada and US), UL 514A
• Used On: Stainless Threaded Conduit
• Enclosure Rating: NEMA 4X
• Includes: Neoprene Gasket, Cover, Screws
• Application: Food and Beverage Production, Chemical Plants, Water and Wastewater Treatment, Pharmaceuticals and Cosmetics, Refining and Extraction Sites, Petrochemical Operations, Marine and Coastal Facilities, Pulp and Paper Mills
• Back Type: Flat
• Body Type: Conduit Outlet Body with Cover
• Hub Style: Threaded
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514A File No. E307133cULus Listed
• Body Style: TB
• Thread Size: 1 in
• Thread Type: NPT
• For Use With: Threaded
• Style of Hub: Threaded
• Body Capacity: 13 cu in
• Thread Gender: Female
• Cover Included: Yes
• Connection Type: Threaded
• Gasket Included: Yes
• Special Features: Cover and Gasket Included, Designed for Use with Stainless Threaded Conduits, Easy Installation Using Ordinary Hand Tools
• Hazardous Location: No
• Indoor/Outdoor Usage: Indoor/Outdoor
• Connection Orientation: Multi-Angle
• Conduit Outlet Hub Size: 1"
• Conduit Outlet Body Type: Conduit Outlet Body with Cover
• Conduit Outlet Body Style: TB
• Conduit Outlet Body Capacity: 13.0 cu in
• Conduit Outlet Body Hub Size: 1 in
• Conduit Outlet Body Material: Stainless Steel
• Compatible Conduit Trade Size: 1 in
• Conduit Outlet Body Hub Style: Threaded
• ARRA Compliant: N
• Buy American Compliant: N
• Country of Origin: CN
• EU RoHS Indicator: Y
• Substitute Product Catalog Number: S61000TE00
• UNSPSC: 39131708
• UPC 11: 84765600112
• UPC 12: 847656001124
• Capacity: 13 in³
• Accessory Type: Conduit Bodies
