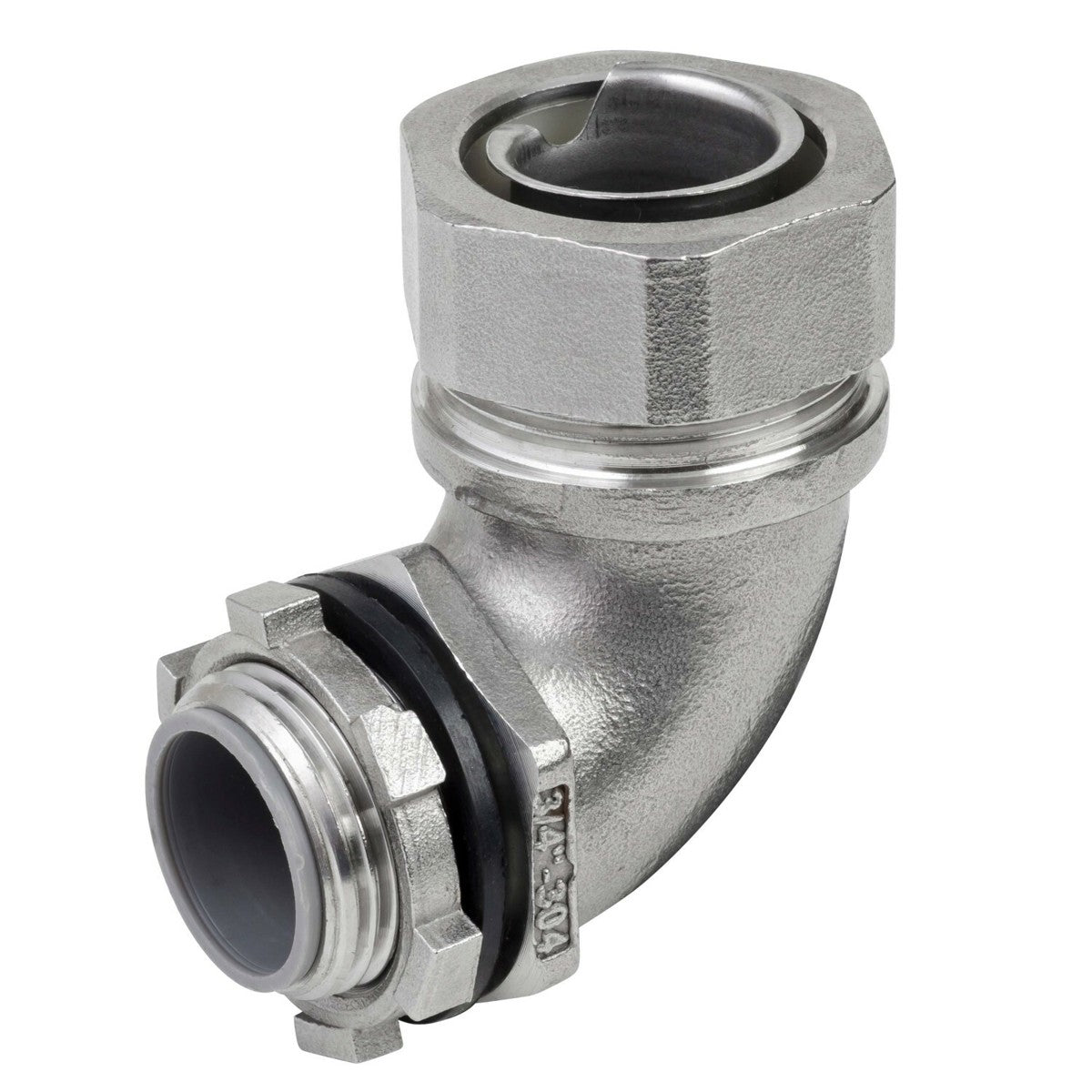

Calbrite S61000FC90 1 Inch Stainless Steel Flexible Connector

Product Description

The CALBRITE S61000FC90 is a 1 inch stainless steel flexible connector. Manufactured in type 316 stainless steel for increased corrosion resistance, it offers excellent strength and durability. Polished with a standard brite finish, it enhances corrosion resistance and appearance. It connects stainless flexible conduit to other fittings.

• Manufactured in type 316 stainless steel for increased corrosion resistance
• Excellent strength and durability
• Polished with standard brite finish to increase corrosion resistance and aesthetic appearance

Product Highlights

This stainless steel flex connector is compatible with Calbrite's bare, PVC, and clear-coated flex conduit. It includes a neoprene O-ring and type 316 stainless steel locknut.

Product Information

Standard Information

• Brand: CALBRITE
• Manufacturer Part Number: S61000FC90
• Country of Origin: Multiple

Technical Specifications

• Size: 1 in
• Type: Stainless Steel Flex Connector
• Brand: Calbrite
• Width: 1.860 in
• Height: 3 Inch
• Length: 2.8 Inch
• Material: Stainless Steel
• Applications: Used to connect stainless flexible conduit to other fittings
• Temperature Rating: 1700 degrees F
• Catalog Number: S61000FC90
• Manufacturer: ATKORE - CALBRITE
• Finish: #4 Polished Finish
• Standard: UL514B, ANSI
• UPC: 847656005856
• GTIN: 00847656005856
• Item Type: Flex
• Trade Size: 1 in
• Weight: 0.7 lb
• NPT Size: 1"
• Insulated: Yes
• Standards: NEMA 4X
• Conduit Size: 1"
• For Use With: Flexible Metal Conduit
• Knockout Size: 1"
• Box Connection: 1 in MNPT
• Connector Style: 90 Degrees
• Insulation Type: Internal
• For Conduit Type: Stainless Flexible Conduit
• Style - Connector: 90 Degrees
• Conduit Fitting Type: Connector
• Fitting Sub-Category: Elbows
• Cable Clamping Method: Compression Nut
• Resistance Properties: Corrosion Resistant
• Connection Orientation: 90 Degrees
• Connector Style - Broad: 90 Degrees Elbow
• Material - Cable Connector: 316 Stainless Steel
• Compatible Knockout Trade Size: 1 in
• Item - Building Cable Connector: Metallic Sheath Cable Connector
• Use With - Metallic Building Cable: Bare and Coated Stainless Steel Flexible Conduit
• Trade Size - Metallic Building Cable Connector: 1 in
• Part Width (in): 1.8
• Part Height (in): 2.85
• Part Length (in): 2.85
• Fitting Type: Connector
• Threads 1: NPT
• Material Type: Stainless Steel - 316
• Surface Finish: #4 Polished Finish
• Oil Resistant: true
• Diameter: 1 in
