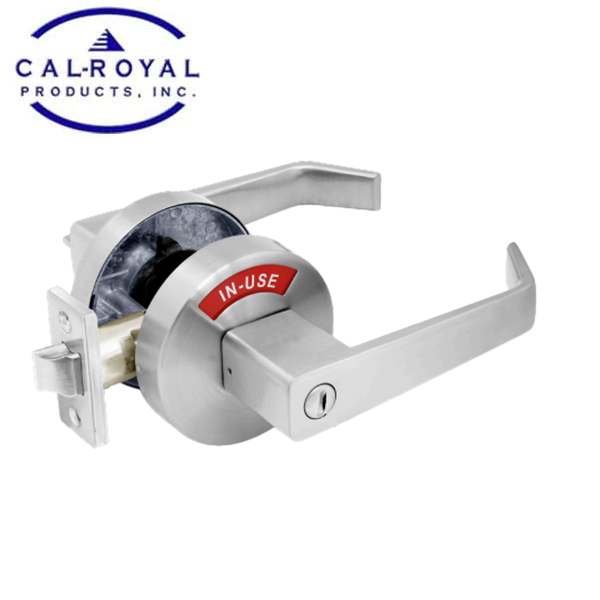

Cal Royal INDLEV-20 26D Privacy Indicator Leverset

Product Description

The CAL ROYAL INDLEV-20 26D is a privacy indicator lever lock with a 2-3/8" or 2-3/4" backset and ASA strike. It features a US26D satin chrome finish and is commercial grade. Designed for offices, schools, hospitals, commercial, and public buildings, it is suitable for single stall public restrooms.

• BHMA Grade 1
• Reversible Handing for LH or RH doors
• Red (In-Use) and Green (Vacant) Indicator

Product Highlights

This commercial grade leverset features a privacy indicator and is available in architectural finishes.

Product Information

Standard Information

• Brand: CAL ROYAL
• Manufacturer Part Number: INDLEV-20 26D
• Country of Origin: United States

Technical Specifications

• Alternate Part Number-1: 172932
• Finish: Satin Chrome
• Grade: BHMA Grade 1
• Backset: 2-3/8 Inch or 2-3/4 Inch
• Handing: Reversible
• Color Code: 626/US26D
• Function: 20-Privacy
• Handle Type: Lever
• Door Thickness: 1-3/8" to 1-3/4"
• Rose Diameter: 3-1/8 Inch
• Strike: ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
• Finish Description: Satin Chrome
• ANSI Function: F76
• Strike Type: ASA Strike
• ADA Compliant: YES
• Finish Family: Satin Chrome
• Rose/Escutcheon Trim: Round Rose
• Function Description: Indicator in Rose. It has an emergency slot on the outside trim to unlock the door in case of emergency.
• Front Size: 2-1/4" x 1" or 1-1/8"
• Function Family: Privacy/Bedroom/Bathroom
• Product Type: Cylindrical Lock
• Series: INDLEV-20 Series
• Number of Pins: 6
• Manufacturer Parent: Cal Royal Products
• Lever Style Family: Straight Return Lever
• Sub-Series: Cal-Roy-INDLEV-20
• Door Handing: Reversible for LH or RH doors
• Door Thickness Range: Adjustable 1-3/8" to 1-3/4"
• Indicator: Red (In-Use) and Green (Vacant)
• Finishes: 626-Satin Chrome
• Trim Hardware: Stainless steel rose cover, aluminum lever
• Brand: Cal Royal
• Material: Metal
• Handle Style: Lever
• Weight: 2.5 lb
• SKU: INDLEV-20-26D
• Door Ranges: 1 15/16 to 1 3/4 door thickness
• Backset Dimension: Packed Standard with both 2 3/8 and 2 3/4 Backset
• Latch Faceplate: Standard 2 1/4 x 2 packed with plastic filler to convert 1" faceplate to 1 1/8 wide door preparations
• Bore Diameter: 1" for latch, 2 1/8 for lock housing.
• Emergency Slot: It has an emergency slot on the outside trim to unlock the door in case of emergency
