CADWELD XLVVR2QS Exolon Mold, Cable to Steel

Product Description

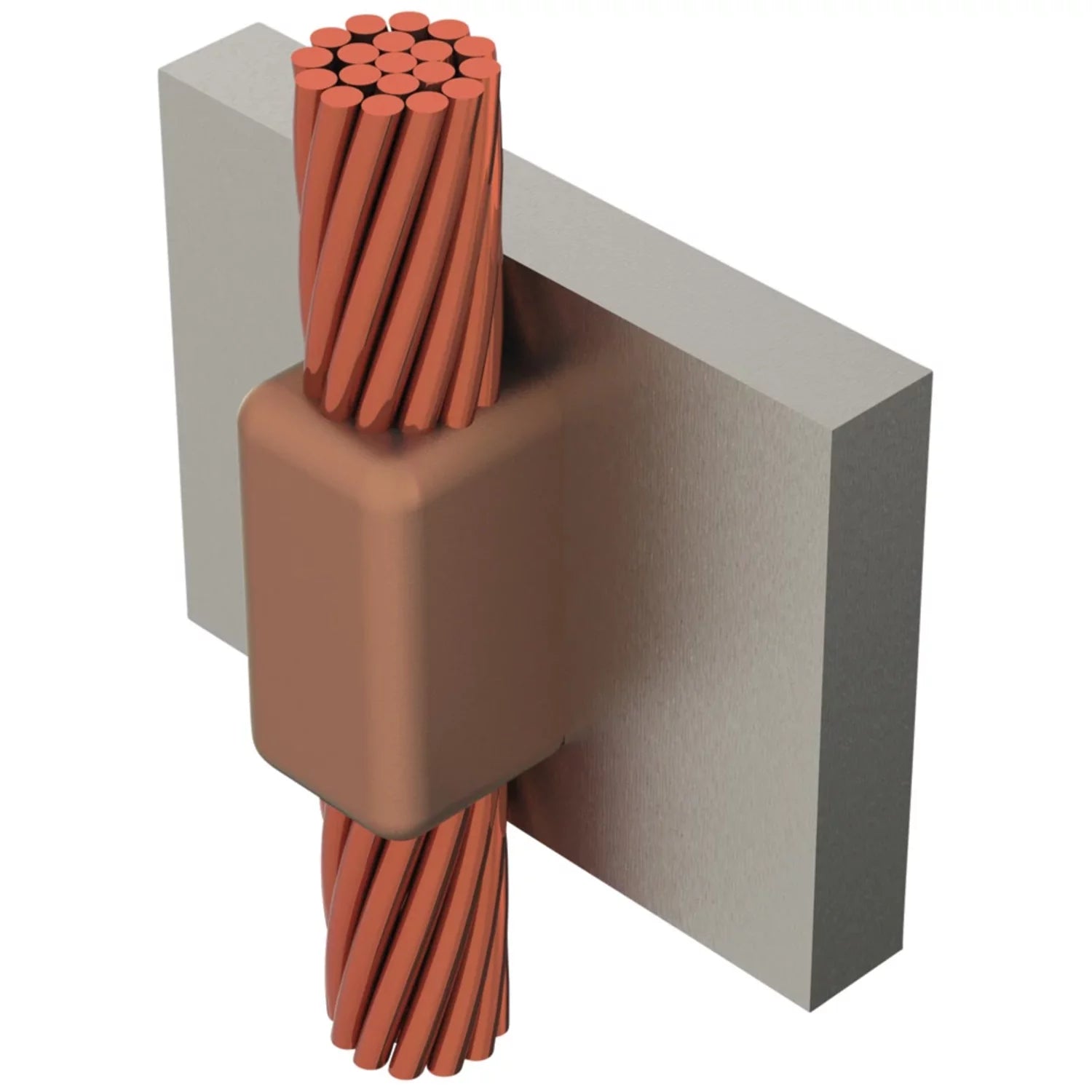

The CADWELD XLVVR2QS is an Exolon mold for making welded electrical connections between a cable and a steel surface, such as a steel pipe or flat surface. This mold is compatible with a 4/0 concentric cable. It enables a vertical split connection and requires specific welding materials and tools sold separately, including XL250 welding material, handle clamps L160 and B396, and baffle assembly XLB972A1. The mold is suitable for pipe sizes starting at twenty-four inches.

• Forms a permanent, low-resistance connection.
• Provides a strong molecular bond.
• Rated for the same current capacity as the conductor.

Product Highlights

This mold ensures reliable connections for electrical applications in various industrial settings.

Product Information

Standard Information

• Brand: CADWELD
• MPN: XLVVR2QS

Technical Specifications

• Mold Family: VV
• Connects To: Steel Pipe or Flat Surface
• Conductor Size: 4/0 Concentric
• Conductor Outer Diameter: 13.41mm
• Pipe Size Range: 24 Min
• Outer Diameter (OD): 609.6 mm Min
• NB/DN: 600 Min
• Mold Split: Vertical
