CADWELD SBB200CLH Cable to Rail Web Mold

Product Description

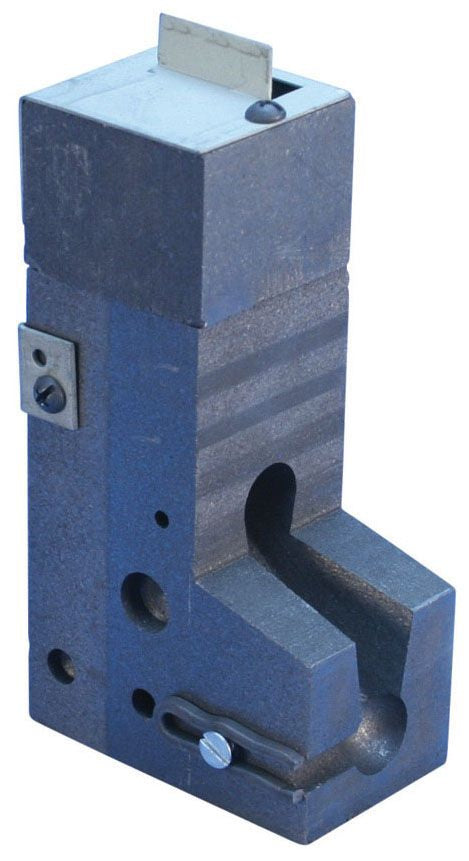

The CADWELD SBB200CLH is a graphite mold used to install track circuits and jumper bonds to rail tracks. This mold works with 85 lb to 141 lb T-Rail sections and is compatible with a three-sixteenth bondstrand conductor featuring a one tab bond terminal. It is specifically designed for left-hand orientation and is meant for use with certain types of welders.

• Designed for cable to web of rail connections.
• Accommodates three-sixteenth bondstrand conductors.
• Features one tab bond terminal style.

Product Highlights

This mold is essential for connecting cables to rail webs effectively. It ensures compatibility with various rail standards and enhances the efficiency of welding processes.

Product Information

Standard Information

• Manufacturer Part Number: SBB200CLH
• Material: Graphite

Technical Specifications

• Rail Type: 85 lb to 141 lb T-Rail Sections
• Bond Terminal Style: 1 Tab
• Conductor Size: 3/16 Bondstrand
• Conductor Outer Diameter, Nominal: 0.19
• Welder Style: TB5; T21
• Orientation: Left Hand
• Mold Only: Yes
• UPC: 782856200697
• EAN: 0782856200697
• Standard Packaging Quantity: 1
• Packing Quantity: 1
