CADWELD PCT1V1H Cable to Cable Connection

Product Description

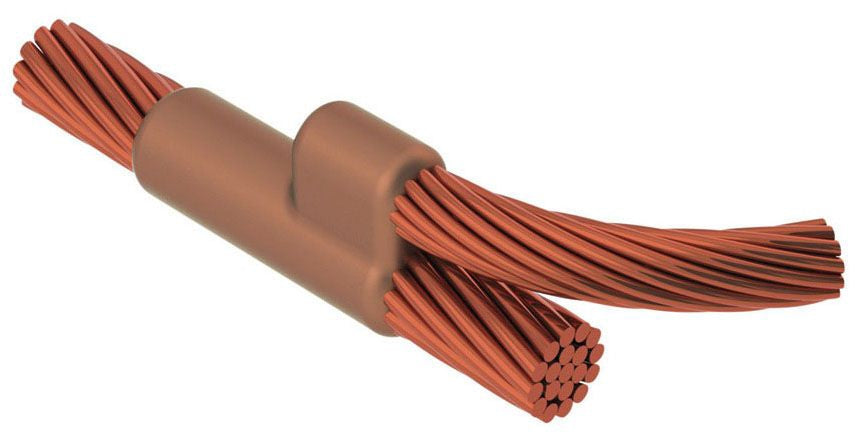

The CADWELD PCT1V1H is a mold designed for connecting cables effectively. This graphite mold creates a durable connection between a #2 Concentric cable with an outer diameter of zero point two nine two inches and a #6 Concentric cable with an outer diameter of zero point one eight four inches. The weld produced is permanent. Please note that welding material must be purchased separately.

• Forms a permanent, low resistance connection
• Creates a molecular bond between cables
• Connections are visually inspectable

Product Highlights

This mold is ideal for creating reliable and low resistance connections.

Product Information

Standard Information

• Mold Family: PC
• Conductor 1: #2 Concentric
• Conductor 1 Outer Diameter, Nominal: 0.292 inches
• Conductor 2: #6 Concentric
• Conductor 2 Outer Diameter, Nominal: 0.184 inches

Technical Specifications

• Mold Split: Vertical
• Split Crucible: No
• Wear Plates: No
• Mold Only: No
• Welding Material: 32 or 32PLUSF20, sold separately
• Handle Clamp: Mini EZ Attached
• Ease of Use: Preferred
• UPC: 782856547396
