CADWELD GTC181T Cable to Ground Rod Mold

Product Description

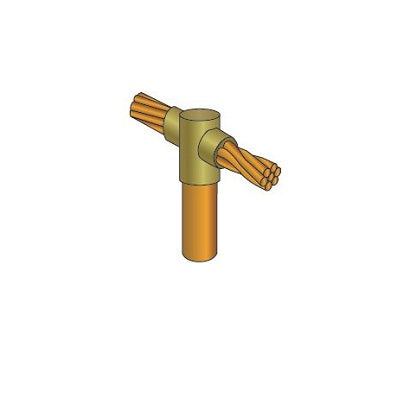

The CADWELD GTC181T is a graphite mold used for making strong connections between a cable and a ground rod. This mold works with copper clad, galvanized, stainless clad, or stainless steel ground rods. It accommodates a #2 solid conductor and a three-quarters inch ground rod.

• Forms a permanent connection
• Provides a molecular bond
• Connections can be visually inspected

Product Highlights

This mold is designed to create a low resistance connection that matches the current capacity of the conductor. Proper use of this mold requires a handle clamp L160 and weld metal, both sold separately.

Product Information

Standard Information

• Part Number: GTC-181T
• Mold Family: GT

Technical Specifications

• Ground Rod Size: 3/4 inch
• Ground Rod Diameter, Nominal: 3/4
• Ground Rod Diameter, Actual: 0.68
• Ground Rod Type: Copper-bonded
• Cable Size: 2 SOL
• Conductor Size: #2 Solid
• Conductor Outer Diameter, Nominal: 0.26
• Material: Copper Clad
• Type: Plain
• Weld Metal Number: 90
• Cadweld Plus Weld Number: 90PLUSF20
• Welding Material: 90 or 90PLUSF20 (Sold Separately)
• Handle Clamp: L160 (Sold Separately)
• Product Class: BK
• Units Per Package: 1
• Mold Split: Vertical
• Kit: No
• Weight: 3.60
