CADWELD CAVST1L Cable to Metal Surface Connection

Product Description

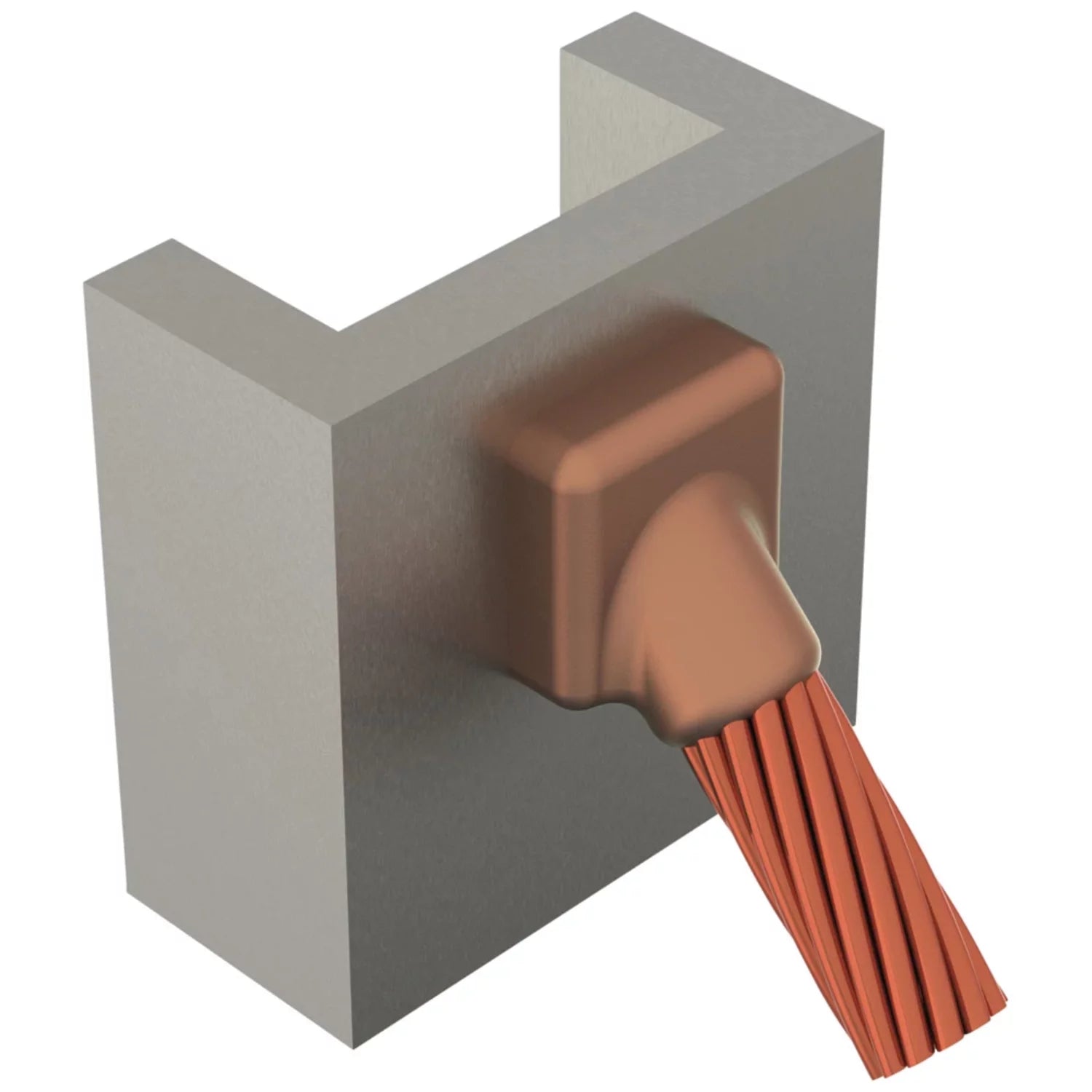

The CADWELD CAVST1L is suitable for creating exothermic welded connections from a cable to a metal surface. This solution is commonly utilized in cathodic protection systems, ensuring reliable bonding of anode leads to steel or cast iron pipes, tanks, and similar structures.

• Establishes a permanent, low resistance connection.
• Creates a molecular bond for added reliability.
• Rated for the same current capacity as the conductor.

Product Highlights

This product is designed for efficient and durable connections in various industrial applications.

Product Information

Standard Information

• Brand: CADWELD
• MPN: CAVST1L

Technical Specifications

• Mold Family: VS
• Connects To: Steel Pipe or Flat Surface
• Conductor Size: #4 Concentric
• Conductor Outer Diameter (Nominal): 0.23 inches
• Pipe Size Range: 24 Min
• Outer Diameter: 24 Min
• Mold Split: Vertical
• Split Crucible: No
• Wear Plates: No
• Mold Only: No
• Welding Material: CA25 or CA25PLUSF33, Sold Separately

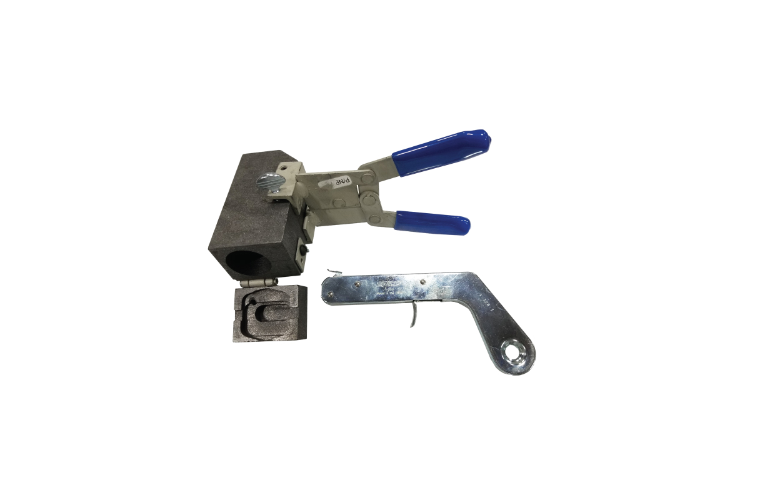

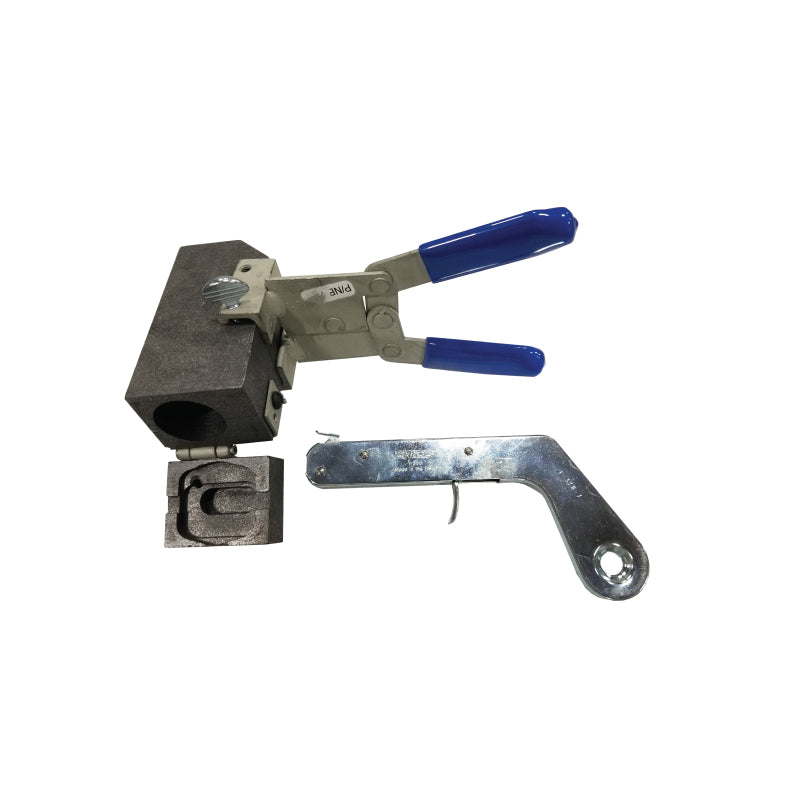

• Handle Clamp: Mini EZ Attached and B399AM, Sold Separately
• UPC: 782856532903
• EAN: 0782856532903
• Standard Packaging Quantity: 1
• Packing Quantity: 1
