Caddy GT1161VPLUS ONE SHOT CERAMIC DISPOSA

Product Description

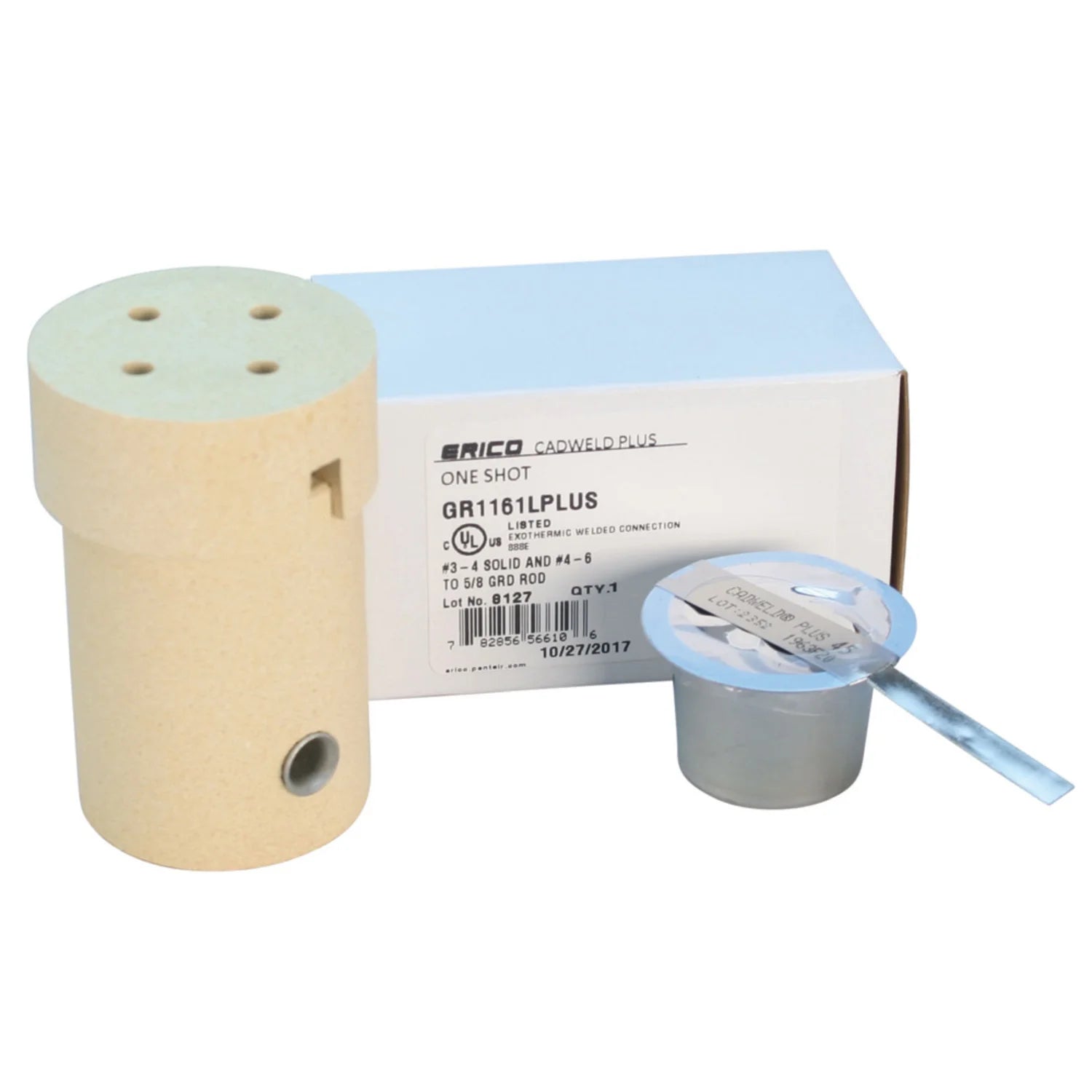

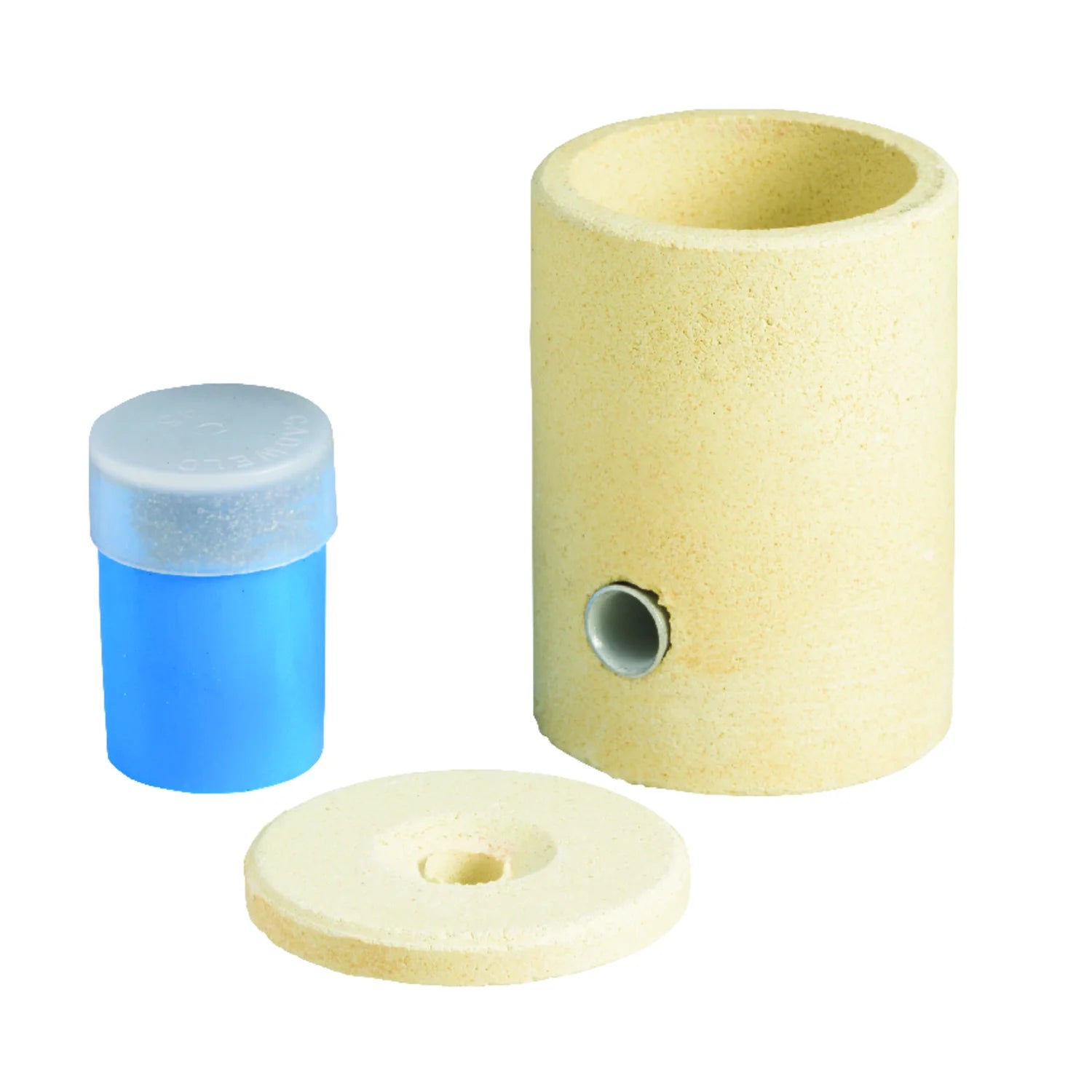

The CADDY GT1161VPLUS ONE SHOT CERAMIC DISPOSA is a single-use ceramic mold that eliminates the need for a graphite mold and handle clamp. It produces a permanent connection that will not loosen or corrode. This product fits plain copper-bonded, threaded copper-bonded, full-size galvanized and stainless steel ground rods and is NEC compliant.

• Single use ceramic mold which eliminates the need for a graphite mold and handle clamp/frame
• Produces a permanent connection that will not loosen or corrode
• Fits plain copper-bonded, threaded copper-bonded, full-size galvanized and stainless steel ground rods

Product Highlights

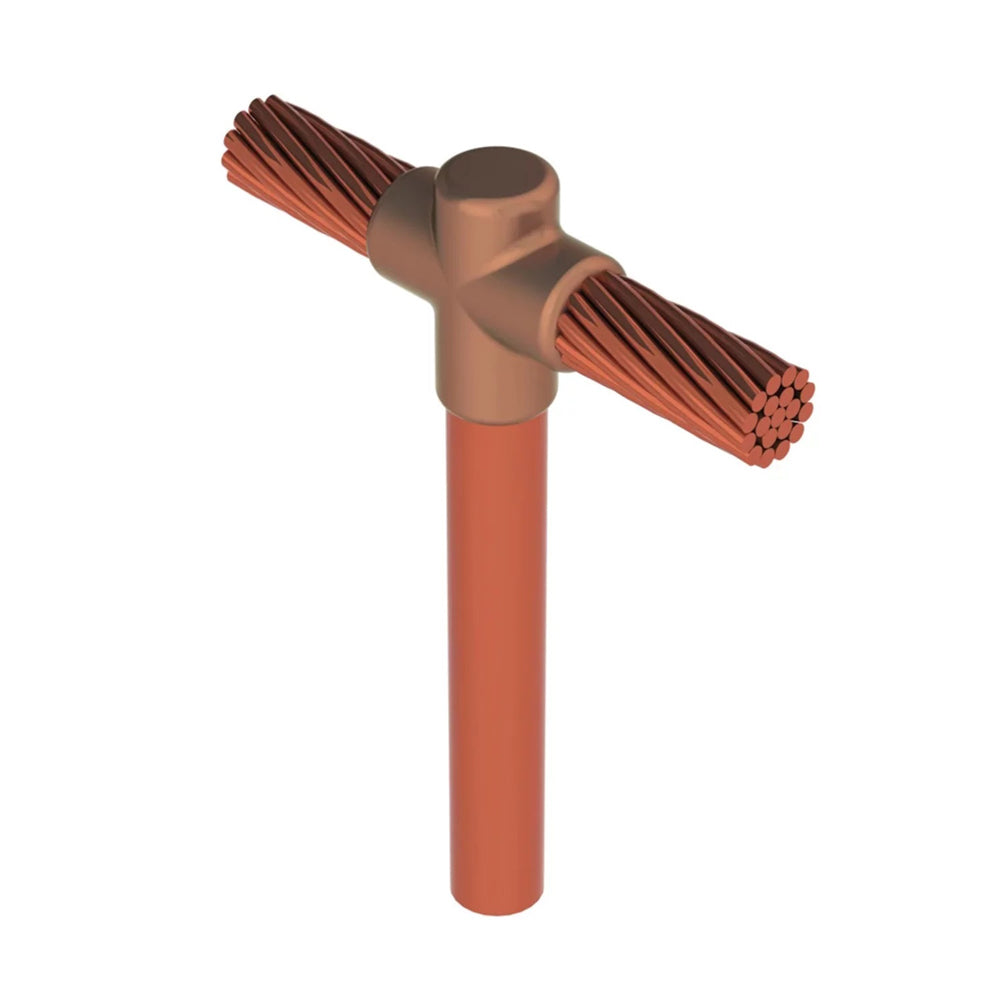

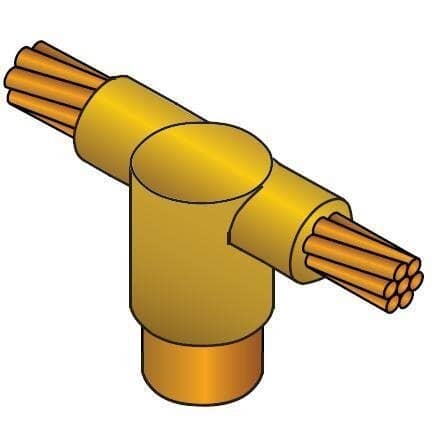

Forms a permanent, low-resistance connection with the same current capacity as the conductor. Easy to train installers and connections can be visually inspected for quality assurance.

Product Information

Standard Information

• Brand: CADDY
• Manufacturer Part Number: GT1161VPLUS

Technical Specifications

• Welding Material Type: nVent ERICO Cadweld Plus
• Mold Family: GT (ONE SHOT)
• Ground Rod Diameter, Nominal: 5/8"
• Ground Rod Diameter, Actual (Ø): 0.560" - 0.64"
• Connection, Solid: #2;#1
• Connection, Stranded: #3;#2
• Mold Split: None
• Number of Wear Plate Sets: 0
• Type: GT (ONE SHOT)
• Rod Size: 5/8"
• Standard: cUL, UL
