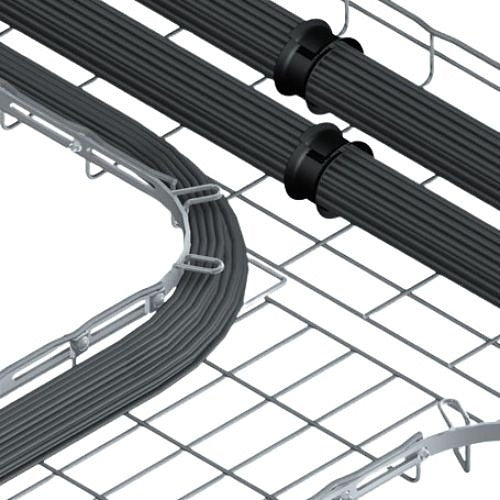

Cablofil Inc RADT90KIT4BL Radius 90 Degree Tray Fitting 4 in

Product Description

The CABLOFIL INC RADT90KIT4BL is a radius 90-degree fitting kit designed for wire mesh cable tray systems. It accommodates both T-intersections and standard 90-degree turns in a single kit, giving installers flexibility when routing cable tray runs through corners or branching pathways. The fitting is sized for 4-inch deep tray sections. Electricians and low-voltage installers use this fitting to maintain smooth, code-compliant transitions in wire management systems, reducing stress on cables at directional changes. Sold as one kit per unit.

This fitting is suited for commercial and industrial electrical installations where wire mesh cable tray is used to route power, data, or low-voltage cabling. It is typically installed during rough-in or above-ceiling work on new construction or retrofit projects. The radius design allows cables to follow a gradual curve rather than a sharp bend, which is particularly important for fiber optic and Category cabling with minimum bend radius requirements.

Key Features

• Radius 90-degree geometry supports smooth cable transitions without tight bends
• Kit accommodates T-intersection or standard 90-degree turn configurations
• 4-inch tray depth matches standard deep-profile wire mesh tray sections
• Single-unit kit simplifies ordering and inventory for fitting-out tray runs
• Wire mesh construction maintains airflow and visibility of installed cables

Compatibility

Designed as an OEM-style fitting for 4-inch deep wire mesh cable tray systems. Specific model compatibility should be confirmed against the manufacturer's tray series documentation prior to installation.

Installation Notes

Installation is typically performed by licensed electricians or low-voltage cabling technicians. De-energize all circuits in the tray run before working in the area, per NFPA 70 (NEC) requirements. Secure the fitting to adjacent tray sections using the appropriate splice connectors and hardware specified for the tray system. Do not exceed the tray's rated fill capacity when routing cables through the fitting.
