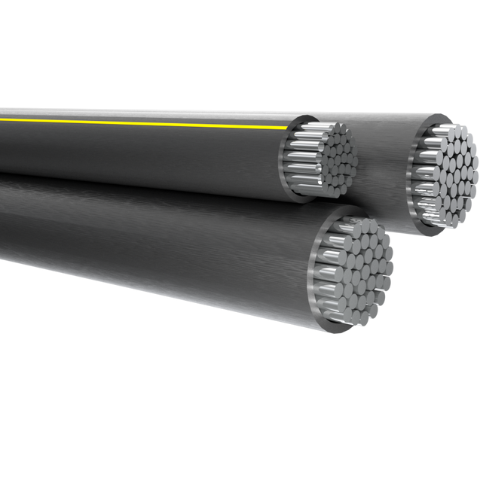

CABLE 250-250-3/0 Aluminum URD Cable

Product Description

The CABLE 250-250-3/0 is an aluminum underground rated (URD) cable designed for single-phase secondary power distribution. This cable is made with aluminum conductors and XLPE insulation, providing durability for outdoor applications.

• Underground rated for safe electrical systems.
• XLPE insulation offers resistance to moisture and heat.
• Triplex configuration with two phase conductors and one neutral conductor.

Product Highlights

Reliable for direct burial or duct installation, suitable for various electrical setups.

Product Information

Standard Information

• MPN: 250-250-3/0
• Conductor Material: Aluminum

Technical Specifications

• Application: Underground Rated (URD)
• Voltage Rating: 600V
• Phase: Single-Phase
• Conductor Size AWG: 250
• Neutral Size AWG: 3/0
• Stranding: 37
• Insulation Thickness: 95 mils
• Conductor Diameter: 0.748 inches
• Outer Diameter: 1.538 inches
• Weight: 893 lbs/1000ft
• Ampacity Direct Burial: 345 Amps
• Ampacity In Duct: 265 Amps
• Maximum Operating Temperature: 90°C
