C&D Valve CD5516/6 Braze-On Self-Piercing Copper Saddle Valve 5/16 inch OD tube 6 pack

Product Description

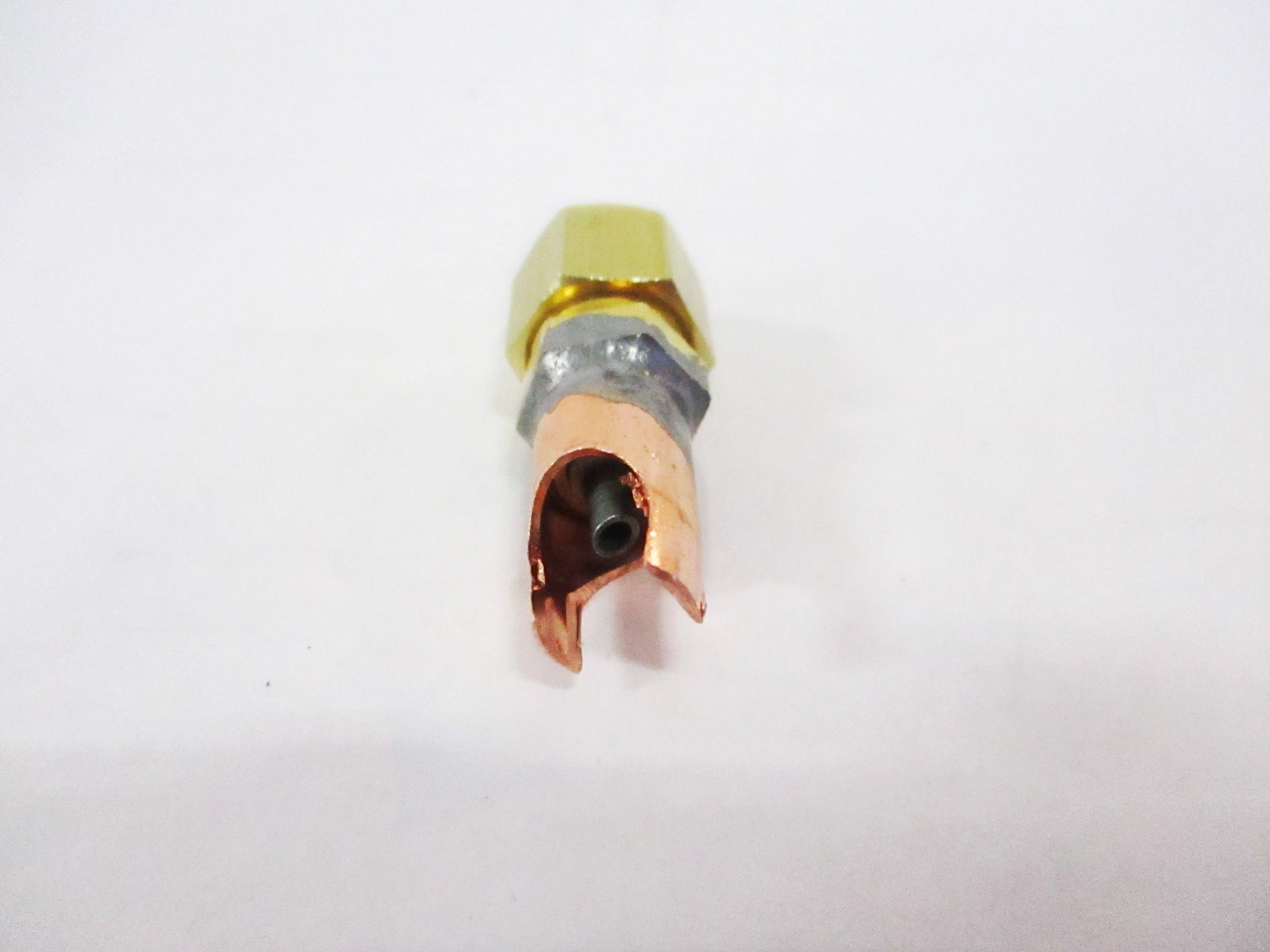

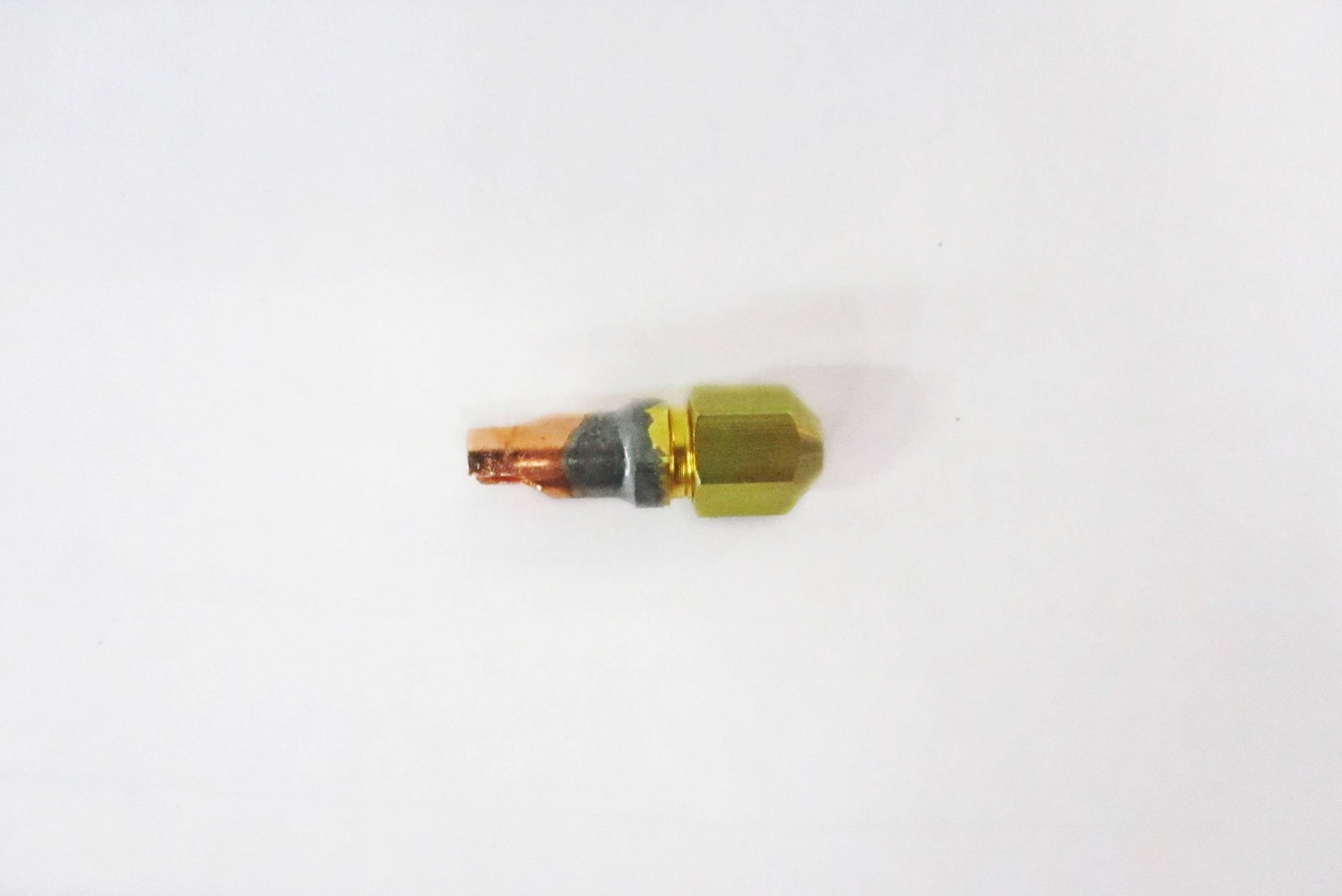

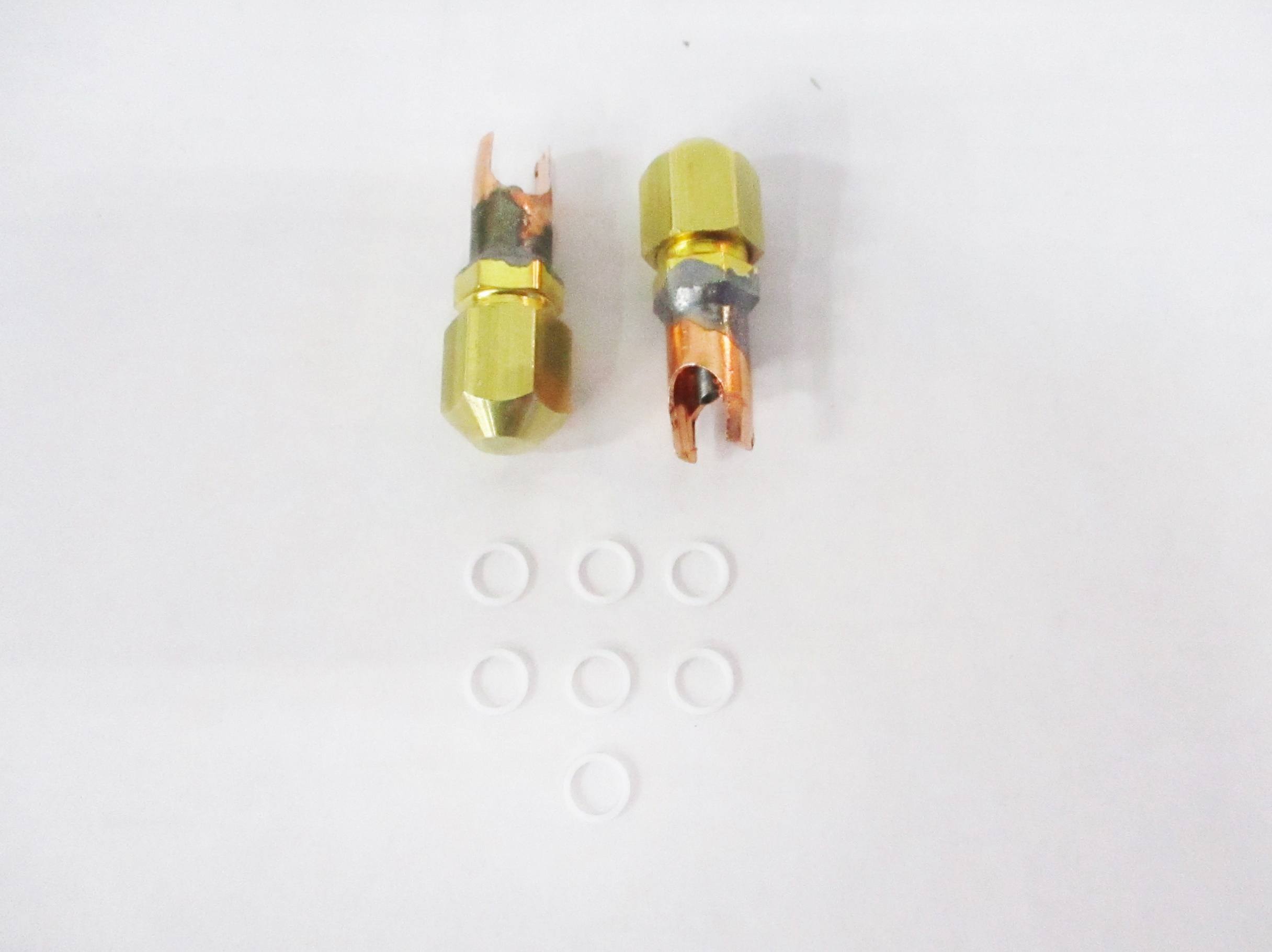

The C&D VALVE CD5516/6 is a braze-on self-piercing copper saddle valve designed for 5/16 inch OD tubes. This M-series valve is installed on charged lines by brazing the saddle portion onto the line. A steel pin with a valve core penetrates the line and is secured by tightening the cap, providing a copper-to-copper connection. It is constructed from copper.

• First and best braze-on, self-piercing copper saddle valve.
• Easily installed on a charged line.

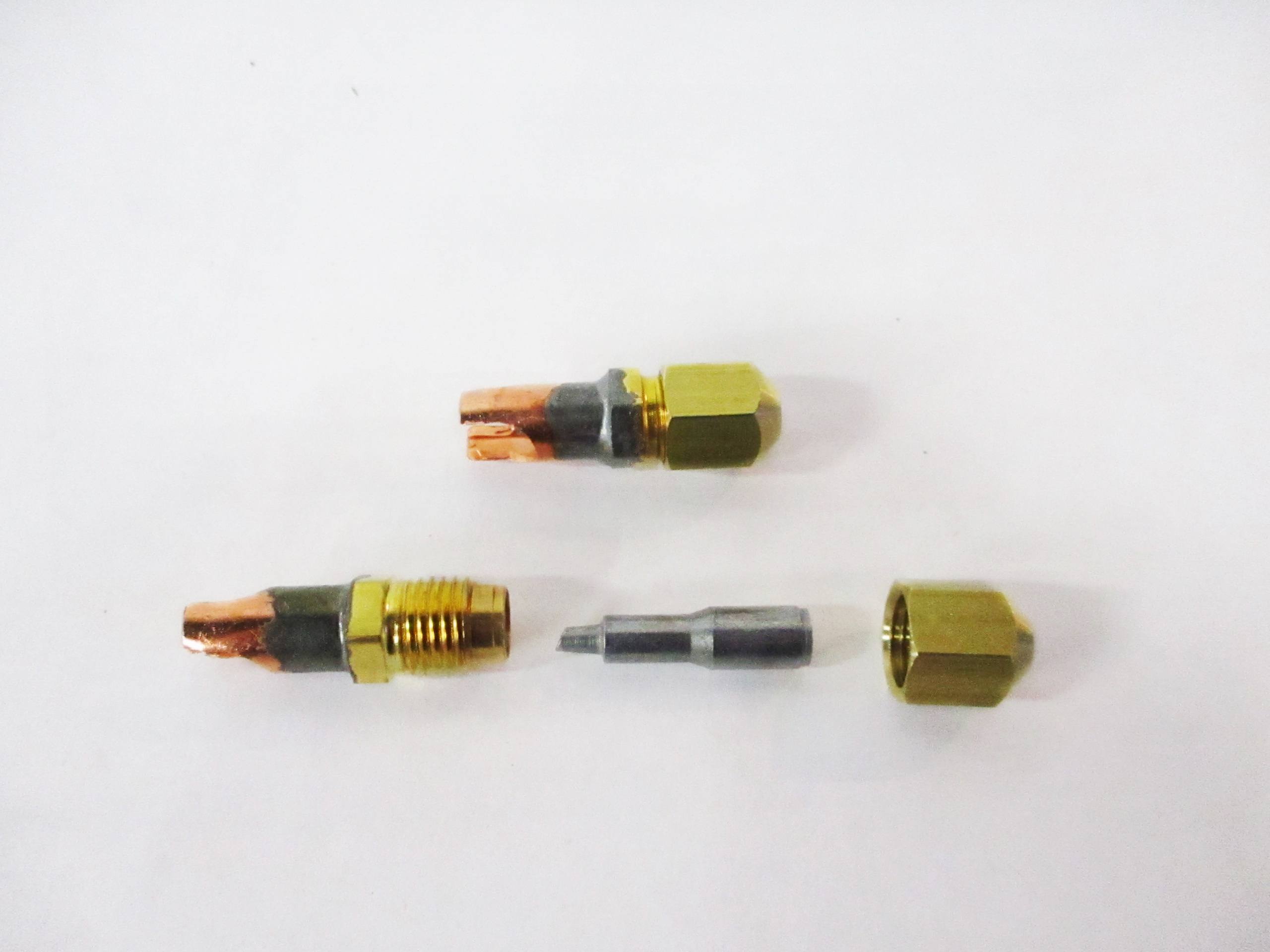

• Steel pin with valve core penetrates the line and locks into place by tightening the cap.

Product Highlights

Braze-on self-piercing copper saddle valve for 5/16 inch OD tube, designed for easy installation on charged lines.

Product Information

Standard Information

• Brand: C&D VALVE
• Manufacturer Part Number: CD5516/6
• Country of Origin: China

Technical Specifications

• Product Type: Saddle Valve
• Tube OD: 5/16 inch
• Material: Copper
• Connection Type: Copper-to-Copper
