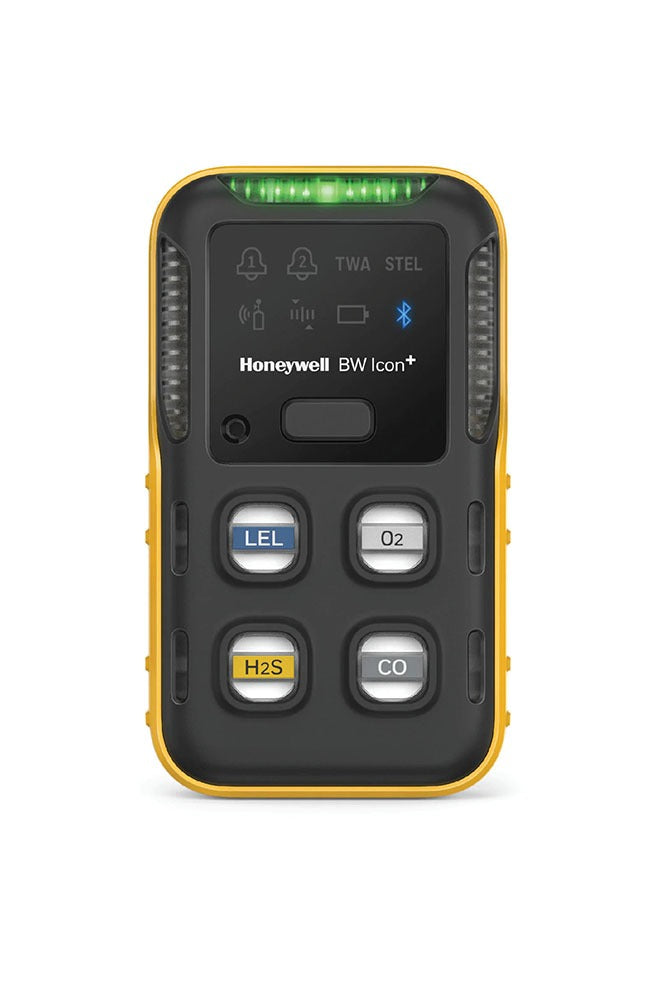

Bw Technologies cp-i-w5x1h1m1-y-00 Multi-gas Detector

Product Description

The BW TECHNOLOGIES cp-i-w5x1h1m1-y-00 is a serviceable four-gas portable detector configured to monitor percent LEL (infrared), O2, H2S, and CO in a single yellow-housing unit. Designed for industrial and confined-space environments, the detector uses an icon-based display that removes the need for workers to interpret live gas concentration readings. When a gas alarm triggers, a bell icon and a sensor-specific indicator illuminate simultaneously, allowing fast area evacuation. Intelligent i-Series sensors track remaining sensor life and calibration status, supporting predictive maintenance workflows. The unit is rated IP66 and IP68, making it suitable for harsh field conditions. Licensed safety professionals and industrial hygienists are the primary users of this device.

The cp-i-w5x1h1m1-y-00 is used in residential, commercial, and industrial applications wherever atmospheric hazard monitoring is required — including confined-space entry, oil and gas worksites, utilities, and construction. The icon display reduces training time on the floor. Bluetooth Low Energy (BLE) connectivity pairs the detector with the Honeywell Safety Suite Device Configurator app or the Safety Communicator app, allowing supervisors and safety managers to pull full gas concentration data, alarm reports, and device status directly from a smartphone without interrupting field operations.

Key Features

• Monitors four gases simultaneously: percent LEL (NDIR infrared), O2, H2S, and CO
• Icon-only display with bell alarm indicator and per-sensor alert — no interpretation of live concentration values required by workers
• i-Series intelligent sensors report remaining sensor life and calibration due dates for predictive maintenance
• Bluetooth Low Energy (BLE) connectivity for use with Honeywell Safety Suite Device Configurator and Safety Communicator apps
• IP66 and IP68 ingress protection rated for wet and dusty environments
• Audible alarm at 95 dB, plus visual and vibrating alerts; supports Low, High, TWA, STEL, Negative Drift, Over Limit, and Multi-alarm modes
• Two-year warranty covering both sensors and detector body

Compatibility

The cp-i-w5x1h1m1-y-00 is compatible with Honeywell Safety Suite Device Configurator software and the Honeywell Safety Communicator app via Bluetooth Low Energy pairing. Sensor configuration and alarm set point adjustments require the Device Configurator or Safety Suite Device Configurator software.

Installation Notes

This detector is worn or carried by the worker and does not require electrical wiring or hardwired installation. Attach using the included alligator clip or an optional Klick Fast stud mount. Before placing the unit in service, verify sensor calibration status and perform a bump test per the site safety program and applicable OSHA or CSA confined-space entry procedures. Do not attempt sensor replacement or service in a classified hazardous atmosphere.

Technical Specifications

• Monitored Gases: LEL (NDIR IR), O2, H2S, CO
• CO Measuring Range: 0 to 2000 ppm, 1 ppm resolution
• H2S Measuring Range: 0 to 200 ppm, 1 ppm resolution (configurable to 0.1 ppm)
• O2 Measuring Range: 0 to 30% VOL, 0.1% VOL resolution
• LEL (NDIR CH4) Measuring Range: 0 to 100% LEL, 1% LEL resolution
• Working Temperature: -40 degrees F to 140 degrees F
• Working Humidity: 5% to 95%
• Ingress Protection: IP66, IP68
• Dimensions (with Alligator Clip): 4.29 inches x 2.44 inches x 1.7 inches
• Dimensions (with Klick Fast Stud): 4.29 inches x 2.44 inches x 1.49 inches
• Weight (with Alligator Clip): 0.41 pounds
• Weight (with Klick Fast Stud): 0.37 pounds
• Audible Alarm: 95 dB
• Alarm Types: Visual, vibrating, audible; Low, High, TWA, STEL, Negative Drift, Over Limit, Multi-alarm
• Connectivity: Bluetooth Low Energy (BLE)
• Typical Battery Life: Two months (with NDIR CH4 sensor)
• Certifications: ATEX, IECEx, FCC ID, IC
• Warranty: Two years (sensors and detector)

Standard Information

• Brand: BW TECHNOLOGIES
• Manufacturer Part Number: cp-i-w5x1h1m1-y-00
