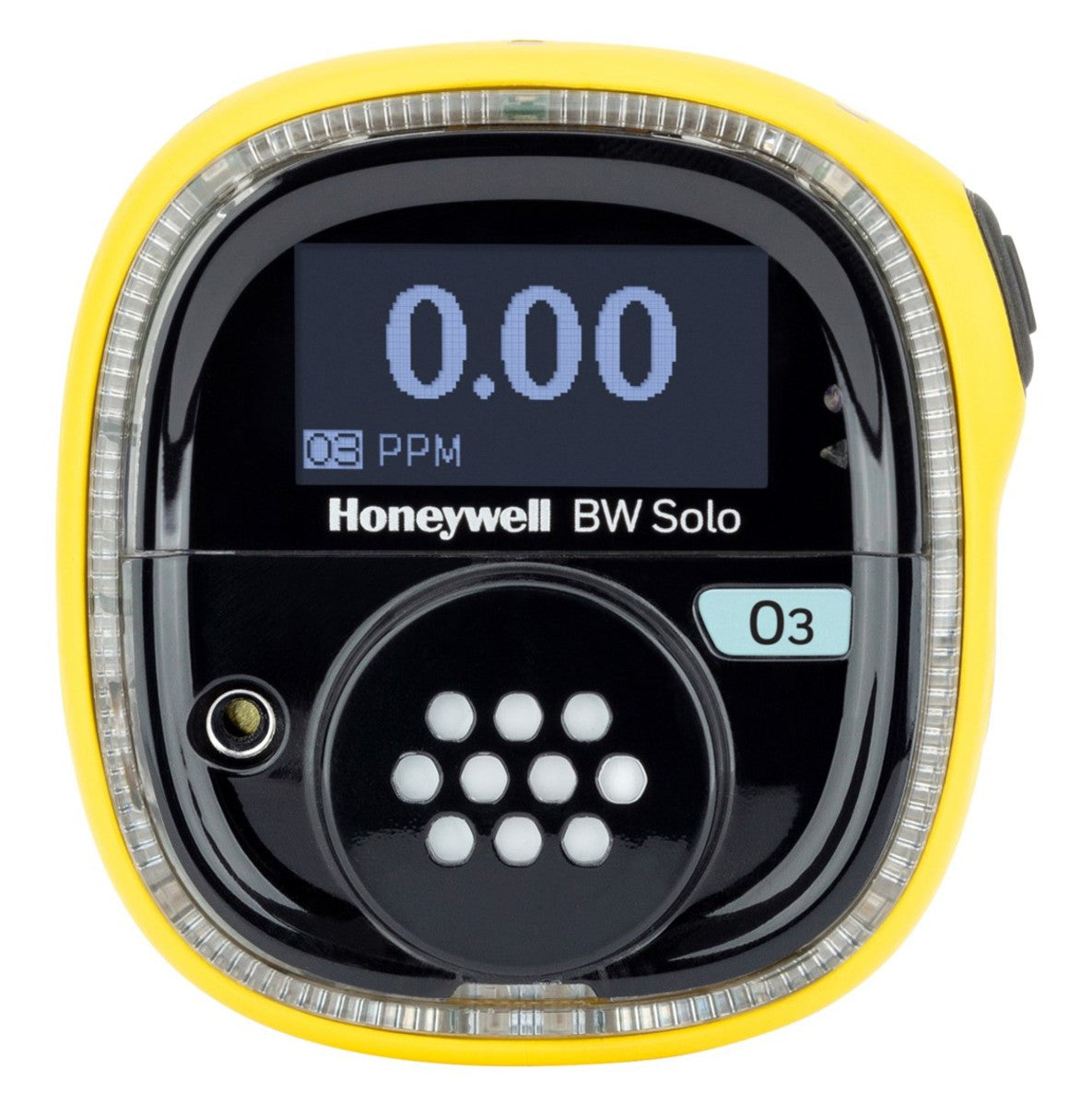

Bw Technologies BWS1-G-Y BW Solo Portable Ozone Monitor

Product Description

The BW TECHNOLOGIES BWS1-G-Y BW Solo is a wireless gas detector that measures Ozone (O3). It features user-friendly operation, an easy-to-read display for multiple languages, and lightweight convenience. This portable monitor has connected Bluetooth Low Energy (BLE) capabilities and is compatible with IntelliDoX. The device has a 0-1 ppm range and 0.01 ppm resolution.

• User-friendly operation
• Easy-to-read display for multiple languages
• Lightweight convenience

Product Highlights

Portable single gas monitor for Ozone detection with Bluetooth connectivity and compatibility with IntelliDoX.

Product Information

Standard Information

• Brand: BW TECHNOLOGIES
• Manufacturer Part Number: BWS1-G-Y
• Country of Origin: Mexico

Technical Specifications

• Gas To Be Measured: O3, Ozone
• Product Type: Single Gas Monitor
• Mobility: Portable
• Trade Name: Honeywell BW™ Solo
• Is FM: No
• Alarm Setting: High 0.2 ppm; Low 0.1 ppm
• IP Rating: IP68
• Brand & Series: HONEYWELL BW BW Solo
• Battery Chemistry: Lithium
• Replaceable Battery: Yes
• Visual Alert Type: Red
• Status Indicator: LED
• Sensor Type: Electrochemical
• Rechargeable Battery: No
• Sensor Life: 2 yr
• Power Source: Battery
• Interchangeable Sensors: No
• Display Screen Type: LCD Dot Matrix
• Includes: Concussion Proof Housing; Stainless Steel Alligator Clip; Test Cap with 1 ft of Hose
• Measurement Range: Ozone (0 to 1 ppm)
• Features: Compatible with Honeywell IntelliDoX; Complete with an Extensive Selection of Sensor Options; Connected Bluetooth Low Energy (BLE) Capabilities Quick Specs; Display for Multiple Languages; Serviceability; User-Friendly Operation
• Housing Color: Yellow
• Hazardous Location Specification: Class I Divisions 1; Zone 0 Groups IIC
• Gas Detected: Ozone
• Alert Type: Light; Sound; Vibration
• Compatible Systems & Services: Android; iOS
• Battery Life: 1 yr
• Communication Technology: Bluetooth
• Battery Size: 2/3 AA
• Data Logger: Yes
• For Location: Outdoor
• Temperature Code: T4
• Overall Depth: 1.4 in
• Resolution: 0.01 ppm
• Standards: ABS Type Approved 21-2143903-PDA; AEx/Ex ia IIC T4 Ga -40°C≤ Tamb ≤ 60°C; ATEX Sira 18ATEX2243; CE 2460 Ex II 1G Ex ia IIC T4 Ga, Ex I M1 Ex ia I Ma -40°C≤ Tamb ≤ 60°C; CSA Certified; FCC ID: SU3BWS1; IC:20969-BWS1; IECEX: IECEX SIR 18.0058 Ex ia IIC T4 Ga/Ex ia I Ma -40°C≤ Tamb ≤ 60°C; INMETRO: DNV 19.0109 Ex ia IIC T4 Ga -40°C≤ Ta ≤ 60°C; RED:RE-D Directive 2014/53/EU
• Resistance Properties: Dust Resistant; Water Resistant
• Overall Width: 2.6 in
• Overall Height: 2.7 in
• Operating Frequency: 2402 to 2480 MHz
• Operating Voltage: 3.6V
• Minimum Operating Humidity: 5 %
• Mounting Location: Portable/Handheld
• Mount Type: Portable/Handheld
• Minimum Operating Temperature: -40 °F
• Maximum Operating Temperature: 140 °F
• Maximum Operating Humidity: 95 %
• Display Type: Digital
• Alarm Setting Adjustment: Adjustable Alarm Setting
• Alarm Volume Level: 95 dB
• Series: BW Solo
• Sub-brand: Honeywell; BW Solo
• Manufacturer Part Number: BWS1-G-Y
• UNSPSC: 41113117
