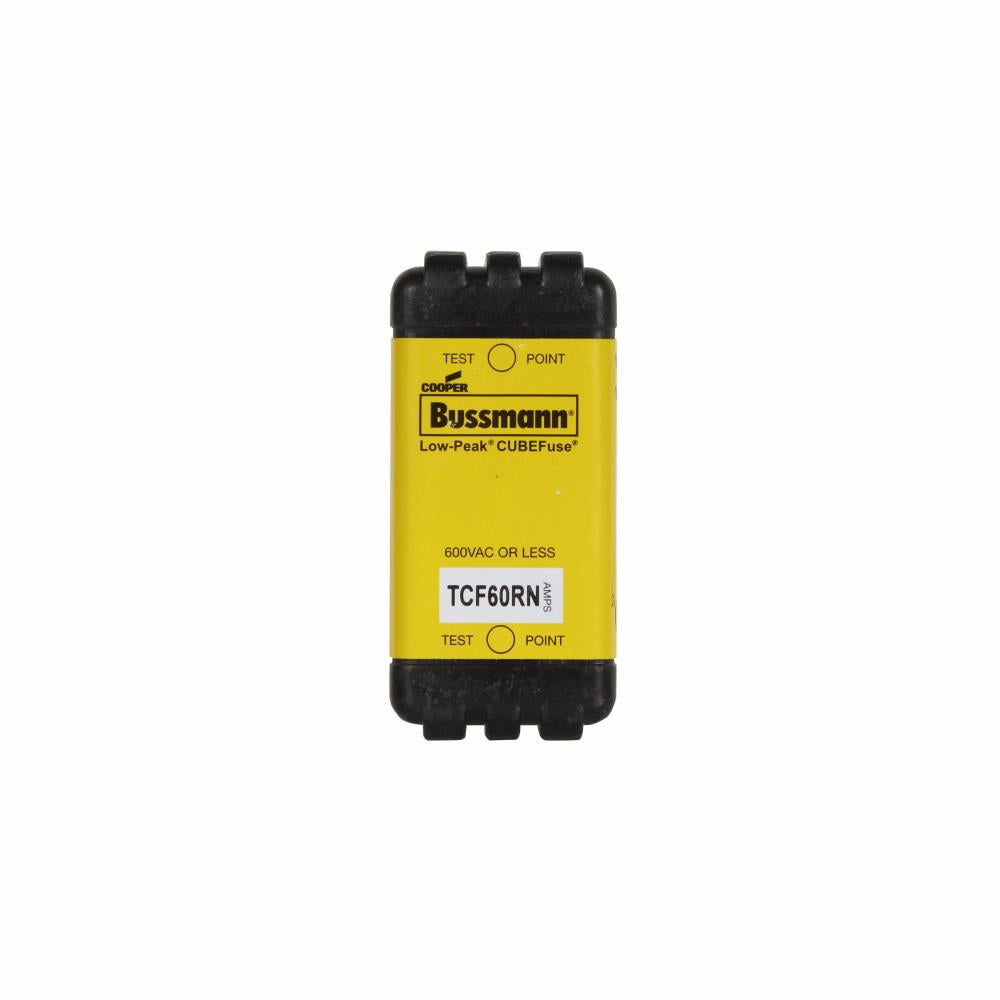

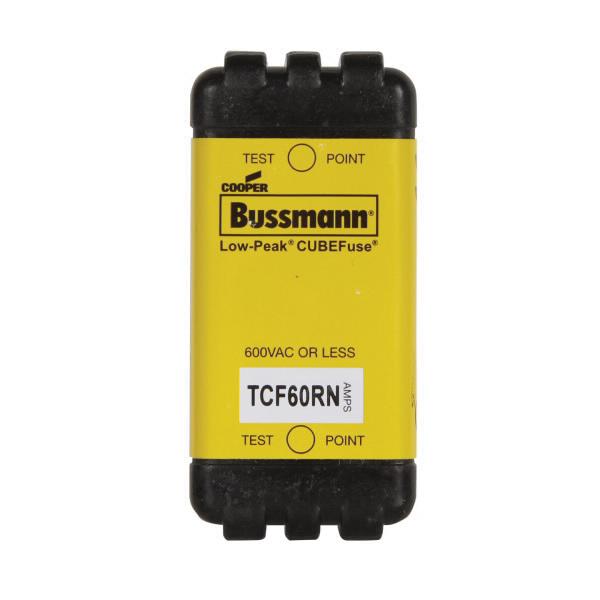

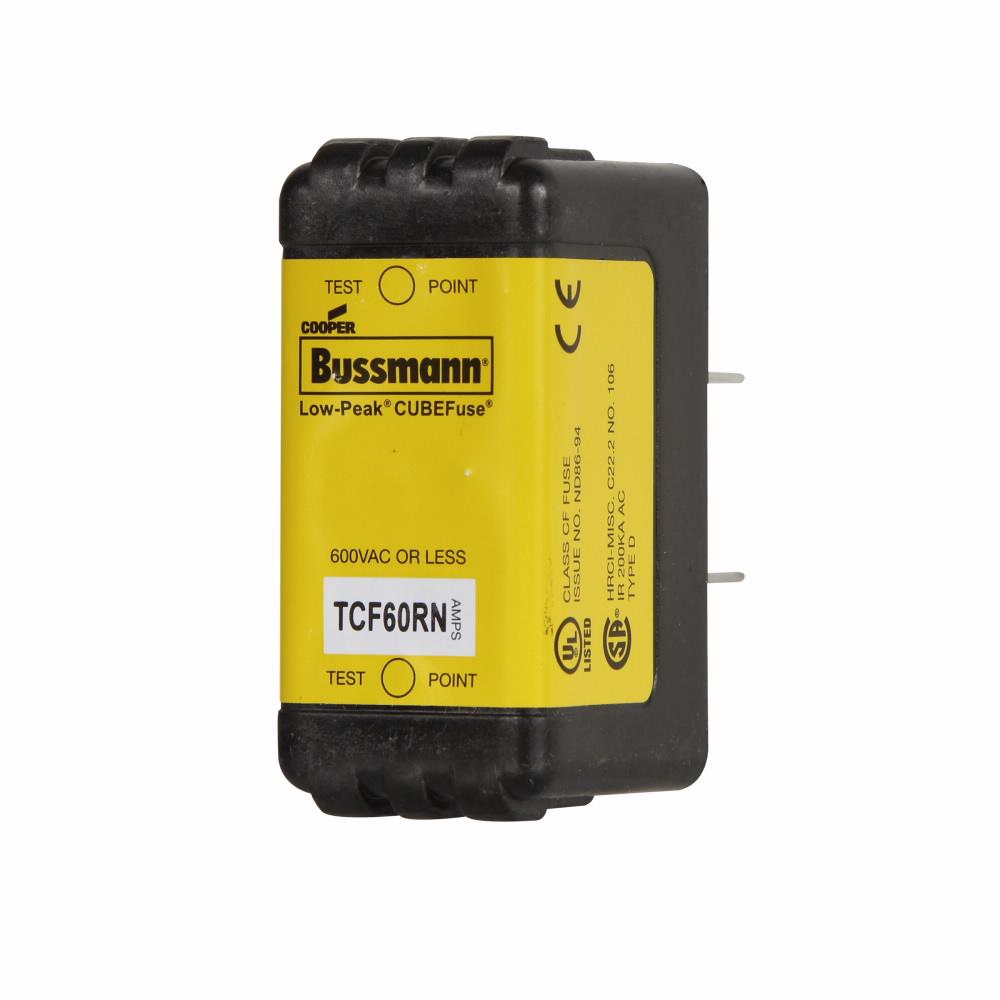

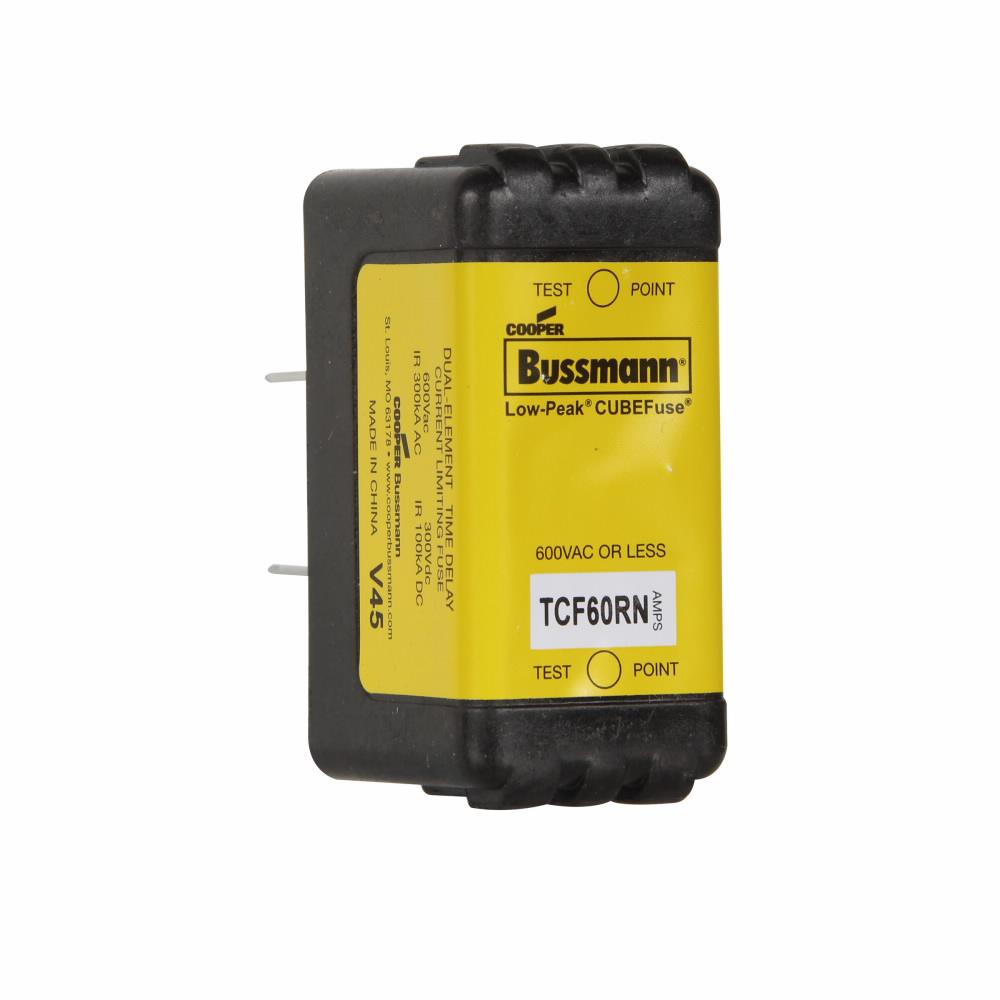

Bussmann TCF60RN CUBE FUSE 60A NON- 600V/300VDC

Product Description

The Bussmann TCF60RN is a time-delay fuse designed for various electrical applications. This fuse operates at sixty amps and is suitable for both 600 VAC and 300 VDC systems. It features a non-indicating design with a blade terminal connection. The TCF60RN is known for its robust interrupt ratings of 100 kAIC at 300 VDC and 300 kAIC at 600 VAC.

• Rated Amperage: 60 Amps
• Features a dual element for superior performance
• Designed for chassis or DIN rail mounting

Product Highlights

This fuse is ideal for use in electrical panelboards, industrial controls, and machinery disconnects. It is recognized for its finger-safe inrush current withstand capability, ensuring safety and reliability in critical applications.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 100/300 kA
• Response Time: 10 s at 500%
• Mounting Type: Chassis / DIN Rail
• Body Size: 0.81 in Dia x 5 in L
• Material: Glass Filled Polyethersulfone
• Element: Dual
• Class: CF
• Terminal Type: Blade
• Body Type: Square Blade
