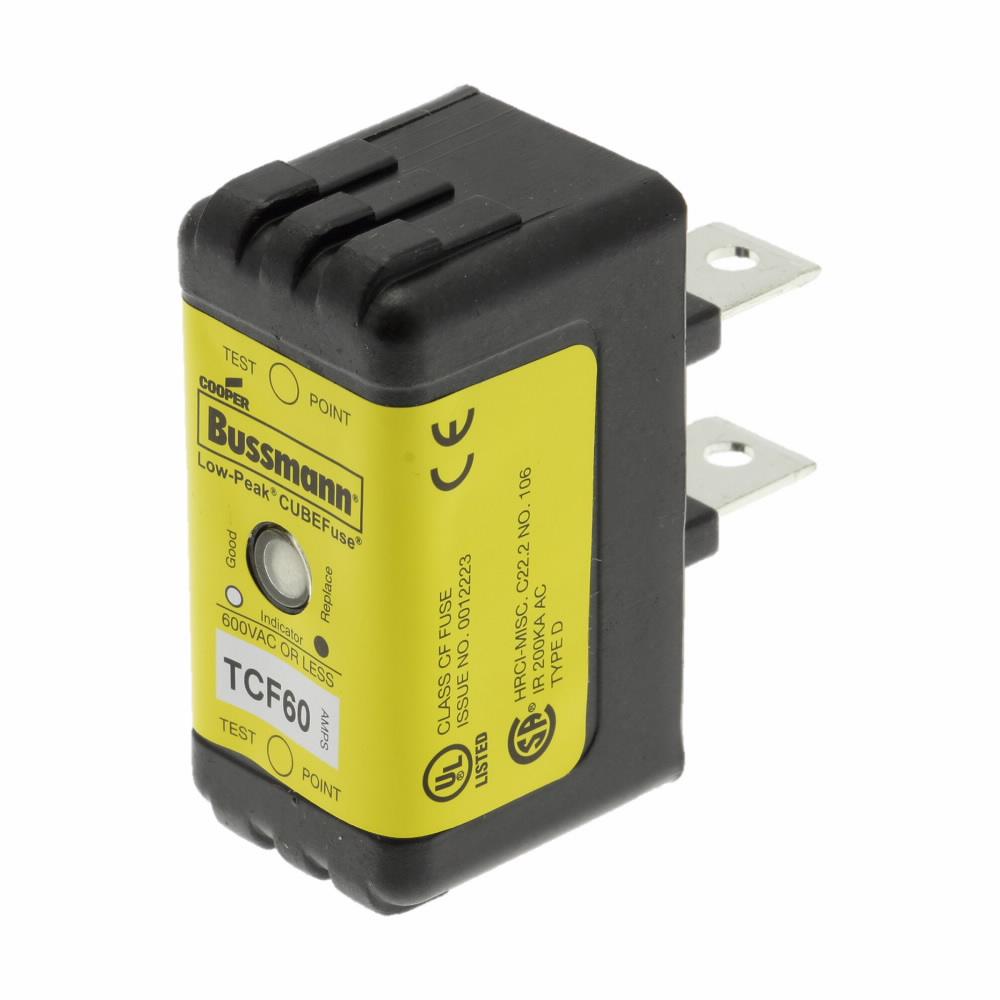

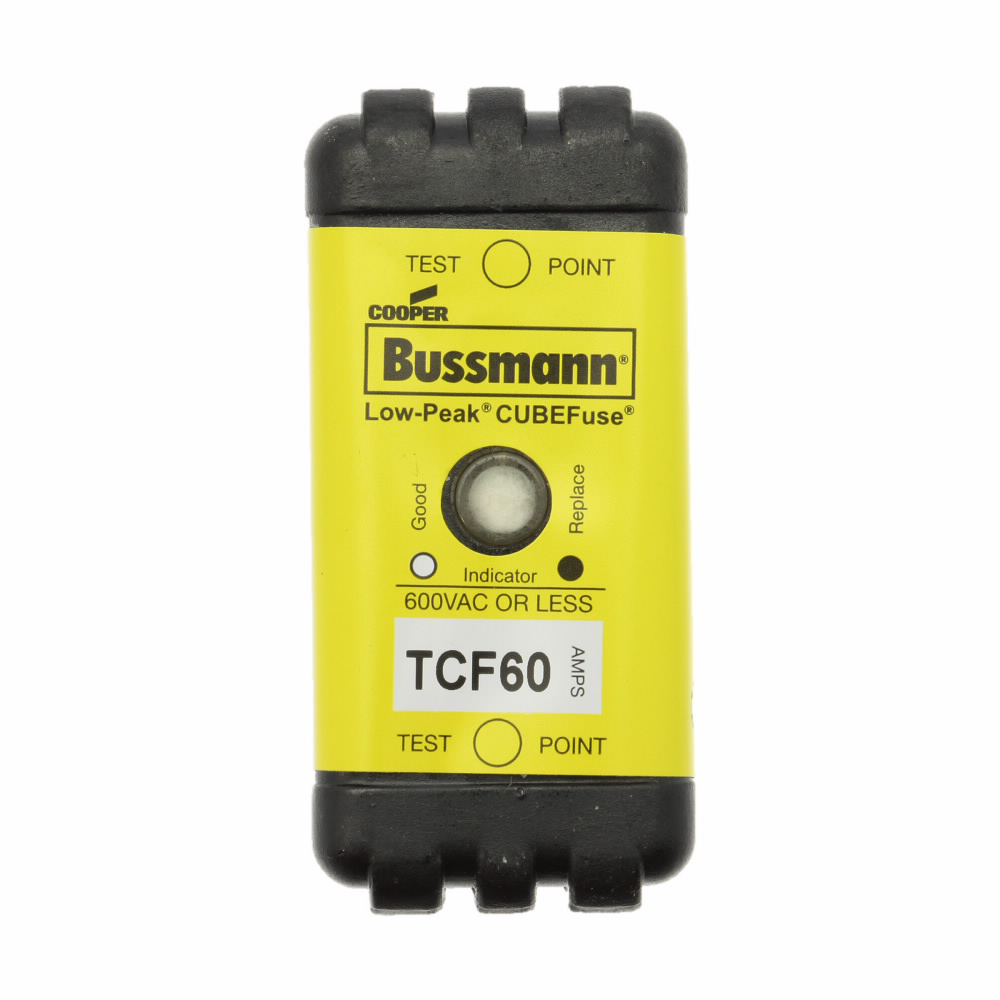

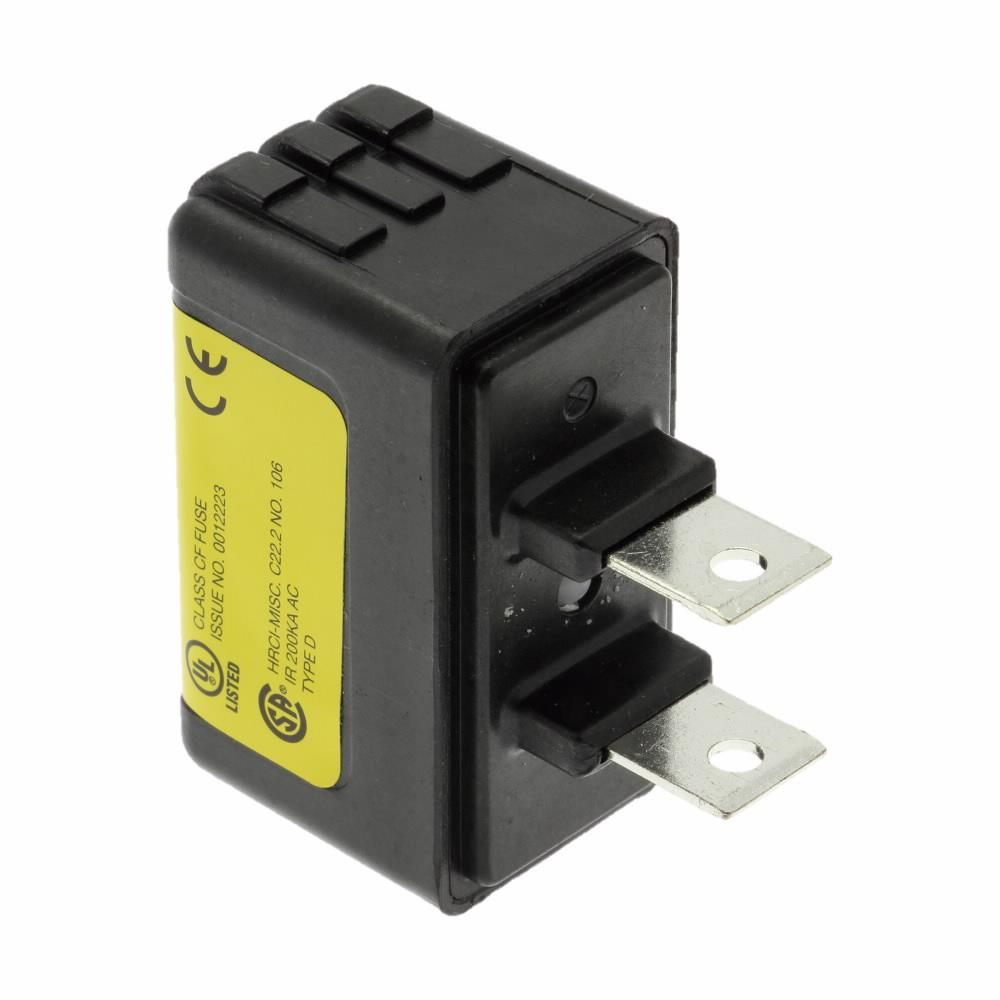

Bussmann TCF60 60 Amp CUBEFuse

Product Description

The Bussmann TCF60 is a 60 amp time-delay fuse designed for electrical applications. This fuse is a part of the Bussmann CUBEFuse series and is built to meet demanding electrical performance requirements. It features a compact design that saves space in electrical panelboards and machinery disconnects while handling high interrupt ratings.

• 60 amp rating with a dual element design
• Rated for 600 VAC and 300 VDC with a 100 kAIC interrupt rating
• Finger safe indicating type with a response time of 10 seconds at 500%

Product Highlights

This fuse is suitable for various applications including electrical panelboards and industrial control systems. The TCF60 provides reliable circuit protection without the risk of damage-causing arcs or venting during operation.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage: 60 A
• Voltage Rating: 600 VAC/300 VDC
• Material: Glass Filled Polyethersulfone
• Body Size: 2.13 inches length x 1 inch height
• Mounting Type: Chassis/DIN Rail
• Response Time: 10 seconds at 500%
• Interrupt Rating: 100/300 kA
• Terminal Type: Blade
• Class: CF
• Element: Dual
