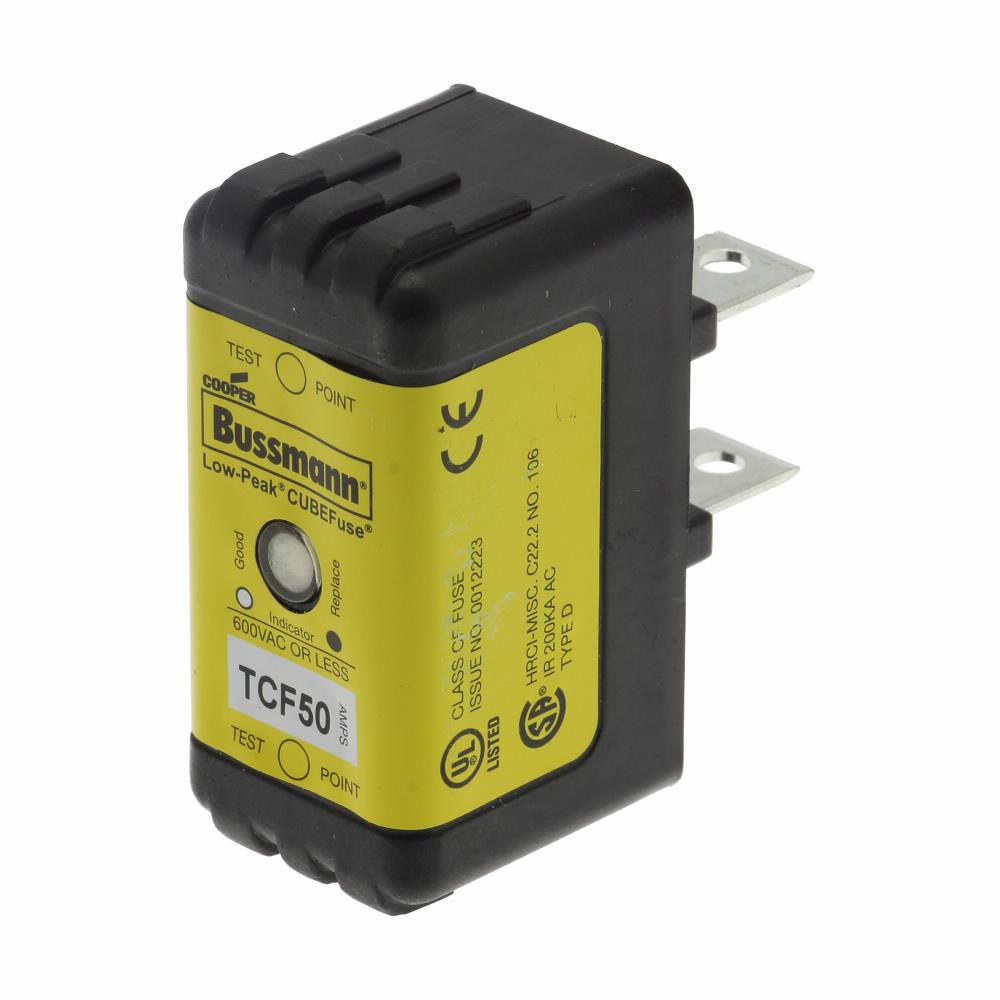

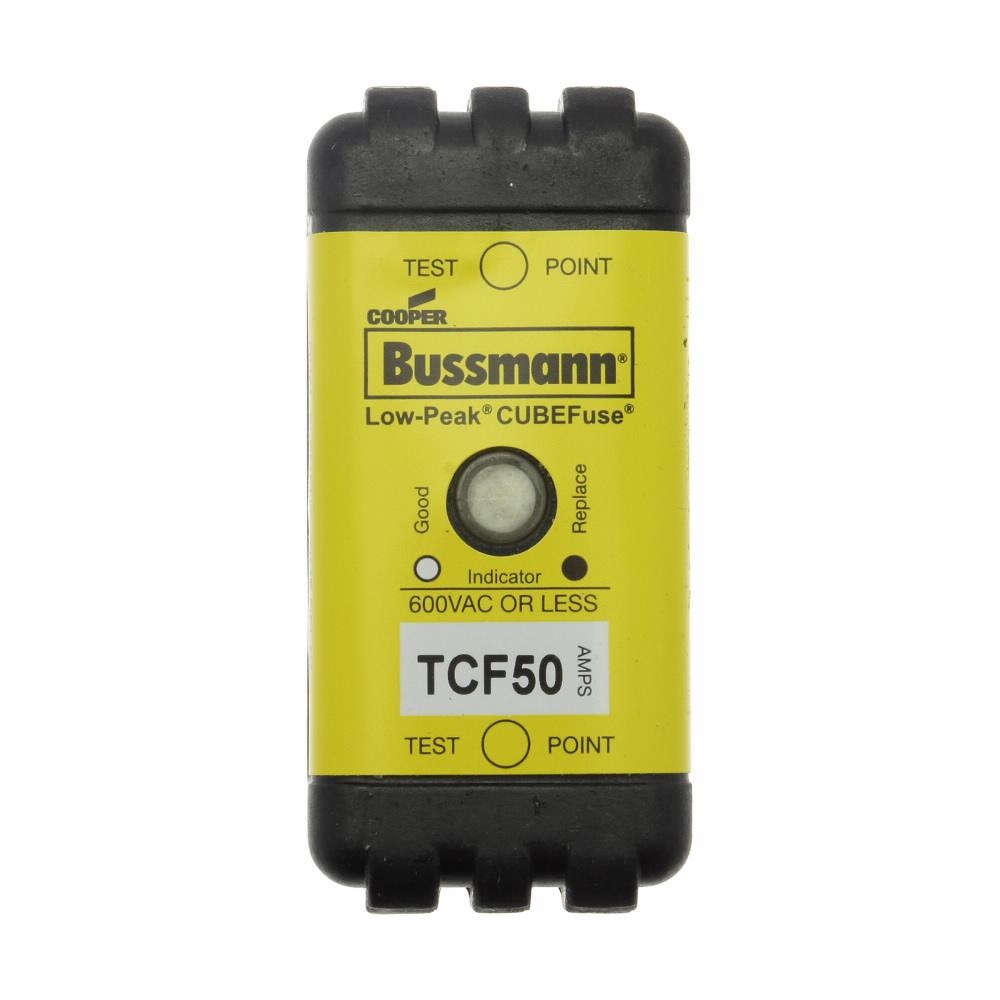

Bussmann TCF50 CUBEFuse 50 A 600 VAC/300 VDC

Product Description

The Bussmann TCF50 is an advanced CUBEFuse designed specifically to provide reliable overcurrent protection. This 50 A fuse operates at voltage ratings of 600 VAC and 300 VDC. It features a 100/300 kA interrupt rating, making it suitable for high fault current applications.

• Indicating Non-Rejection time delay fuse.
• Compact design for optimal space utilization.
• Chassis/DIN rail mount capability.

Product Highlights

The CUBEFuse provides a user-friendly solution for circuit protection while ensuring increased safety and performance in electrical systems.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 100/300 kA
• Response Time: 10 s at 500%
• Frequency Rating: 50/60 Hz
• Material: Glass Filled Polyethersulfone
• Mounting Type: Chassis/DIN Rail
• Body Size: 3.01 in L x 1 in H
• Body Type: Square Blade
• Element: Dual
• Class: CF
