Bussmann TB300-12 Barrier Block

Product Description

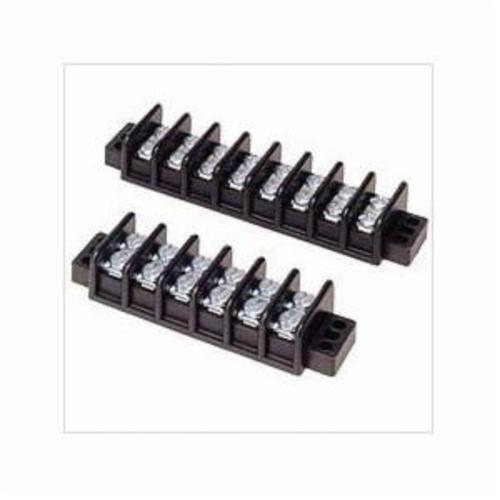

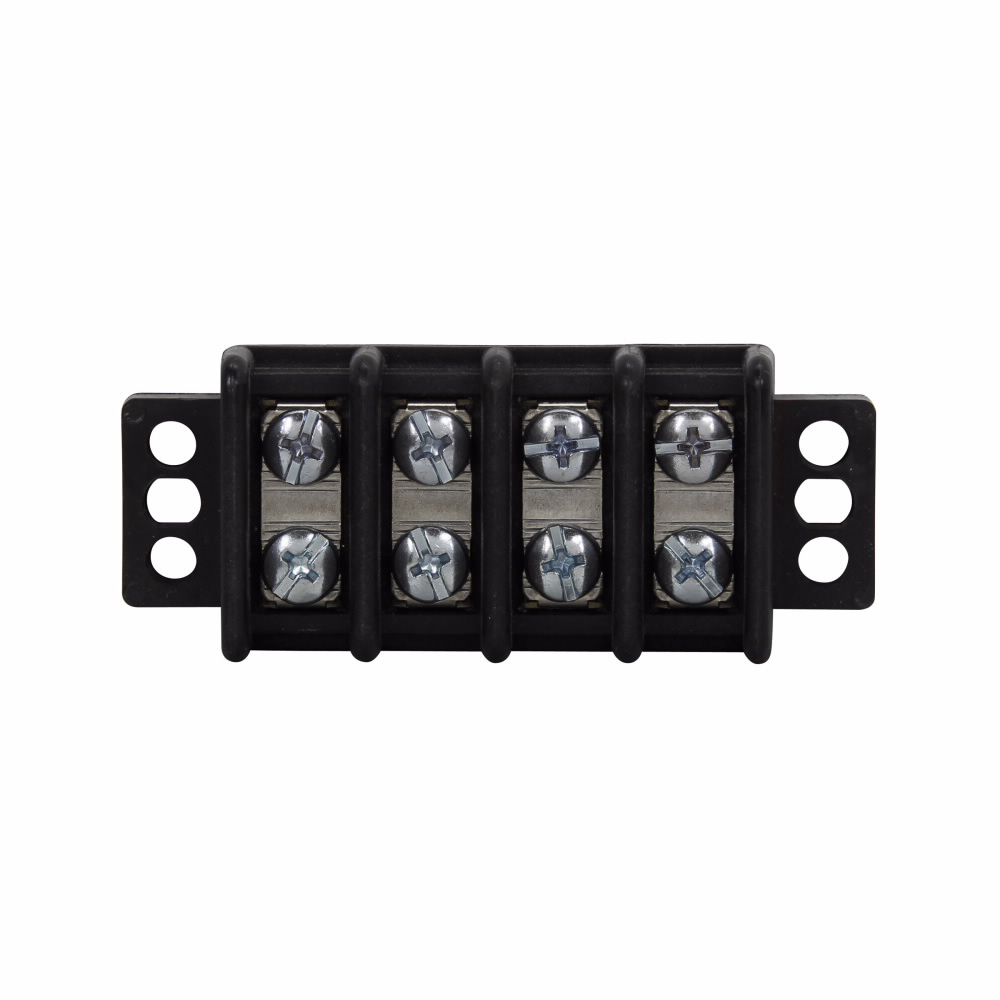

The Bussmann TB300-12 is a panel mount terminal block connector designed for reliable connections in power distribution applications. This model features a breakdown voltage of seven thousand five hundred volts and supports up to thirty amps with a maximum voltage of six hundred volts. It has a double row design with twelve poles and utilizes a #8-32 TPI screw connection for secure mounting.

• Double row, barrier terminal block
• Rated for 600 volts and 30 amps
• Features twelve poles with #8-32 TPI screw connections

Product Highlights

Ideal for robotics and stationary machinery applications, the Bussmann TB300-12 ensures efficient electrical connections.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Dimensions: 7.75 inches length x 1.33 inches width x 0.81 inches height
• Voltage Rating: 600 volts
• Amperage Rating: 30 amps
• Material: Tin-plated brass terminal, zinc-plated steel screws
• Number of Poles: 12
• Operating Temperature: -40 to 130 degrees Celsius
• Mounting Type: Screw
• Application: Stationary machinery in factories - robotics
