Product Description

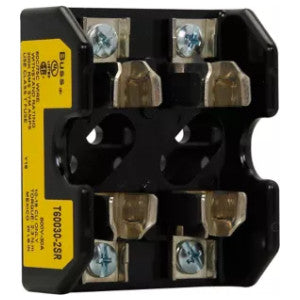

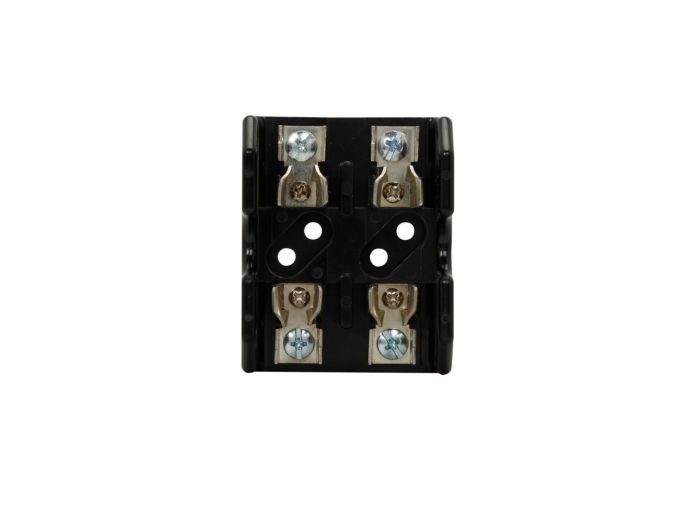

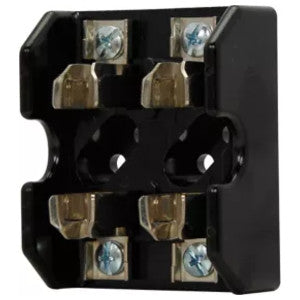

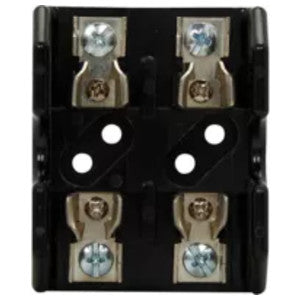

The BUSSMANN T60030-2SR is a Class T modular fuse block designed for control systems operating at 600 Vac/Vdc or less. It features a two-pole configuration, screw connection, and a 200 kAIC interrupt rating. Constructed from glass polyester, this fuse block accommodates 0-30A fuses and #10 AWG Cu wire.
- Modular fuse block design simplifies panel layout.
- High interrupting rating of 200 kAIC for enhanced safety.
- Accommodates Class T fuses up to 30A.
Product Highlights
The Bussmann T60030-2SR fuse block provides high-speed, high-current protection in a compact design, ideal for power distribution systems and control circuits.
Product Information
Standard Information
-
Brand: BUSSMANN
-
Manufacturer Part Number: T60030-2SR
-
Country of Origin: United States
Technical Specifications
-
Product Name: Eaton Bussmann series Class T modular fuse block
-
Catalog Number: T60030-2SR
-
UPC: 051712148085
-
Product Length/Depth: 3 in
-
Product Height: 1 in
-
Product Width: 3 in
-
Product Type: Modular fuse block
-
Amperage Rating: 0-30A
-
Interrupt rating: 200 kAIC
-
Short-circuit rating: 200 kA
-
Voltage rating: 600 Vac, 600 Vdc
-
Material: Glass polyester
-
Number of poles: 2
-
Wire size: #10 AWG Cu
-
Class: T
-
Connection: Screw
-
Brand: BUSSMANN
-
ECCN: EAR99
-
UNSPSC: 39121624
-
Application: 600 Vac/Vdc or Less Control Systems, 600 Vac/Vdc or Less Individual Control Circuits
-
AWG Range: #10 AWG
-
Fuse Interrupt Rating: 200 kAIC
-
Fuse Dimension: 3.19 L x 2.59 W x 1.44 in. H
-
Rated Voltage: 600V ac/dc
-
Shape: Rectangular
-
Fuse Amps: 0-30A
-
Length: 3 in.
-
Height: 1 in.
-
Width: 3 in.
-
AC Voltage Rating: 600 V AC
-
Body Material: Fiberglass Reinforced Thermoplastic
-
Compatible Fuse Series: A6T, JJS, JLLS, LPT
-
Current - Maximum: 30 A
-
Current - Minimum: 0 A
-
DC Voltage Rating: 600 V DC
-
Features: Barriers Between Conductors
-
Compatible Fuse Class or Type: Class T
-
Compatible Fuse Diameter: 9/16 in
-
Compatible Fuse Length: 1-1/2 in
-
Fuse Block Terminal Type: Screw
-
Fuse Block Design: Open
-
Fuse Block Mounting Style: Bolt-Down
-
Fuse Block Style: Non-Rejection
-
Overall Height: 1.44 in
-
Overall Length: 3.19 in
-
Overall Width: 2.59 in
-
Standards: CSA Certified; UL Listed
-
Visual Indication: Non-Indicating
-
Wire Size - Maximum: 10 AWG
-
Manufacturer Part Number: T60030-2SR
-
Manufacturer: Eaton's Bussmann series
-
Product Series: CLASS T
-
Family Series: Eaton's Bussmann series Fuseblocks & Holders, CLASS T Series
-
Description: Eaton Bussmann series Class T modular fuse block, 600 Vac/Vdc or less control systems, 0-30 A, Two-pole, Class T, Screw, 200 kAIC, Glass polyester, 600 Vac/dc, 10 AWG Cu
-
Current Rating: 30 A
-
Voltage: 600 V
-
Poles: 2
-
Fuse Type: Class T
-
Connection Type: Screw Terminal
-
Mounting: Panel Mount
-
Composition: Polyester
-
Trip Indicator: No
-
Reinforced: Yes
-
Enclosed: No
-
Approvals: CE, CSA, UL
-
Net Weight: 0.311 lbs
-
Gross Weight: 0.311 lbs
