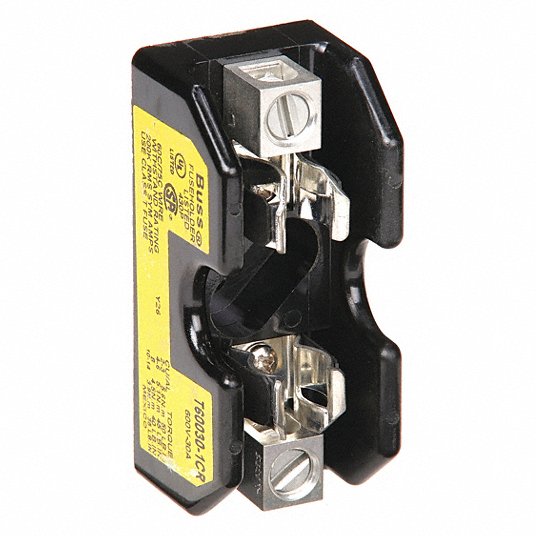

Bussmann T60030-1CR Fuse Block 30 A

Product Description

The BUSSMANN T60030-1CR is a Class T modular fuse block. It is designed for use in 600 Vac/Vdc or less control systems and individual control circuits. It features a box lug connection and can accommodate #2 AWG Cu/Al wire.

• CR special feature
• RoHS Compliant and CE Marked
• UL Listed and CSA Certified

Product Highlights

The Bussmann series Class T fuse blocks simplify panel layout and uses less panel space.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: T60030-1CR
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series Class T modular fuse block
• Catalog Number: T60030-1CR
• UPC: 051712149822
• Product Length/Depth: 3.19 in
• Product Height: 1.44 in
• Product Width: 2.59 in
• Compliances: RoHS Compliant CE Marked
• Certifications: Contact Manufacturer UL Listed CSA Certified
• Product Type: Modular fuse block
• Amperage Rating: 0-30A
• Interrupt rating: 200 kAIC
• Short-circuit rating: 200 kA
• Voltage rating: 600 Vac, 600 Vdc
• Material: Glass polyester
• Number of poles: Single-pole
• Wire size: #2 AWG Cu/Al
• Class: Class T
• Connection: Box lug
• Special Features: CR
• Application: 600 Vac/Vdc or Less Control Systems, 600 Vac/Vdc or Less Individual Control Circuits
• Brand: BUSSMANN
• Current Rating: 30 A
• Dimensions: 1.44 in H X 2.59 in W X 3.19 in L
• Fuse Dimensions: 1.44 X 2.59 X 3.19 in
• Manufacturer Part Number: T60030-1CR
• Primary Type: Fuse Holder
• Series: Bussmann Series
• Shape: RECTANGULAR
• Type: Modular fuse block
• Voltage: 600V
• UPC Code: 051712149822
• AC Voltage Rating: 600 V AC
• Body Material: Fiberglass Reinforced Thermoplastic
• Compatible Fuse Series: A6T, JJS, JLLS, LPT
• Current - Maximum: 30 A
• Current - Minimum: 0 A
• DC Voltage Rating: 600 V DC
• Features: Flame Resistance
• Compatible Fuse Class or Type: Class T
• Compatible Fuse Diameter: 0.5625 in
• Compatible Fuse Length: 1.5 in
• Fuse Block Terminal Type: Box Lug
• Fuse Block Design: Open
• Fuse Block Mounting Style: Bolt-Down
• Fuse Block Style: Non-Rejection
• Overall Height: 1.44 in
• Overall Length: 3.19 in
• Overall Width: 1.44 in
• Standards: CE; CSA Certified; RoHS; UL Listed
• Visual Indication: Non-Indicating
• Wire Size - Maximum: 2 AWG
• Wire Size - Minimum: 14 AWG
• UNSPSC: 39121411
• Fuseholders: Fuseholders
• For Use With/Related Products: Class T Fuses
• Fuse Type: Cartridge
• Packaging: Bulk
• Fuseholder Type: Block
• Part Status: Active
• Number of Circuits: 1
• Mounting Type: Chassis Mount
• Fuse Size: 0.563" Dia x 1.5" L (14.3mm x 38.1mm)
• Termination Style: Box Lug
• GTIN: 00051712149822
• Item Type: Modular fuse block
• Size: 3.19 In Length X 2.59 In Width X 1.44 In Height
