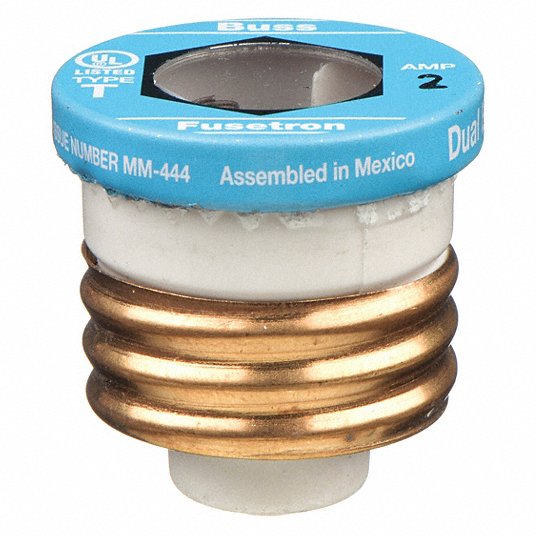

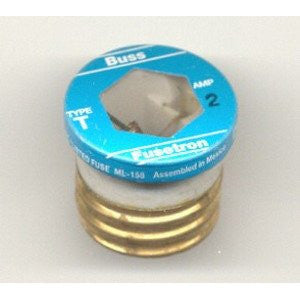

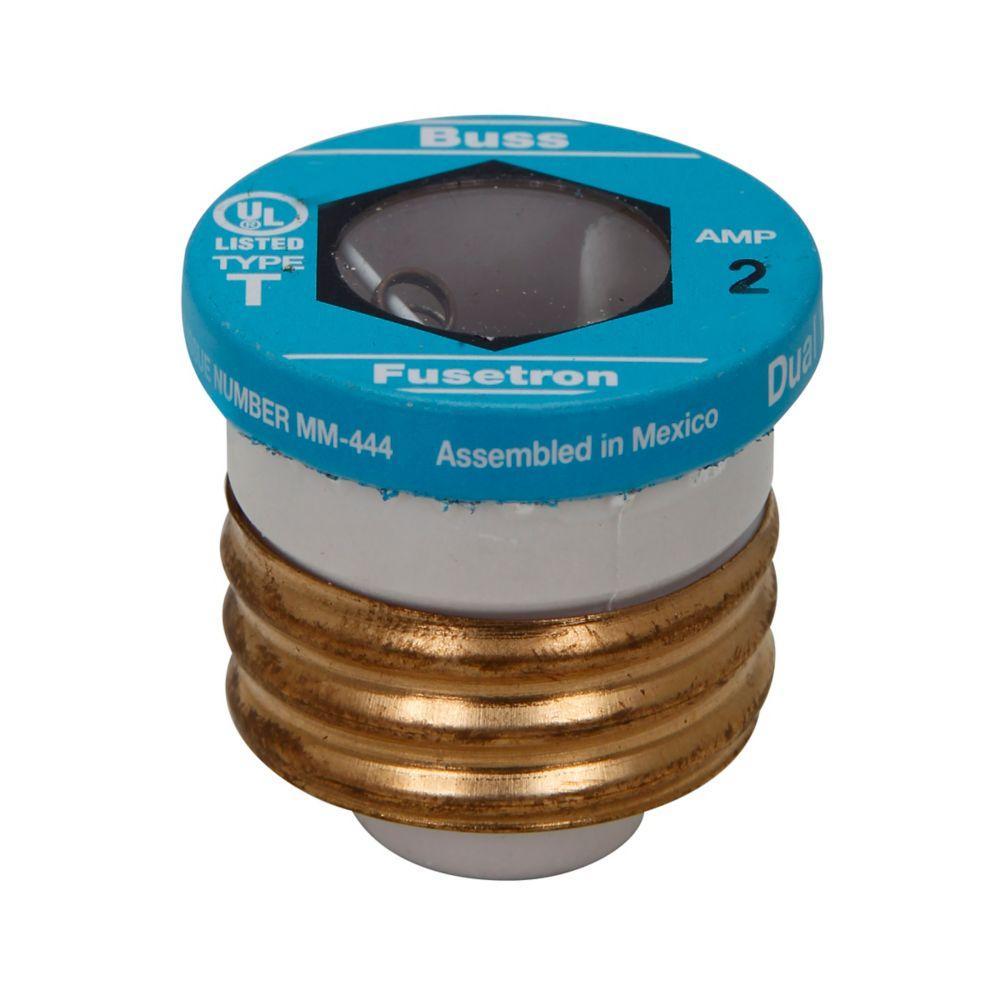

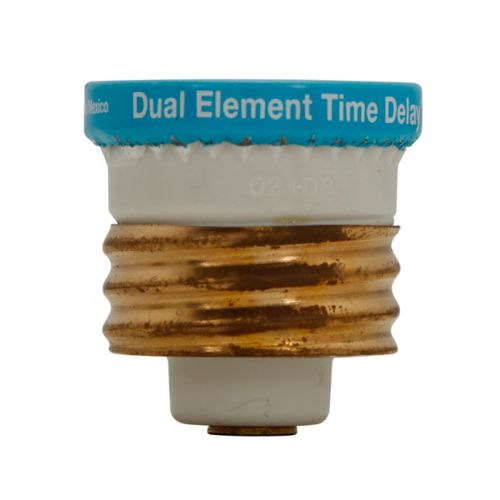

Bussmann T-2 Plug Fuse 2 A

Product Description

The Eaton Bussmann series Type T plug fuse, MPN T-2, is a time delay, heavy-duty plug fuse. Rated at 2 A and 125 Vac with a 10 kAIC interrupt rating and 10 kA short circuit rating. It features a threaded mount, dual element, plastic body, brass thread, and Edison base.

• Time delay
• Heavy-duty
• Use to protect critical motor circuits or motors that cycle On/Off frequently

Product Highlights

The Bussmann T-2 plug fuse is designed for residential buildings and facilities, providing overload protection for small motors with its dual element construction.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: T-2
• Country of Origin: Mexico (subject to change)

Technical Specifications

• Product Name: Eaton Bussmann series Type T plug fuse
• Catalog Number: T-2
• UPC: 051712210201
• Product Type: Plug fuse
• Amperage Rating: 2 A
• Interrupt rating: 10 kAIC
• Voltage rating: 125 V
• Application: Box cover units for small motor overload protection
• Base: Edison
• Mounting method: Threaded
• Special features: Heavy-duty
• Type: Time delay
• Amperage: 2 Amp
• Applications: Box Cover Units for Small Motor Overload Protection
• Material: Brass
• Mounting Type: Threaded
• Voltage: 125 VAC
• Brand: Bussmann
• Sub Brand: Bussmann Series
• 12-Digit UPC: 051712210201
• Series: T Series
• Manufacturer Part Number: T-2
• AC Voltage Rating: 125 V
• Body Material: Plastic Body/Brass Thread
• Current Rating: 2
• Element: Dual
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Plug
• Interrupt Rating - AC: 10 kA
• Speed: Time-Delay
• Standards: CE; CSA Class 1423-01; File 53787; File E56412; UL 248-11 Guide JFHR
• Visual Indication: Indicating
• UNSPSC: 39121605
• Package Quantity: 1
• Indicating/Non-Indicating: Non-Indicating
• Short Circuit Current Rating: 10 kA
• Mounting: Threaded Mount
• Body Type: Edison Base Body Type
