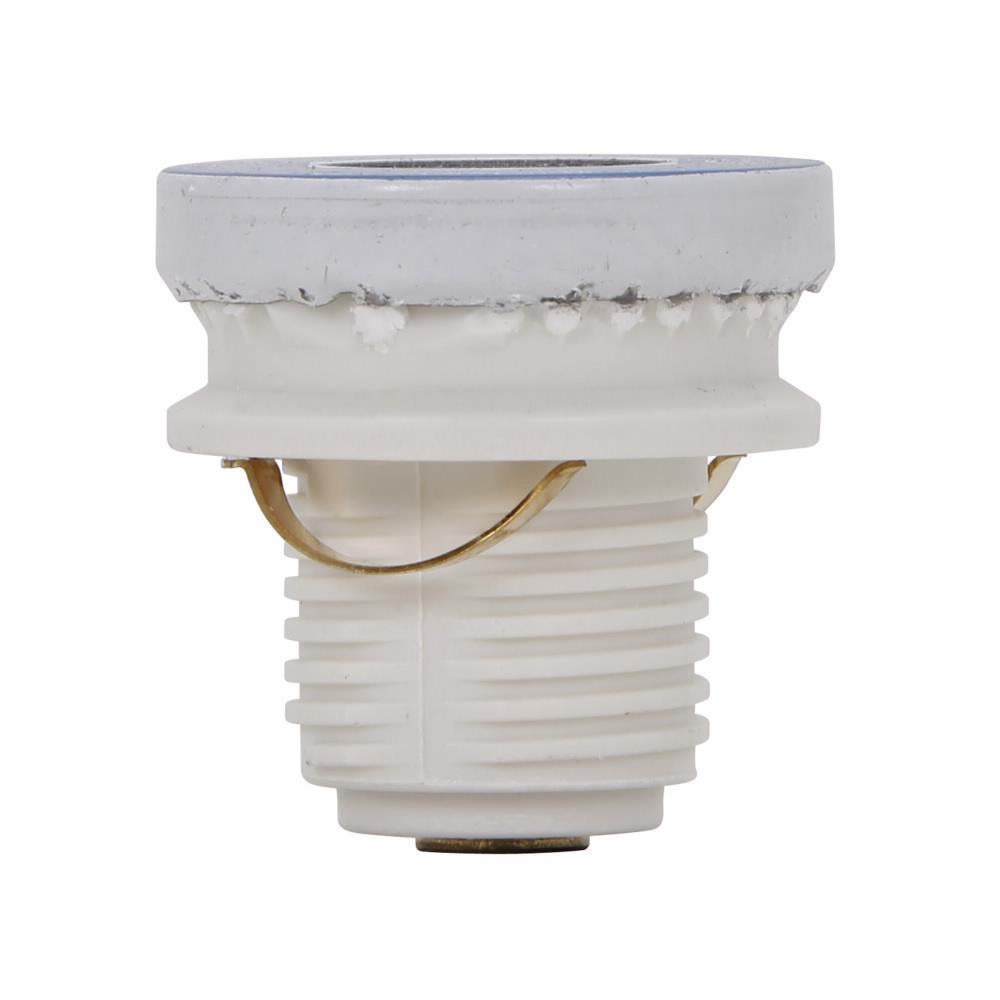

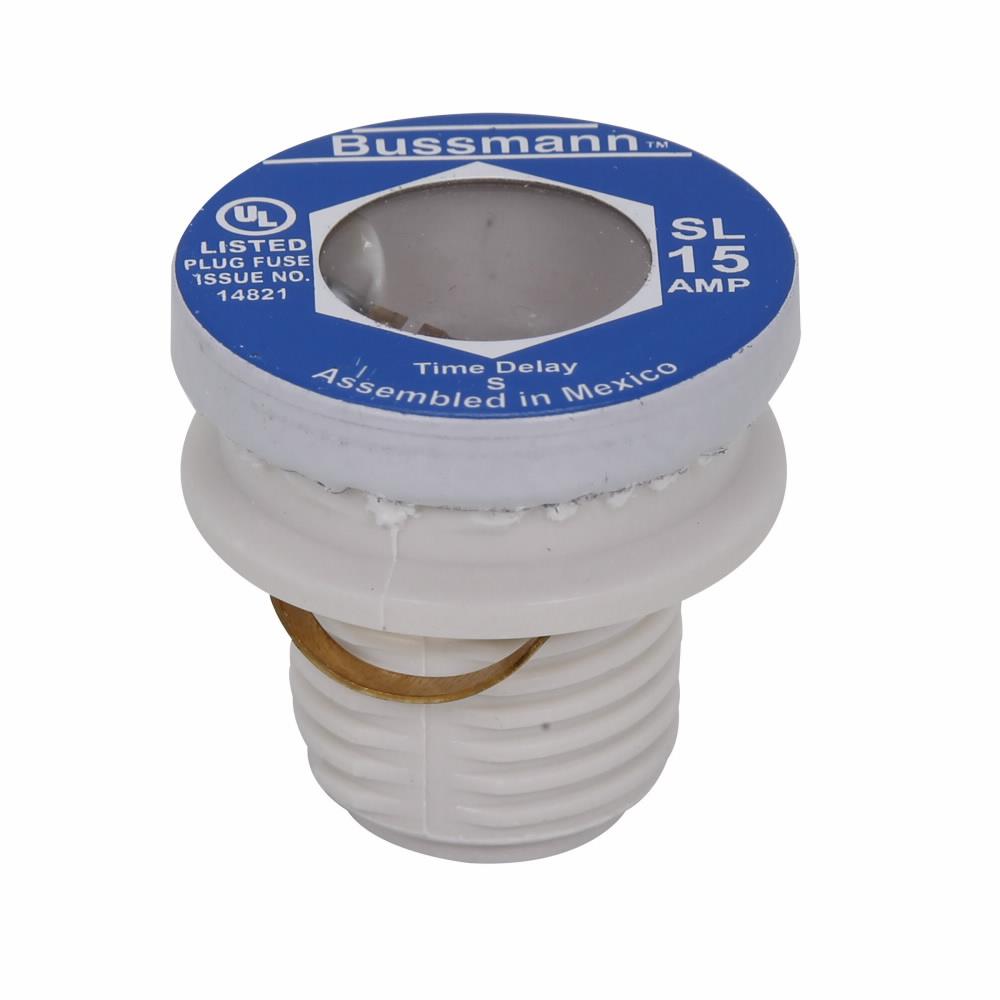

Bussmann SL-15 Low Voltage Medium Duty Time Delay Plug Fuse 125 Vac 15 A

Product Description

The Bussmann SL-15 is a low voltage medium duty time delay plug fuse designed for use with residential motor circuits. It operates at 125 Vac and features a current rating of 15 A with an interrupt capacity of 10 kA. This fuse is ideal for applications in kitchens, workshops, garages, and utility areas where motors, relays, or solenoids are present.

• Time delay construction withstands light motor loads.
• Size rejection feature prevents over-fusing.
• Suitable for branch circuit and motor protection in residential and industrial settings.

Product Highlights

The Bussmann SL-15 provides a compact and economical solution to protect electrical motors from damage.

Product Information

Standard Information

• Voltage: 125 Volts
• Amperage Capacity: 15 Amps

Technical Specifications

• Application: Residential motor circuits in kitchens, workshops, garages, utility rooms, or any circuit with motors, relays, or solenoids
• Fuse Type: Plug
• Series: SL
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Material: Plastic
• Mounting Type: Threaded
• Rejection/Non-Rejection: Rejection
• Short Circuit Current Rating: 10 kA
• Type: Loaded Link Medium Duty Time Delay
• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Interrupt Rating: 10 kAIC
• Body Type: Round
