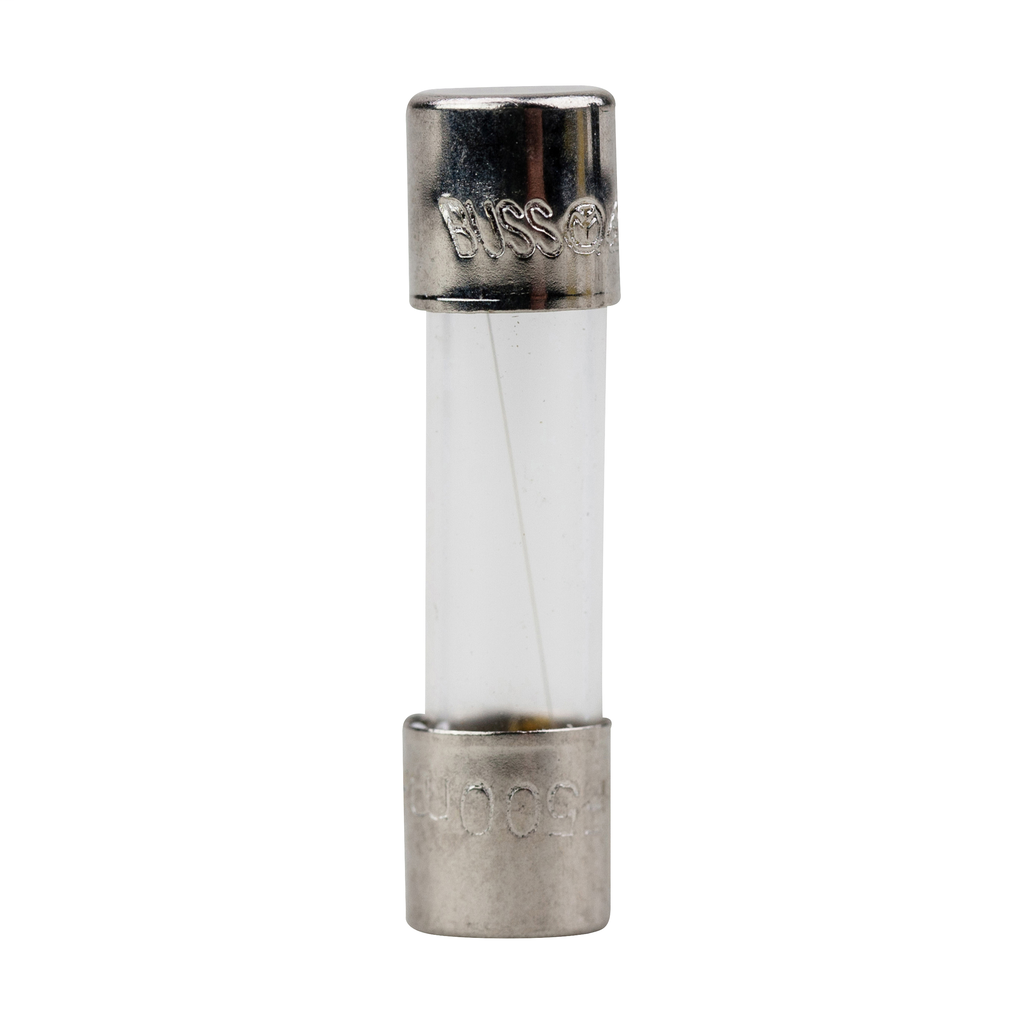

Bussmann S500-500-R 500 mA Fuse (5.2 mm x 20 mm)

Product Description

Bussmann S500-500-R is a 500 mA glass cartridge fuse for electronic circuit protection, rated 250 V with an interrupting rating of 80 AIC. The small-dimension European (IEC) fuse measures 5.20 mm diameter by 20.00 mm length and uses ferrule end-to-ferrule end connections in a cylindrical glass body. It is non-indicating and compliant with multiple standards for use in electronic circuits.

• 500 mA amperage rating, 250 VAC voltage rating, 80 AIC interrupting rating
• Glass body, ferrule end x ferrule end connection, 5.20 mm x 20.00 mm (IEC small-dimension)
• Non-indicating design; standards and approvals include VDE, CE, RoHS, CCC, BSI, CSA, IMQ, SEMKO, UL

Product Highlights

5.2 mm x 20 mm glass IEC fuse, 500 mA at 250 VAC, 80 AIC interrupting rating, ferrule terminations

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: S500-500-R
