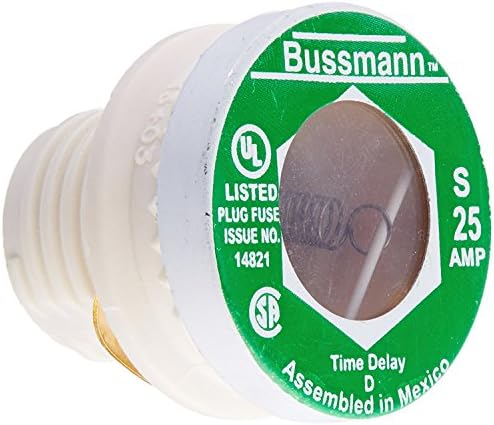

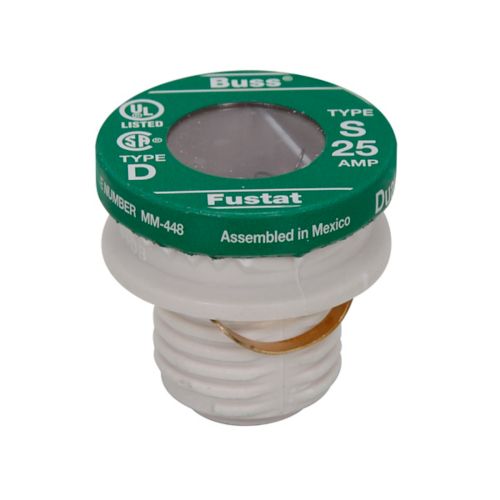

Bussmann S-25 Type S plug fuse 25 A

Product Description

The Eaton Bussmann series Type S plug fuse, MPN S-25, is a time delay, heavy-duty plug fuse. Rated at 25 A and 125 Vac, it features a 10 kAIC (RMS Symmetrical) interrupt rating and a 10 kA short circuit rating. Designed for threaded mount applications and duel element, often used in residential load centers.

• Time delay
• Heavy duty
• Packaging type blister pack
• Duel element

Product Highlights

The Bussmann S-25 is ideal for critical circuit protection in commercial applications, providing superior protection without opening during repeated motor startups.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: S-25

Technical Specifications

• Product Name: Eaton Bussmann series Type S plug fuse
• Catalog Number: S-25
• UPC: 051712101431
• Product Length/Depth: 1.16 in
• Product Height: 1.88 in
• Product Width: 0.72 in
• Product Type: Plug fuse
• Amperage Rating: 25 A
• Interrupt rating: 10 kAIC
• Voltage rating: 125 V
• Application: Residential load centers
• Base: Rejection
• Mounting method: Threaded
• Special features: Heavy duty, packaging type blister pack
• Material: Plastic base
• Type: Time delay
• Ac Adapter Current: 25 Amps
• Voltage: 125 Volts
• Maximum Current: 25 Amps
• Mounting Type: Through-Hole Mount
• Current Rating: 25 Amps, 30 Amps
• Material Type: Brass
• Bulb Voltage: 125 volts
• Amperage: 25
• Voltage Type: AC
• Frame Type: S
• Mfr. #: S-25
• Mfr.: Bussmann / Eaton
• Description: Industrial & Electrical Fuses 125V 25A Time Delay Dual Element Plug
• GTIN: 0051712101431
• Tripping Characteristics: Type S
• Current Type: AC
• Fuse Body Type: Plug (Screw In)
• Number in Pack: 2-5
• Finish: Copper
• Mounting Style: Screw
• Maximum Amperage: 125 A
• Number of Phases: 1
• Fuse Speed: Time-Delay/Slow-Blow (T)
• Model: S-25
• Number of Poles: 1
• Resistance Properties: Tamper Resistant
