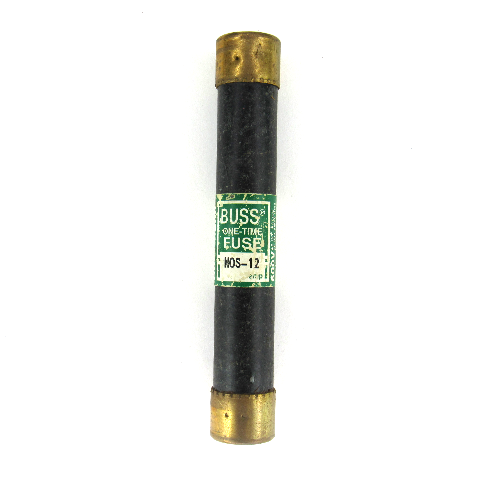

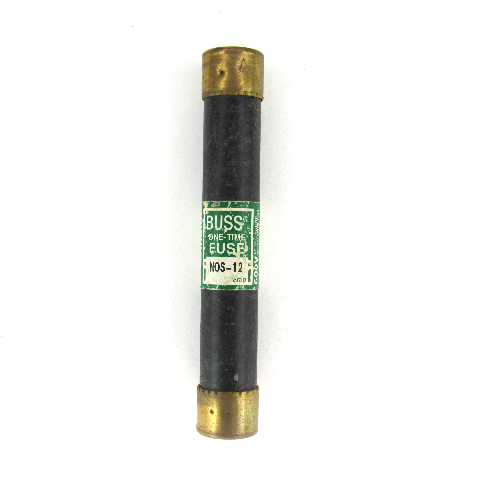

Bussmann NOS-12 Fuse 12 A

Product Description

The Eaton Bussmann Series NOS-12 fuse is a general-purpose, non-current-limiting, one-time fuse with an interrupting rating of 50 kA at 600 Vac. It protects lighting, heating, and other circuits not subject to temporary surges and where available short-circuit currents are relatively low.

• Pin-indicating
• Protects against short circuits
• Suitable for lighting and heating circuits

Product Highlights

The Bussmann NOS-12 fuse provides basic protection for general-purpose circuits, ideal for applications with low short-circuit currents.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: NOS-12
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Bussmann series NOS fuse
• Catalog Number: NOS-12
• UPC: 051712310123
• EAN: 5027590453868
• Product Length/Depth: 5 in
• Product Height: 0.81 in
• Product Width: 0.81 in
• Product Type: Fuse
• Amperage Rating: 12 A
• Interrupt rating: 50 kAIC at 600 Vac
• Voltage rating: 600 V
• Packaging type: Standard
• Class: Class H Class K5
• Fuse indicator: Non-indicating
• Special features: Pin-indicating
• Ampere: 12 A
• Speed: Medium / Normal Blow
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA
• Substitute parts: Littelfuse NLS, Mersen OTS
• Dimensions: 0.81" Dia x 5" L (20.57x127mm)
• Other names: NOS12, NOS 12 Amp, NOS-12, NOS 12A, NOS12A, NOS-12A, NOS 12
• Voltage: 551-600 V
• MPN: NOS-12
• Model: NOS-12
• Part Number: NOS-12
• Manufacturer: Bussmann
• Country/Region of Manufacture: United States
• Type: One-Time Fuse Class H 600 Volts or Less
• Product Series: NOS
• Family Series: Eaton's Bussmann series Fuses, NOS Series
• Description: Eaton Bussmann series NOS fuse, Non current limiting, Light duty circuit locations, 12 A, Class H, Non-indicating, 50 kAIC at 600 Vac, Standard, 10, 600 V
• Fuse Type: UL Class K5
• Current Rating: 12 A
• AC Voltage: 600 VAC
• Characteristic: Fast Acting
• Trip Indicator: No
• Alarm Contacts: No
• Package Type: Cartridge
• Net Weight: 0.153 lbs
• Gross Weight: 0.153 lbs
