Bussmann MDQ-3/4 Fuse, 3/4 A, 250V AC, 5 PK

Product Description

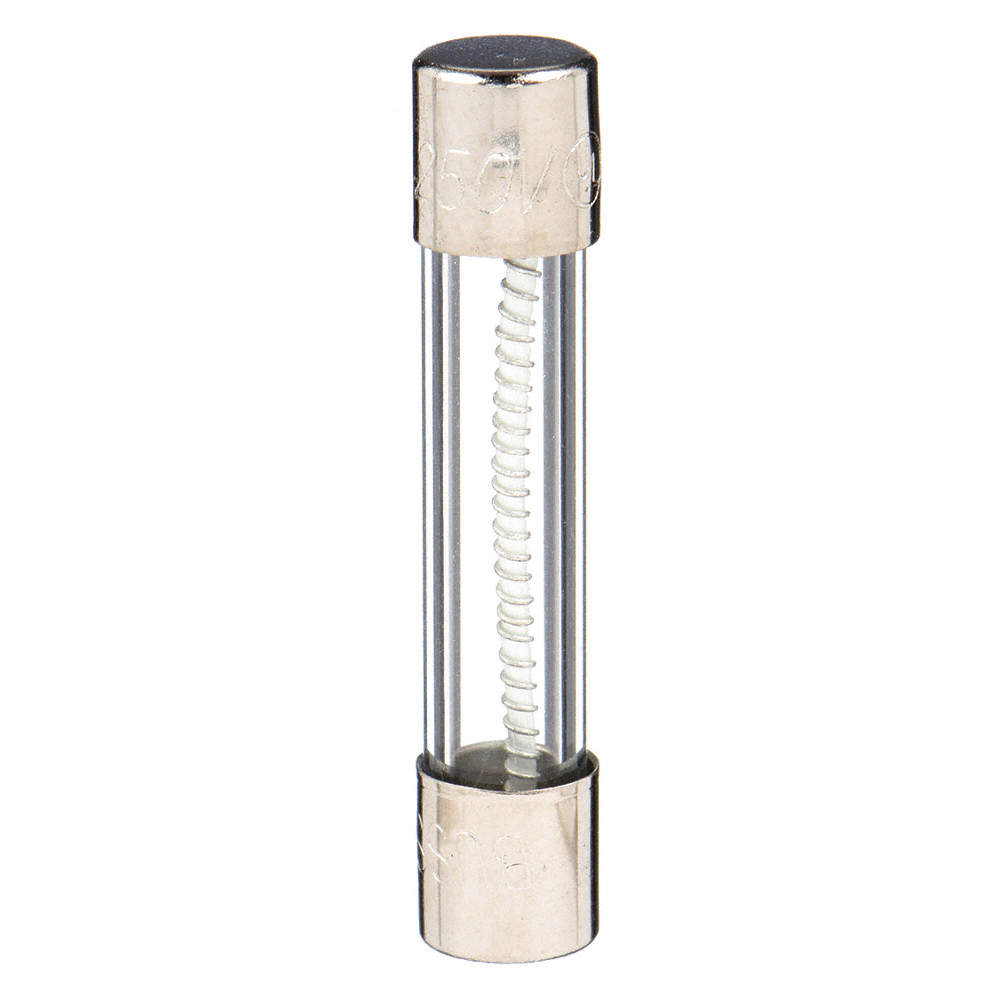

The BUSSMANN MDQ-3/4 is a fuse with 3/4 amps and a voltage rating of 250V AC. It measures 1 1/4 inch L x 1/4 inch dia and is made of glass. This slow blow acting fuse meets CE, CSA 1422-01, and UL 248-14 Guide JDYX standards. It is suitable for use with 3823, HFA, HHN, HK, HKP, HPF, HRK, HTB, and S-8000 compatible fuse block series.

• 0.75A current rating
• 250V AC voltage rating
• Meets CE, CSA 1422-01, UL 248-14 Guide JDYX standards

Product Highlights

The BUSSMANN MDQ-3/4 fuse is a reliable choice for circuit protection, offering time-delay functionality and compliance with industry standards.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: MDQ-3/4
• Country of Origin: Taiwan

Technical Specifications

• Item: Fuse
• Body Material: Glass
• Speed: Time Delay
• Compatible Fuse Block Series: 3823, HFA, HHN, HK, HKP, HPF, HRK, HTB, S-8000
• Element: Single
• Equivalent Series: 313, 315, GDL, GDV, MDL, MDQ, MDV, MDX
• Series: MDL
• AC Voltage Rating: 250V AC
• Body Style: Cylindrical
• Visual Indication: Glass Fuse
• DC Voltage Rating: Not Rated
• Equivalent Brand and Series: Bussmann MDL, Bussmann MDQ, Bussmann MDV, Bussmann MDX, Littelfuse 313, Littelfuse 315, Mersen GDL, Mersen GDV
• Fits Fuse Block Style: Nonrejection
• Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
• RoHS: Compliant
• Termination: Clip
• Number of Pins: 2
• Current Rating: 0.75 A
