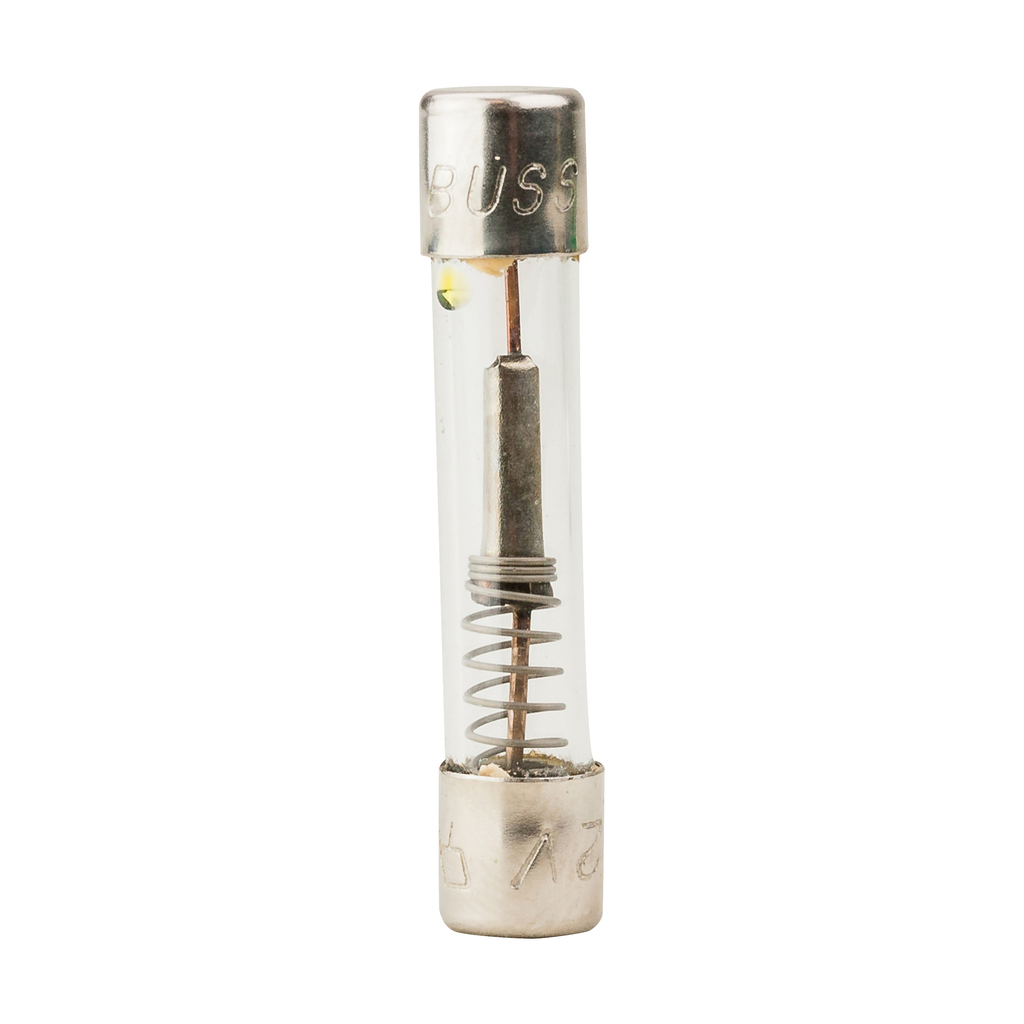

Bussmann MDL-20 Fuse 20 amp

Product Description

The Bussmann MDL-20 is a small dimension fuse designed for electronic circuits. It has a voltage rating of 32V and an amperage of 20A. The time delay feature allows for close sizing on inductive circuits. It is CE, CSA, and UL 248-14 certified.

• Time delay allows close sizing on inductive circuits
• Interrupt rating of 1 kAIC at 32 VAC
• Small dimension fuse

Product Highlights

The Bussmann MDL-20 fuse provides reliable circuit protection with time-delay functionality.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: MDL-20
• Country of Origin: MUL

Technical Specifications

• Type: Time-delay fuse
• Brand: Bussmann
• Voltage: 32 Volt
• Amperage: 20 Amp
• End Type: Ferrule
• Standard: CE,CSA,UL 248-14
• Applications: Electronic Circuits
• Response Time: 120 seconds maximum at 200%,60 minutes maximum at 135%
• Connection Type: Ferrule
• Interrupt Rating: 1 kAIC
• Class: 3AG/AB
• Series: MDL
• Part Number: MDL 062
• Mfg Cat No: MDL-20
• VAC: 32
• Alternate Catalog Number: MDL-20-R
• Application: Ind Facilities & Factories - Facility: Safety and Security Systems
• Body Size: 1/4 in Dia x 1-1/4 in L
• Catalog Number: MDL-20-R
• Connection: Ferrule end x ferrule end
• Element: Single
• Material: Glass tubeNickel-plated brass end cap construction
• Mounting Type: Holder
• Rejection|Non~Rejection: Non-Rejection
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 248-14Guide JDYX2UL File No. E19180CSA CertifiedCSA Class 1422-30
• Sub Brand: Bussmann Series
• Terminal Type: Ferrule
• UNSPSC: 39121607
• Manufacturer: Eaton
• Amperage Rating: 20 A
• Body Type: Cylindrical
• Voltage Rating: 32 Vac, 32 Vdc (self certified) VAC
• Catalog / Class: 6X32
• Speed: TIME DELAY
• SKU: MDL-20
• Category: 6 x 32mm Fuses
• Current Rating (Amps): 20A
• Equivelant: TSA/0313
• Model: MDL-20-R
• MPN: MDL-20-R
