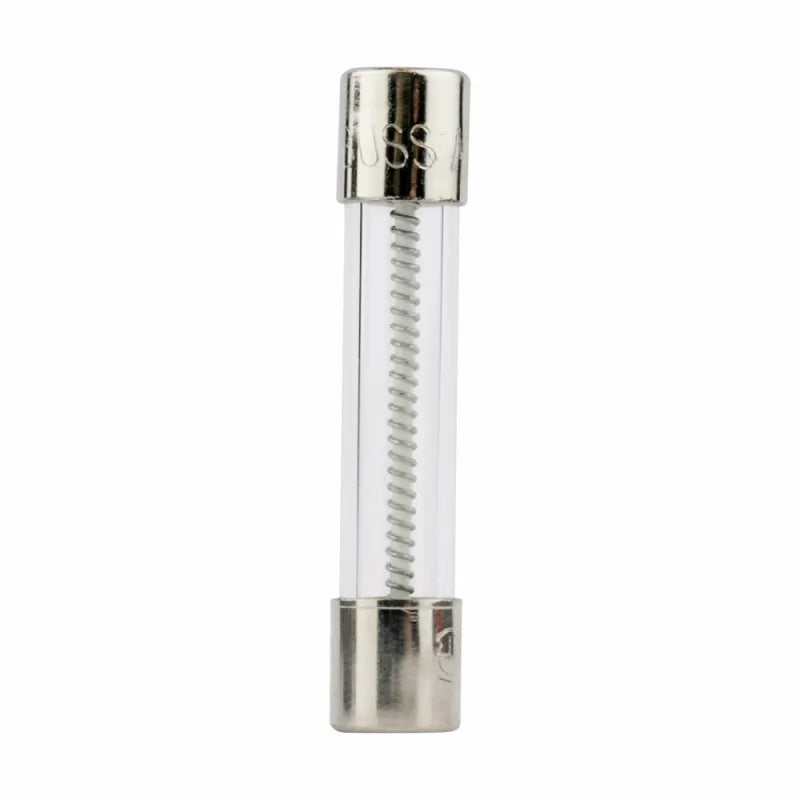

Bussmann MDL-2-1/2-R Time-delay Fuse 2.5A 1/4 Inch Diameter

Product Description

The Bussmann MDL-2-1/2-R is a reliable time-delay fuse with a current rating of 2.5 Amperes. Designed for voltage applications up to 250 Volts AC and 32 Volts DC, this fuse ensures effective circuit protection. It is ideal for use in safety and security systems in industrial facilities.

• Time-delay properties enhance circuit reliability.
• Compact size measures one-quarter inch in diameter and one and one-quarter inch in length.
• RoHS compliant and CE marked for safety standards.

Product Highlights

Utilize this time-delay fuse for dependable circuit protection in various applications, including safety systems and industrial equipment.

Product Information

Standard Information

• Manufacturer: Bussmann
• Part Number: MDL-2-1/2-R

Technical Specifications

• Voltage Rating: 250 Vac; 32 Vdc
• Amperage Rating: 2.5 A
• Interrupt Rating: 100 AIC at 250 Vac; 10 kAIC at 125 Vac
• Dimensions: 1.25 inches x 0.25 inches
• Material: Glass tube with nickel-plated brass end caps
• Response Time: 60 minutes at 135%; 120 seconds at 200%; 5 seconds at 200%
• Application: Used in safety and security systems in industrial facilities
• Standard Compliance: RoHS Compliant; CE Marked
