Bussmann MDA-8-R fuse 8A replacement MDA-8-R

Product Description

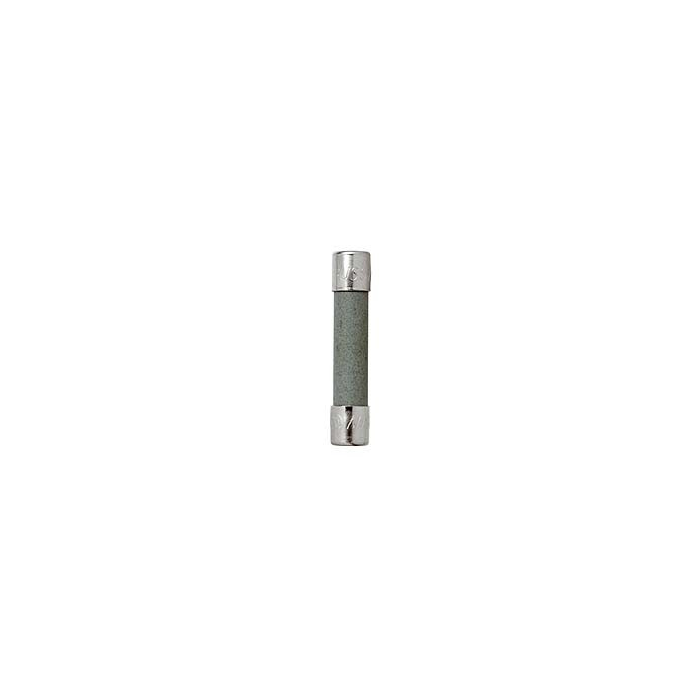

The BUSSMANN MDA-8-R is a time-delay ceramic tube fuse with nickel-plated bronze endcaps. This fuse is rated for 8 amps and 250 volts AC. It is UL Listed and CSA certified. It is suitable for use with KB Electronics AC and DC motor controls and drives.

• 8 Amps
• 250 Volts AC
• Time Delay

Product Highlights

The BUSSMANN MDA-8-R fuse is a reliable choice for protecting electrical circuits from overloads and short circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: MDA-8-R
• Country of Origin: China

Technical Specifications

• Amperage: 8A
• Voltage: 250V AC
• Fuse Element: Time Delay
• Body Material: Ceramic
• Endcaps Material: Nickel-plated bronze
• Size: 1/4" x 1 1/4"
• AC Voltage Rating: 250VAC
• Interrupt Rating: 10kA at 125VAC, 200A at 250VAC
• Body Style: Cylindrical
• Compatible Fuse Block Series: 3823, HFA, HHN, HK, HKP, HPF, HRK, HTB, S-8000
• DC Voltage Rating: Not Rated
• Diameter: 1/4 in
• Element: Single
• Equivalent Brand and Series: Bussmann MDA, Littelfuse 326, Mersen GSA
• Equivalent Series: 326, GSA, MDA
• Fits Fuse Block Style: Nonrejection
• Fuse Size: 1-1/4 in L x 1/4 in dia.
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
• Length: 1-1/4 in
• Series: MDA
• Speed: Time Delay
• Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
• Visual Indication: Nonindicating
