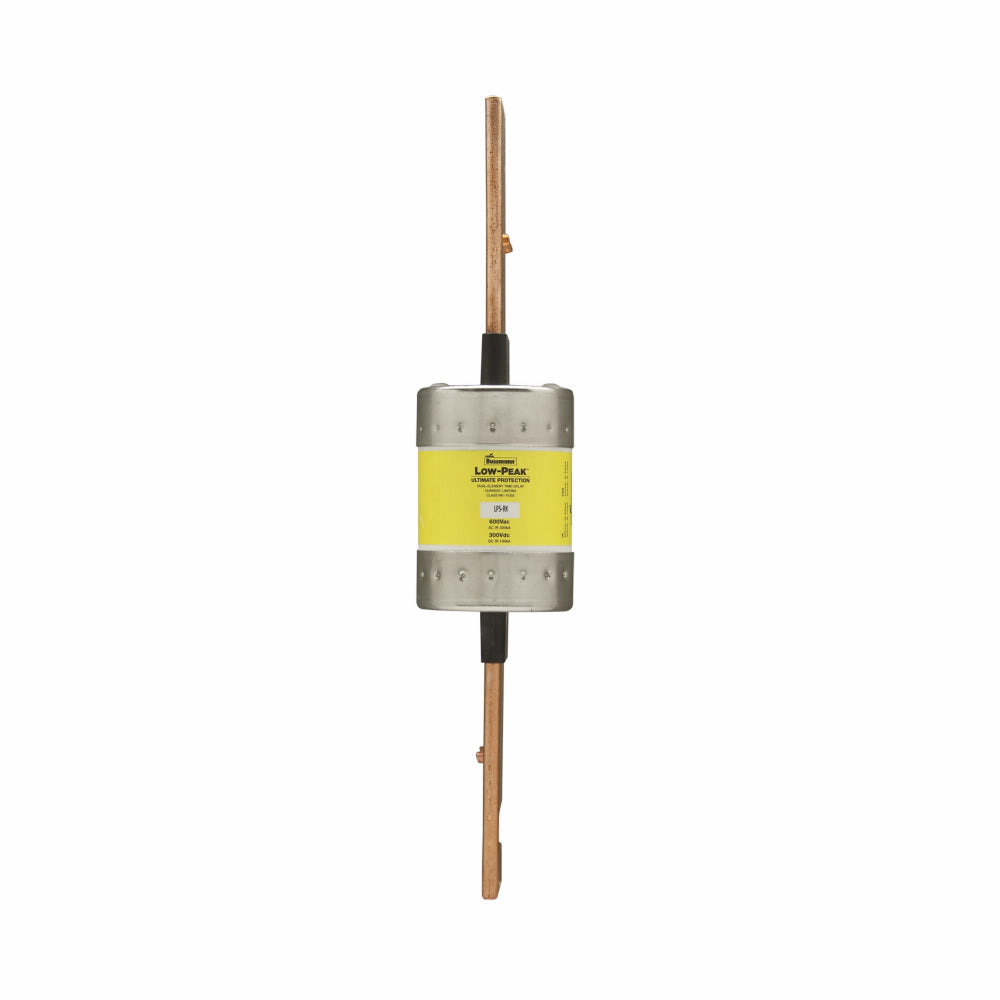

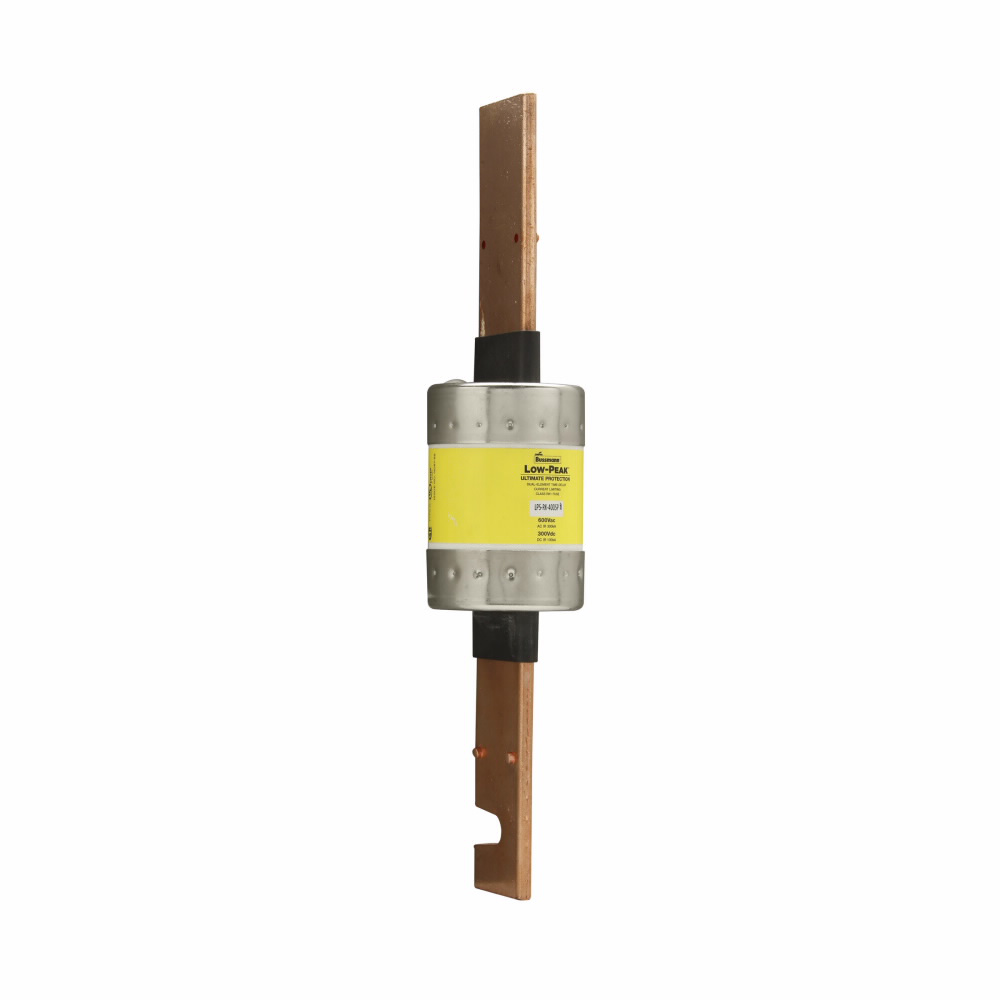

Bussmann LPS-RK-400SP Low Peak Dual Element Fuse 400 Amp 600V

Product Description

The Bussmann LPS-RK-400SP is a low peak dual element fuse designed by Bussmann for application in power distribution systems. This fuse carries a rating of four hundred amperes and operates at a voltage of six hundred volts AC or three hundred volts DC.

• Current-limiting design for better protection
• Time-delay features assist with transient overload conditions
• Non-indicating design ensures reliable performance

Product Highlights

This fuse is ideal for large distribution switchboards, power panelboards, and motor control centers. Its dual-element feature helps manage high inrush currents effectively while ensuring safety.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPS-RK-400SP

Technical Specifications

• Fuse Type: Current Limiting, Time-Delay
• Amperage Rating: 400 Amp
• Voltage Rating: 600 Vac; 300 Vdc
• Interrupt Rating: 300 kAIC at 600 Vac; 100 kAIC at 300 Vdc
• Dimensions: 2.36 inches Diameter x 11.63 inches Length
• Weight: 4.6 lb
• Connection Type: Blade end x blade end
• Applications: Large Distribution Switchboards, Power Panelboards, Motor Control Centers
