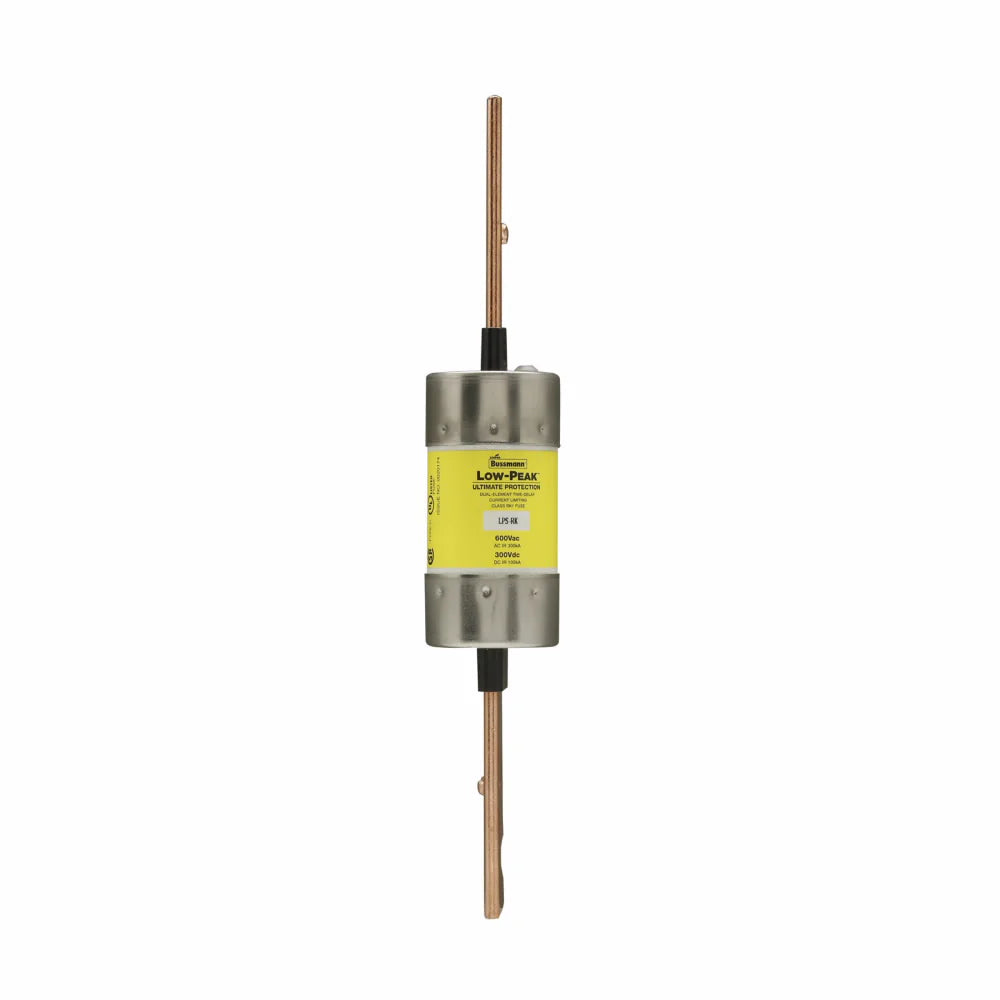

Bussmann LPS-RK-200SP Fuse 200A 600 VAC/300 VDC

Product Description

The Bussmann LPS-RK-200SP is a current limiting low voltage time delay fuse rated for two hundred amperes with a voltage capacity of six hundred volts alternating current or three hundred volts direct current.

• Current limiting and time delay functionality
• Suitable for Class RK1 applications
• 300 kA interrupt rating

Product Highlights

This fuse is designed for larger systems where overload protection is crucial. The dual-element design allows for effective short circuit protection, minimizing potential damage to connected components.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer Part No: LPS-RK-200SP

Technical Specifications

• Type: Current Limiting Low Voltage Time Delay
• Class: RK1
• Series: LPS-RK
• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 200 A
• Interrupt Rating: 300/100 kAIC
• Material: Melamine
• Body Size: 1.61 inches Dia x 9.63 inches L
• Response Time: 10 s at 500%
• Terminal Type: Blade End
• Mounting Type: Holder
• Application: Power Panelboards, Motor Control Centers
