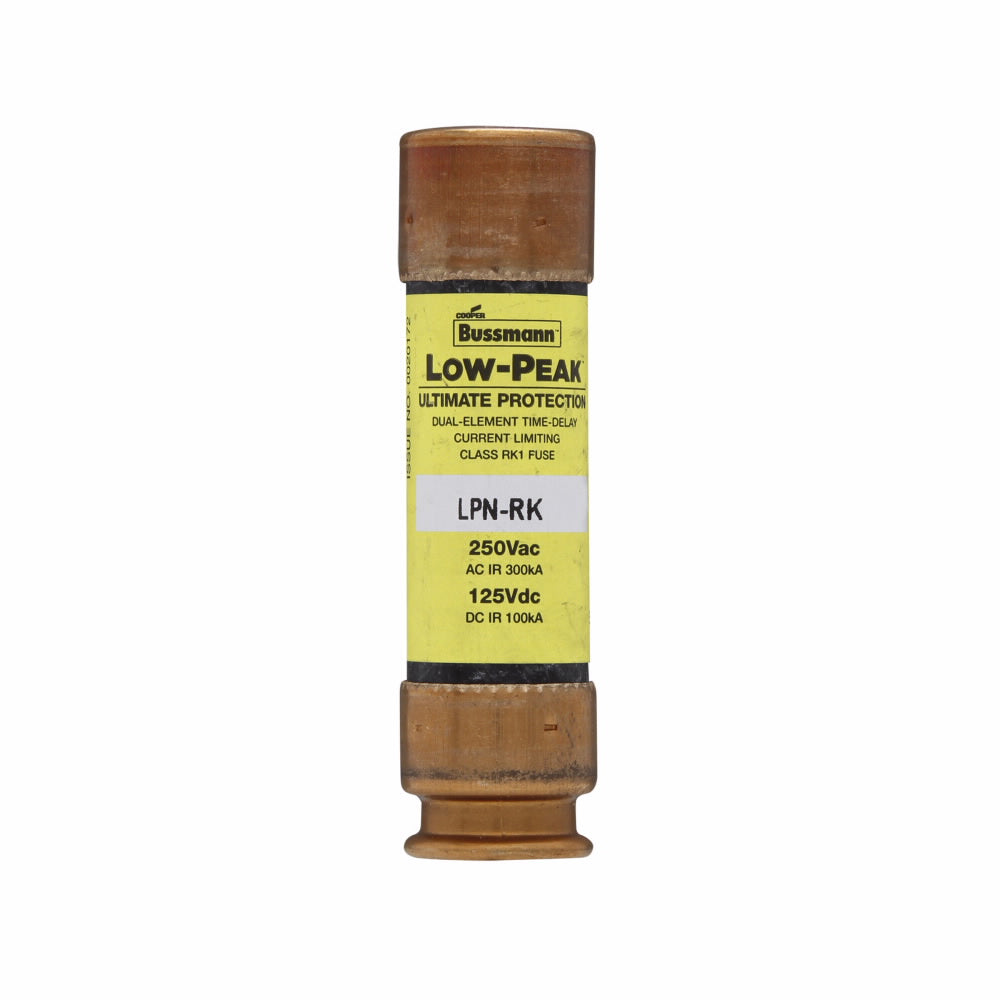

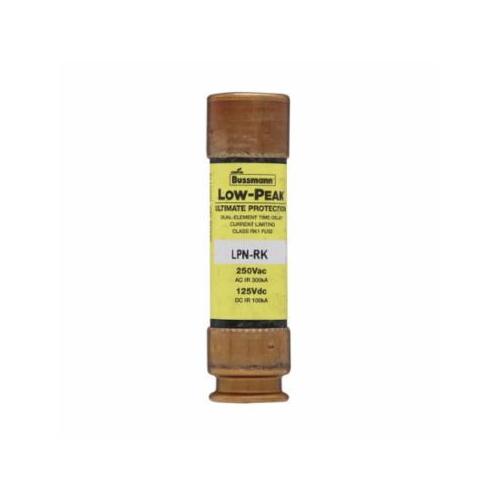

Bussmann LPN-RK-50SP Low Peak Dual Element Fuse

Product Description

Bussmann LPN-RK-50SP is a dual-element fuse designed for current limiting and time delay applications. This fuse is suitable for use in industrial facilities, providing safety and reliability in electrical systems. It has an amperage rating of fifty amps and operates at a voltage of two hundred fifty volts AC or one hundred twenty-five volts DC.

• Time delay feature allows for handling inrush currents
• Current-limiting characteristics help prevent damage to electrical systems
• Constructed with insulated end caps for safety

Product Highlights

Suitable for industrial applications, the Bussmann Low Peak Fuse features an interrupting rating of one hundred kAIC at two hundred fifty volts DC and three hundred kAIC at two hundred fifty volts AC.

Product Information

Standard Information

• Type: Fuse
• Brand: Bussmann

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 250 VAC / 125 VDC
• Body Type: Cartridge
• Element: Dual
• Response Time: 10 seconds at 500%
• Interrupt Rating: 100/300 kA
• Body Size: 0.81 inches diameter x 3.00 inches length
• Connection Type: Ferrule end x ferrule end
