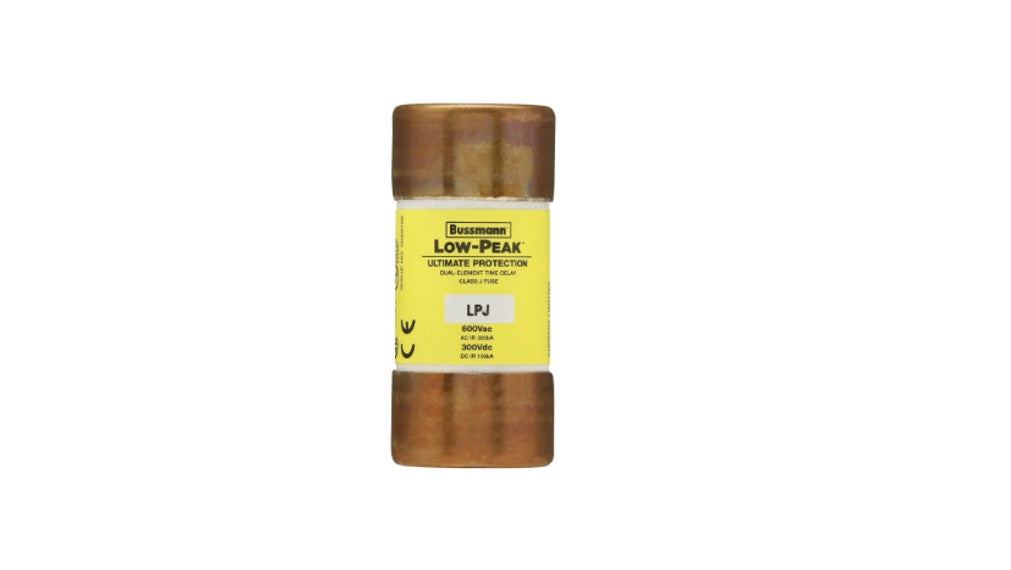

Bussmann LPJ-60SP 600V J TD FS

Product Description

The Bussmann LPJ-60SP is a Class J fuse, rated at sixty amps, designed for circuit protection. This fuse operates at a voltage of six hundred volts, alternating current, and three hundred volts, direct current. Its dual-element feature provides effective time delay for overloads.

• Interrupt rating of three hundred kiloamps at six hundred volts and one hundred kiloamps at three hundred volts.
• Constructed from high-quality melamine for durability.
• Designed for easy installation with a ferrule terminal connection.

Product Highlights

This fuse is ideal for applications in industrial facilities, safety systems, and control panels. It minimizes fuse openings during temporary overloads, ensuring continuous operation of equipment.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer Part Number: LPJ-60SP

Technical Specifications

• Type: Non-Rejection, Current-Limiting
• Amperage Rating: 60 Amp
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Interrupt Rating: 300 Kilo-Amp at 600 Volt AC, 100 Kilo-Amp at 300 Volt DC
• Size: 1.06 Inch Diameter x 2.38 Inch Length
• Element Type: Dual
• Construction: Melamine Body
• Response Time: 10 sec at 500% Rated Load
