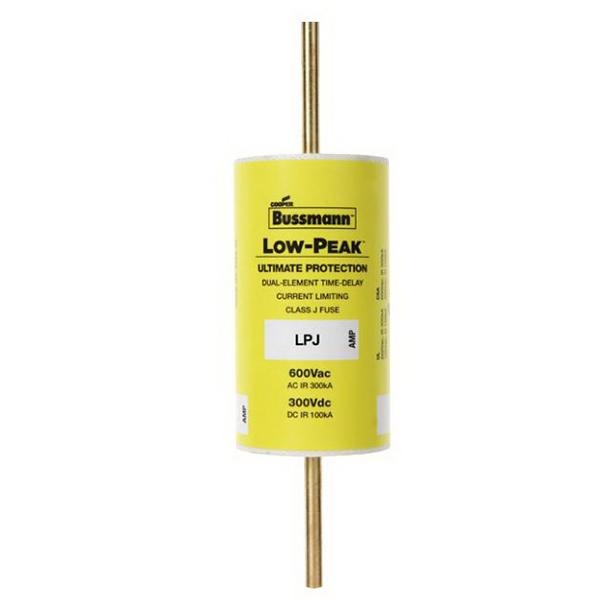

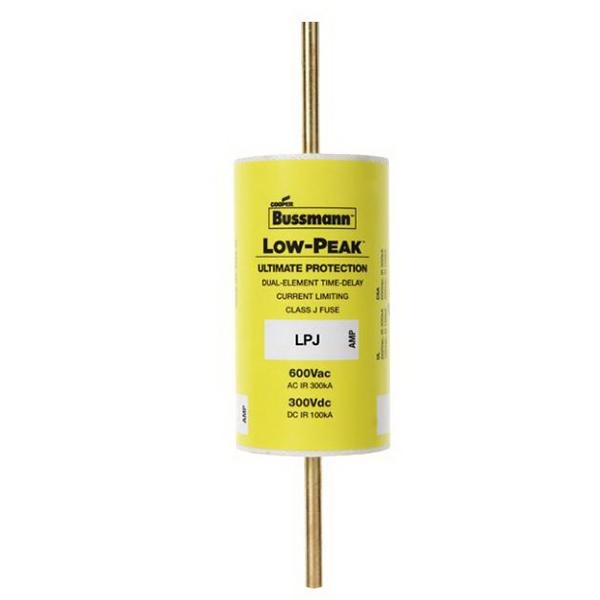

Bussmann LPJ-100SP 600V J TD FS

Product Description

Bussmann LPJ-100SP is a time-delay, dual-element current limiting fuse rated at one hundred amps and six hundred volts AC. This non-indicating fuse features an interrupt rating of three hundred kiloamps at six hundred volts AC and one hundred kiloamps at three hundred volts DC. The fuse is designed to prevent unnecessary openings caused by temporary overloads.

• Time-delay for reduced nuisance tripping
• Ideal for industrial control applications
• UL listed and RoHS compliant

Product Highlights

This fuse minimizes the risk of damage to downstream components during short-circuit events.

Product Information

Standard Information

• Manufacturer: Bussmann
• Part Number: LPJ-100SP

Technical Specifications

• Type: Non-Rejection, Current-Limiting
• Amperage Rating: 100 Amp
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Size: 1.13 Inch Diameter x 4.63 Inch Length
• Construction: Melamine Body
• Element Type: Dual
• Interrupt Rating: 300 Kilo-Amp at 600 Volt AC, 100 Kilo-Amp at 300 Volt DC
• Response Time: 10 seconds at 500% rated load
• Terminal Connection: Bolted Blade
• Body Style: Cylindrical
• Standards: UL Listed, CSA Certified, CE Marked, RoHS Compliant
