Bussmann LP-CC-4 Low-Peak LP-CC Time-Delay Fuse 4 A (Class CC) LP-CC-4

Brand: BUSSMANN
SKU: LP-CC4
Availability: In Stock

Ships same day if ordered by 12 pm
$42.00
$42.00
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

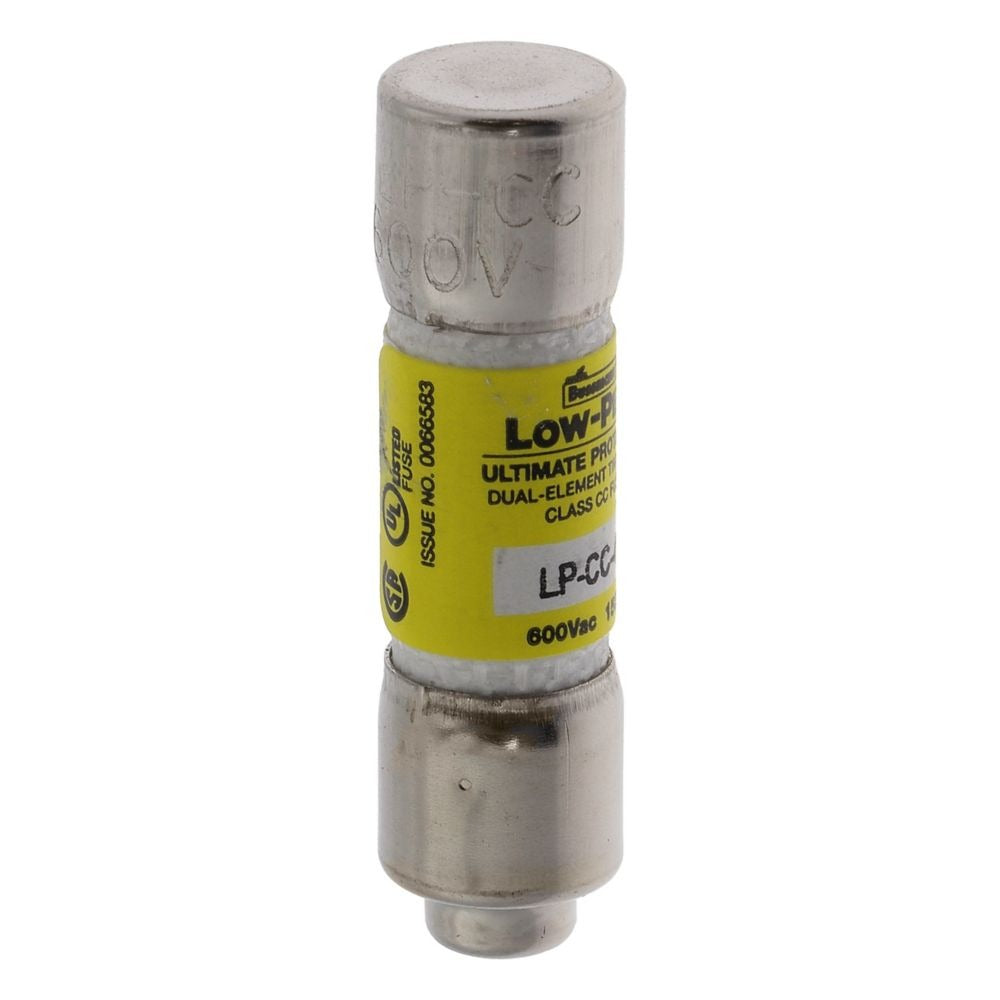

Bussmann LP-CC-4 is a Low-Peak class CC current-limiting, time-delay fuse rated 4 A and 600 V AC (150 V DC listed) for low-voltage protection. The fuse features rejection-style, ferrule end x ferrule end termination and melamine tube construction. It provides high interrupting capability and is specified to clear within 12 seconds at 200% overload, meeting UL and CSA standards.

  • Current-limiting, time-delay design; 4 A rating, Class CC Low-Peak
  • Rated 600 V AC (150 V DC listed) with 200 kAIC @ 600 V and 20 kAIC @ 150 Vdc interrupting ratings
  • Rejection-style ferrule end x ferrule end construction, non-indicating, melamine tube; 12 seconds at 200% overload

Product Highlights

Class CC Low-Peak 4 A time-delay fuse with high interrupting ratings for low-voltage protection.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: LP-CC4
  • Country of Origin: Mexico
Technical Specifications
Part Number
LP-CC-4
Brand
Bussmann
Manufacturer
Eaton (Eaton Cutler-Hammer)
Family/Series
Low-Peak
Fuse Type
Time-delay, current-limiting
Class
CC
Amperage
4 A
Voltage Rating
600 V AC (150 V DC listed)
Interrupting Rating (AIC)
200 kA @ 600 V; 20 kA @ 150 Vdc
Termination
Ferrule end x ferrule end (rejection-style)
Indication
Non-indicating
Construction Material
Melamine tube
Time-Delay Performance
Clears within 12 seconds at 200% overload
Dimensions (HxWxD)
1.5 x 0.41 x 0.41 inches
Weight
0.15 lbs
Standards/Certifications
UL, CSA
Category
Fuses
Mounting/Use
Low-voltage protection, panel accessory
Country of Origin
MX
Alternate Part Number
EATON CORPORATION COOPER BUSSMANN LP-CC-4
UPC
0051712180320
