Bussmann LP-CC-3 LP-CC3 LW-PEAK CC TD FS 3-Amp Low-Peak

Product Description

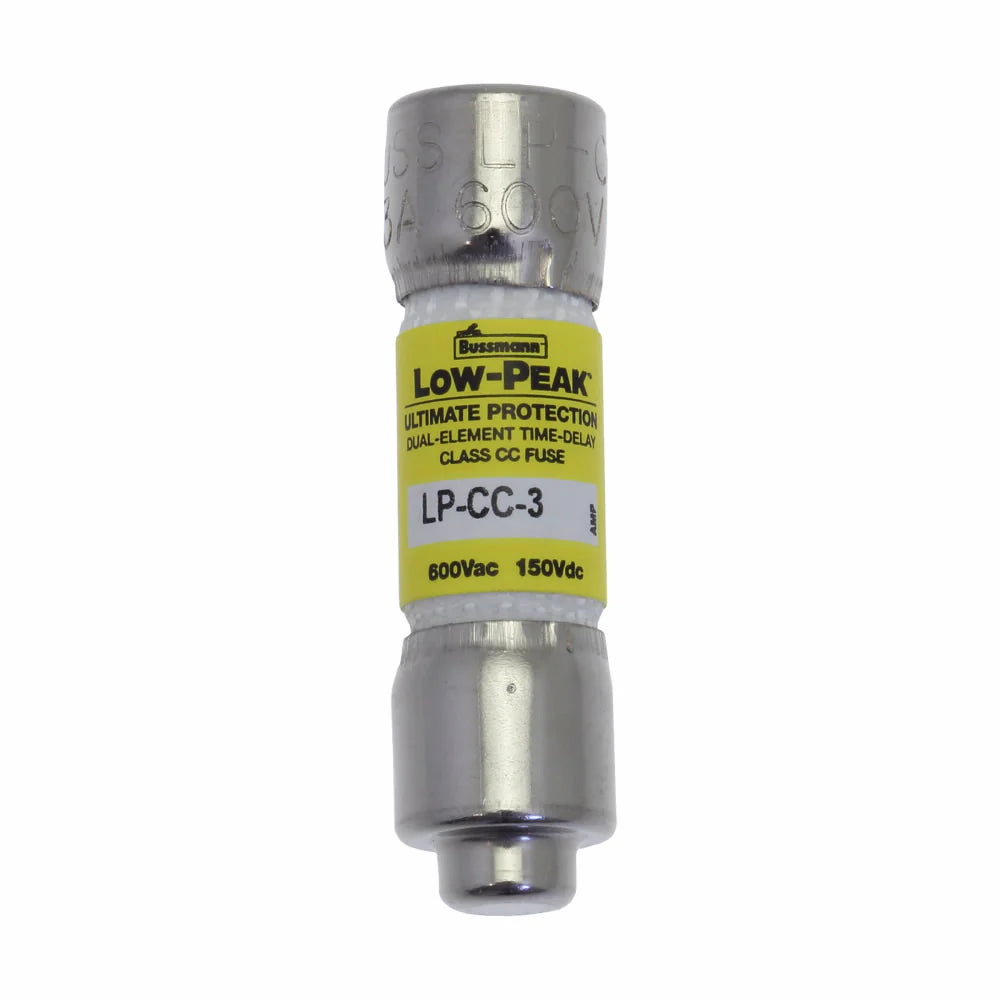

Bussmann series fuse, MPN LP-CC-3, is a Class CC current limiting time-delay fuse rated at three Amps and is suitable for use at 600 Vac and 150 Vdc. This dual-element rejection style fuse features an interrupting rating of 200 kilo-Amperes at 600 Vac and 20 kilo-Amperes at 150 Vdc.

• Rated current: 3 A
• Dimensions: thirteen thirty-seconds inch diameter by one and one-half inches length
• Construction: melamine tube with ferrule end connections

Product Highlights

This fuse offers effective current limitation to protect downstream circuits from the adverse effects of short-circuit conditions. Its cylindrical design allows for clip mounting. The fuse is UL listed and complies with CSA and RoHS standards.

Product Information

Standard Information

• Manufacturer: Bussmann
• Class: CC

Technical Specifications

• Amperage Rating: 3 A
• Voltage Rating: 600 Vac; 150 Vdc
• Interrupt Rating: 200 kAIC at 600 Vac; 20 kAIC at 150 Vdc
• Response Time: 12 seconds at 200%
• Construction: Melamine body
• Indication: Non-Indicating
• Mounting: Clip
• Element: Dual
