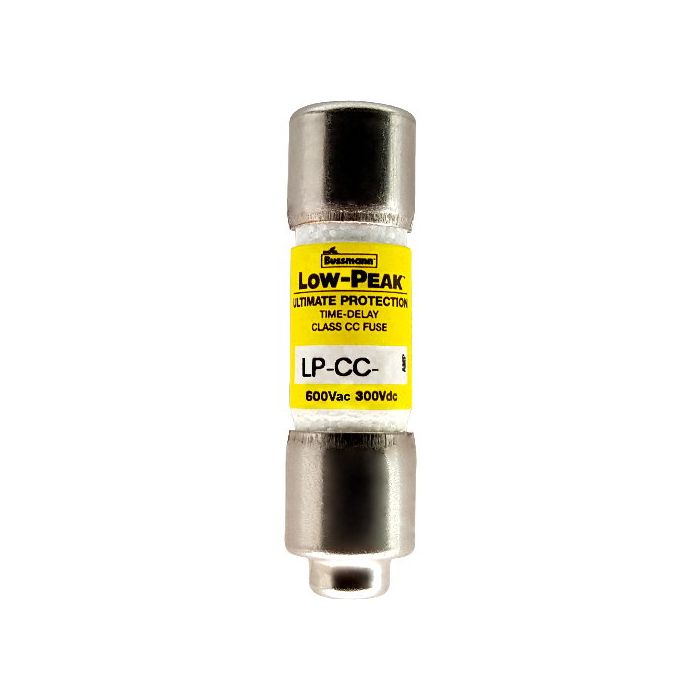

Bussmann LP-CC-2-8/10 Eaton Bussmann Series LP-CC Fuse 2.8 A

Product Description

The BUSSMANN LP-CC-2-8/10 is an Eaton Bussmann Series Class CC fuse. This time-delay, dual-element, current limiting fuse has an amperage of 2.8 A and a rejection style. It features an interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc. It is suitable for specialized circuits and industrial control.

• Time-delay
• Dual-element
• Current limiting
• Rejection style

Product Highlights

The BUSSMANN LP-CC-2-8/10 fuse is ideal for specialized circuits and industrial control applications, providing reliable protection with its time-delay and current-limiting features.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: LP-CC-2-8/10
• Country of Origin: MX - Mexico

Technical Specifications

• Product Name: Eaton Bussmann series LP-CC fuse
• Catalog Number: LP-CC-2-8/10
• UPC: 051712180559
• EAN: 5027590147088
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Compliances: CE Marked RoHS Compliant
• Certifications: UL Listed CSA Certified
• Product Type: Fuse
• Amperage Rating: 2.8A
• Number of elements: Dual
• Class: Class CC
• Interrupt rating: 200 kAIC at 600 Vac 20 kAIC at 300 Vdc
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 12 sec at 200%
• Material: Melamine tube
• Packaging type: Standard
• Quantity: 10
• Voltage rating: 600 Vac, 300 Vdc
• Type: Current-limiting time-delay fuse
• Special features: Rejection style
• Application: Specialized circuits and industrial control
• Voltage Rating: 600V
• Time Delay: 12 Second (Minimum)
• Element: Dual
• Rejection Type: Rejection
• Physical Size: 0.41" x 1.5"
• DC Interrupting Rating: 20,000 AIC
• AC Voltage Rating: 600
• DC Voltage Rating: 150
• Standards: CE, Std. 248-4, Class CC, UL Listed
• UL Guide: JDDZ, File E4273
• CSA Certified: Class 1422-02, File 53787
• UNSPSC: 39121606
• Approval: UL 248-4, CSA, CE
• Mounting Type: Holder
• Terminal Type: Ferrule
• Current Rating: 2-8/10 Amp
• Characteristics: Time Delay
• Interrupting Rating: 200 Kiloamp Symmetrical (AC), 20 Kiloamp (DC)
• Series: LP-CC
• Diameter: 13/32 Inch
• Fuse Interrupt Rating: 200 kAIC at 600V ac
• Fuse Dimension: 1-1/2 L x 13/32 in. Dia.
• Rated Voltage: 600V ac/300V dc
• Shape: Rectangular
• Fuse Amps: 2.8A
• Length: 0.41 in.
• Width: 0.41 in.
• Ampere: 2.8 A
• Speed: Time Delay / Slow Blow
• Class CC Fuse: Class CC Fuse
• Cartridge Fuses: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse CCMR, Mersen ATDR
• Datasheet: https://specs.thefuseshop.com/Bussmann_LP-CC_Datasheet.pdf (Bussmann LP-CC Datasheet)
• Dimensions: 0.41" Dia x 1.5" L (10.41x38.1mm)
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Body Type: Cartridge
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 248-4, Guide No. JDDZ, File No. E4273, CSA Class 1422-02, File No. 53787, CE Certified, NEC 110.9
• Catalog ID: BUSLP-CC-2-8/10
• Body Size: 13/32 in Dia x 1-1/2 in L
