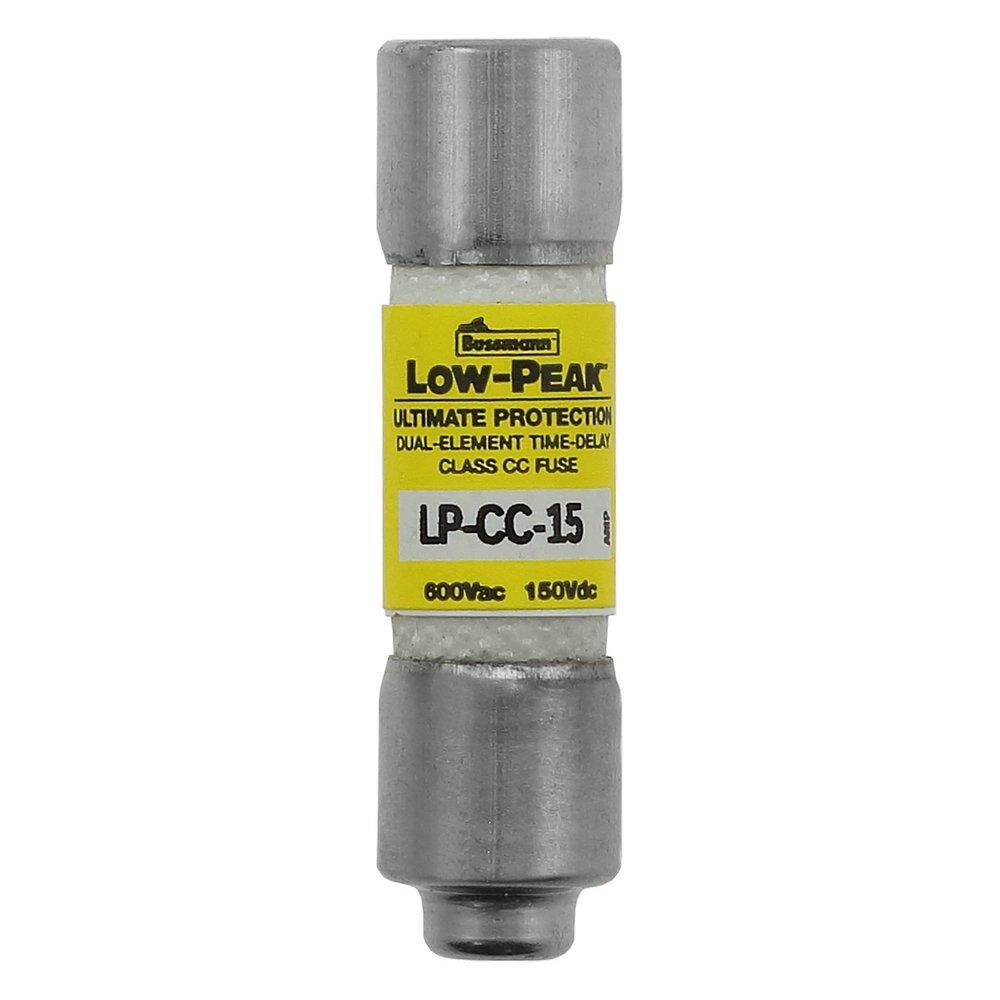

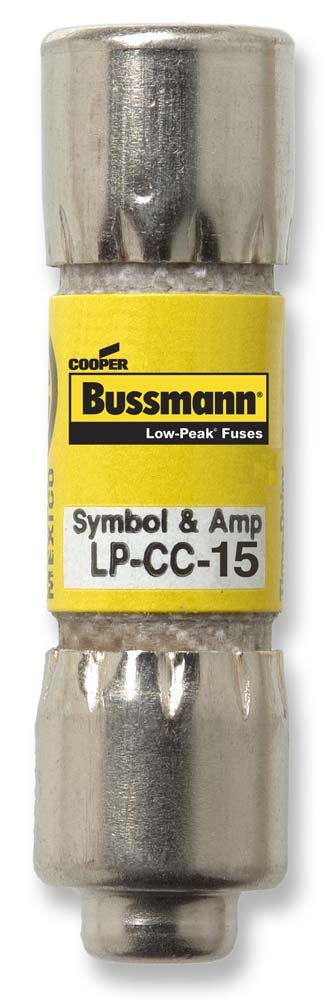

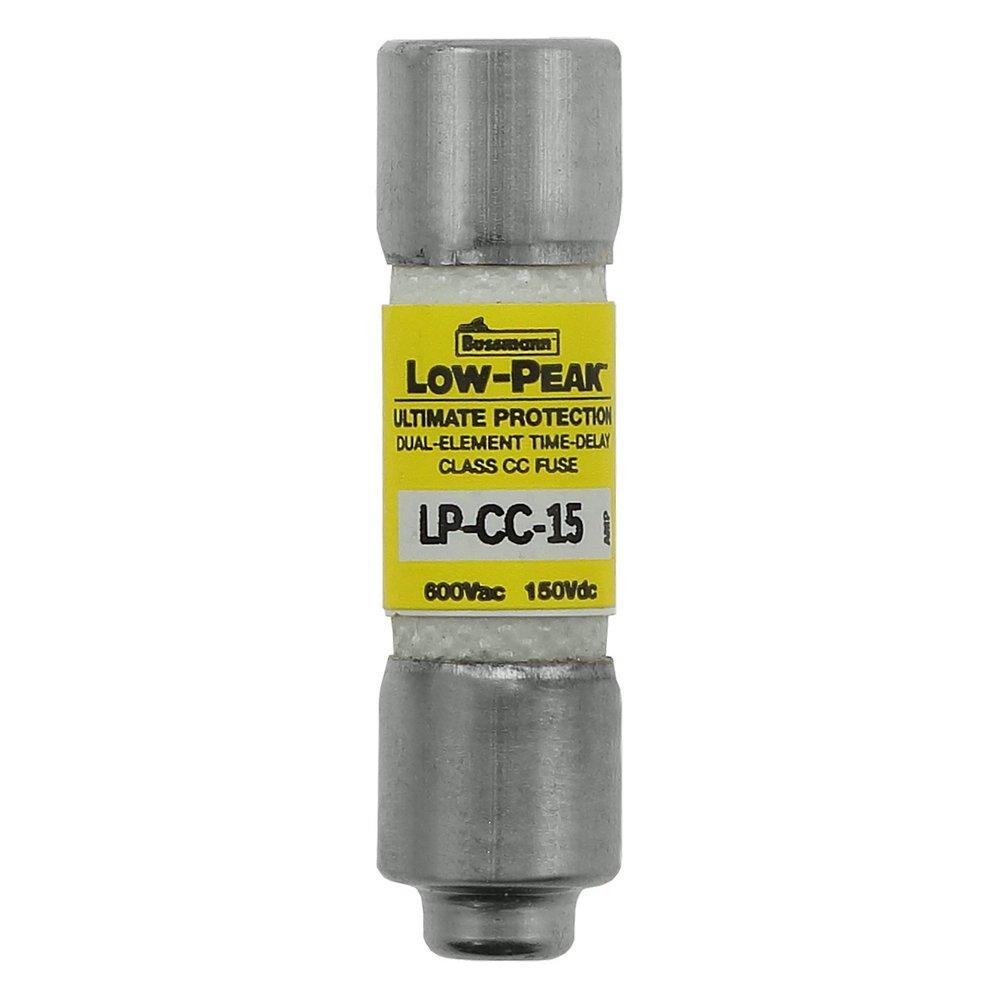

Bussmann LP-CC-15 Fuse 15A 600V Time Delay Current Limiting CC

Product Description

The Bussmann LP-CC-15 is a 15 Amp time delay fuse designed for 600 VAC and 150 VDC applications. This Class CC fuse provides current limiting protection and is essential for safeguard circuits and equipment.

• 15 Amp rating suitable for various applications
• Time delay feature allows for higher inrush currents
• Current limiting to protect sensitive equipment

Product Highlights

The Bussmann LP-CC-15 is designed to fit in a compact space while providing high performance and safety. It ensures reliable operation in branch circuits and industrial settings.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LP-CC-15

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 600 VAC / 150 VDC
• Interrupt Rating: 200/20 kAIC
• Body Type: Cylindrical
• Element Type: Dual
• Response Time: 12 seconds at 200%
• Material: Melamine Tube
• Mounting Type: Holder
• Body Size: 13/32 inches diameter x 1-1/2 inches length
