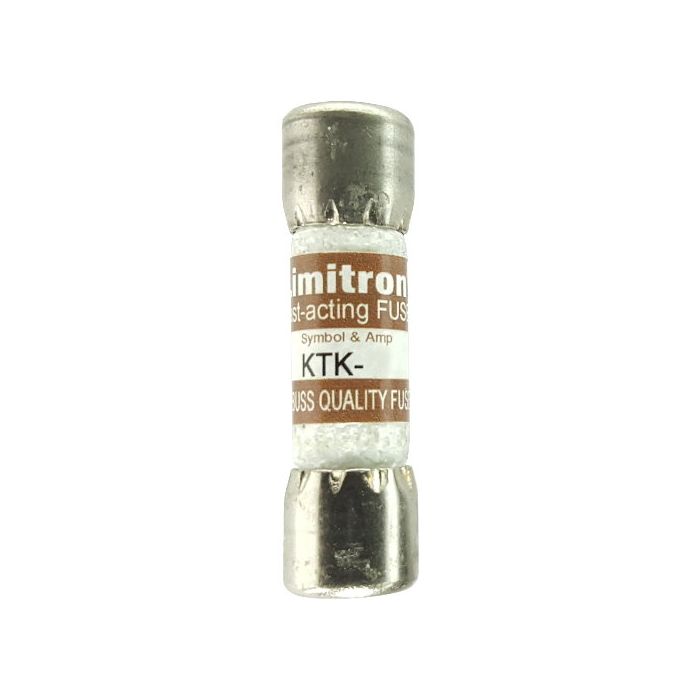

Bussmann KTK-7-1/2 Fuse 7.5 Amp 600V

Product Description

The Bussmann KTK-7-1/2 series fuse is designed for control circuits, lighting circuit protection, and meter circuits. This 7.5A, 600V fast-acting fuse features a melamine tube and nickel-plated bronze endcaps. It is non-indicating with ferrule end connections and has an interrupting rating of 100 kAIC at 600V.

• 7.5 Amps
• 600V
• Fast-acting for resistive loads

Product Highlights

Fast-acting fuse with melamine tube construction and nickel-plated endcaps.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTK-7-1/2
• Country of Origin: Mexico

Technical Specifications

• Amperage: 7.5 A
• Voltage: 600 V
• Product Type: Fuse
• Catalog Number: KTK-7-1/2
• UPC: 051712179072
• EAN: 5027590446044
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Interrupt rating: 100 kAIC at 600 Vac
• Material: Melamine tube Nickel-plated bronze endcap
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Fuse Type: Midget
• Fuse Speed: Fast Acting
• Tube Material: Melamine
• Endcaps: Nickel-plated bronze
• Physical Size: 0.41" x 1.5"
• Interrupting Rating: 100,000 AIC RMS @ 600VAC
• UL Listed: STD. 248-14, (Guide #JDYX, File #E19180)
• CSA Certified: C22.2 NO. 248.14 (File #53787?Class #1422-01)
• Body Material: Melamine
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HET; HEX; HPG; HPS; OPM-1038; OPM-NG
• Current Rating: 7.5 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 100 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Fast-Acting
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• Ampere: 7.5 A
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Dimensions: 0.41" Dia x 1.5" L (10.41x38.1mm)
• Application: Control circuits, lighting circuit protection, meter circuits
• Brand: Bussmann by Eaton
• Type: Fuse
• Unit of Measure: EA
