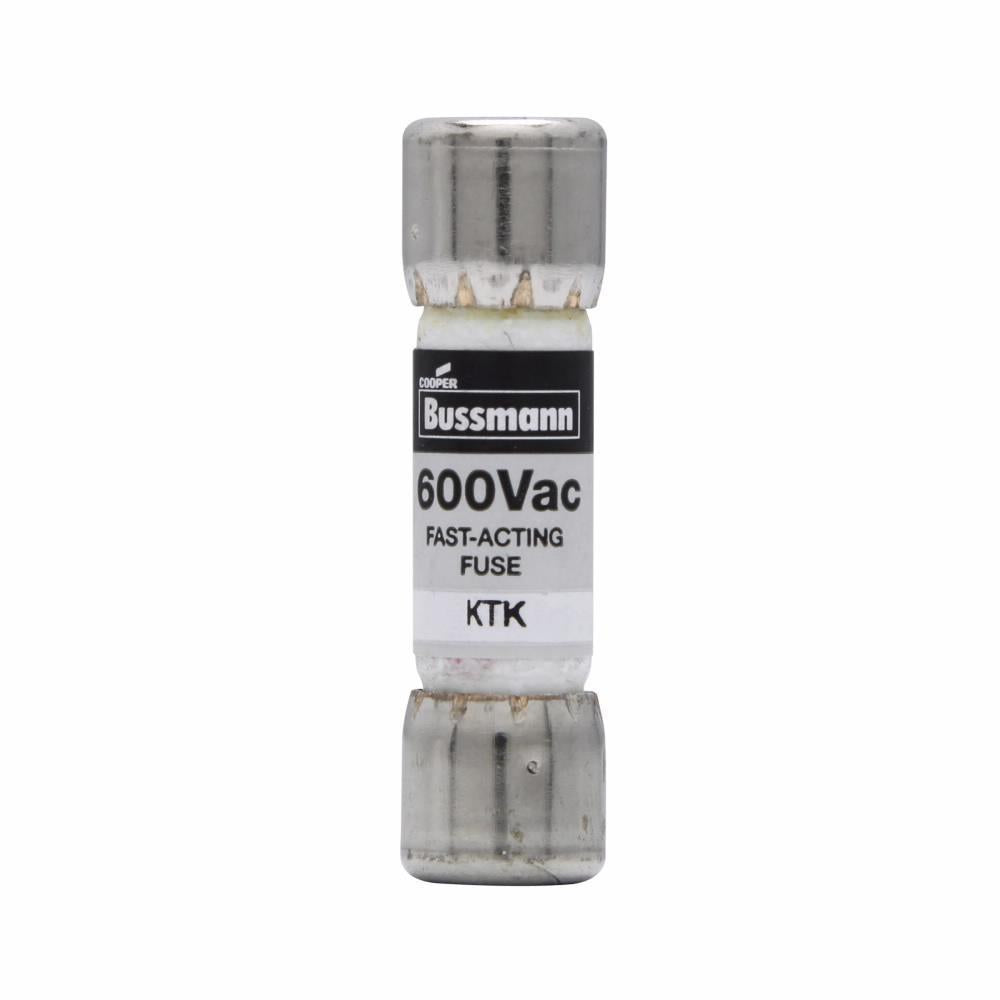

Bussmann KTK-45 Fuse 45 A

Product Description

The Bussmann KTK-45 series fuse is designed for control circuits, lighting circuit protection, and meter circuits. Rated at 45 A and 600 V, it features a melamine tube and nickel-plated bronze endcaps. This fast-acting fuse provides reliable protection in residential, commercial, and industrial applications. Its compact size makes it suitable for various installations.

• Small footprint
• Fast Acting
• 600 Volts AC

Product Highlights

Provides fast-acting protection for control, lighting, and meter circuits with a compact design.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTK-45

Technical Specifications

• Product Name: Eaton Bussmann series KTK fuse
• Catalog Number: KTK-45
• UPC: 051712420334
• EAN: 5027590445986
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Product Weight: 0.19 lb
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 45 A
• Voltage rating: 600 V
• Material: Melamine tube Nickel-plated bronze endcap
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Small footprint
• Amps: 45
• Volts AC: 600
• Fuse Type: Fast Acting
• Tube Material: Melamine
• Endcaps: Nickel-plated bronze
• Physical Size: 0.41" x 1.5"
• AC Voltage Rating: 600
• Interrupting Rating: 100,000 AIC RMS @ 600VAC
• UL Listed: STD. 248-14, (Guide #JDYX, File #E19180)
• CSA Certified: C22.2 NO. 248.14 (File #53787?Class #1422-01)
• Voltage Type: AC
• Poles: 1
• Frame Type: KTK
• Body Size: 13/32 in Dia x 1-1/2 in L
• Color: Black
• Element: Single
• Mounting Type: Holder
• Series: KTK
• Terminal Type: Ferrule End
• Type: Low Voltage Supplemental
• Interrupt Rating: 100 kAIC
• Class: Supplemental
• Body Type: Cartridge
• UNSPSC Code: 39120000
• Application: Control circuits, lighting circuit protection, meter circuits
• Brand: Bussmann by Eaton
• Current Rating: 45 A
• Dimensions: 1.50 in H X 0.41 in W X 0.41 in L
• Indicator: Non-indicating
• Manufacturer Part Number: KTK-45
• Shape: RECTANGULAR
• Unit of Measure: EA
• Weight: 0.19 lbs
