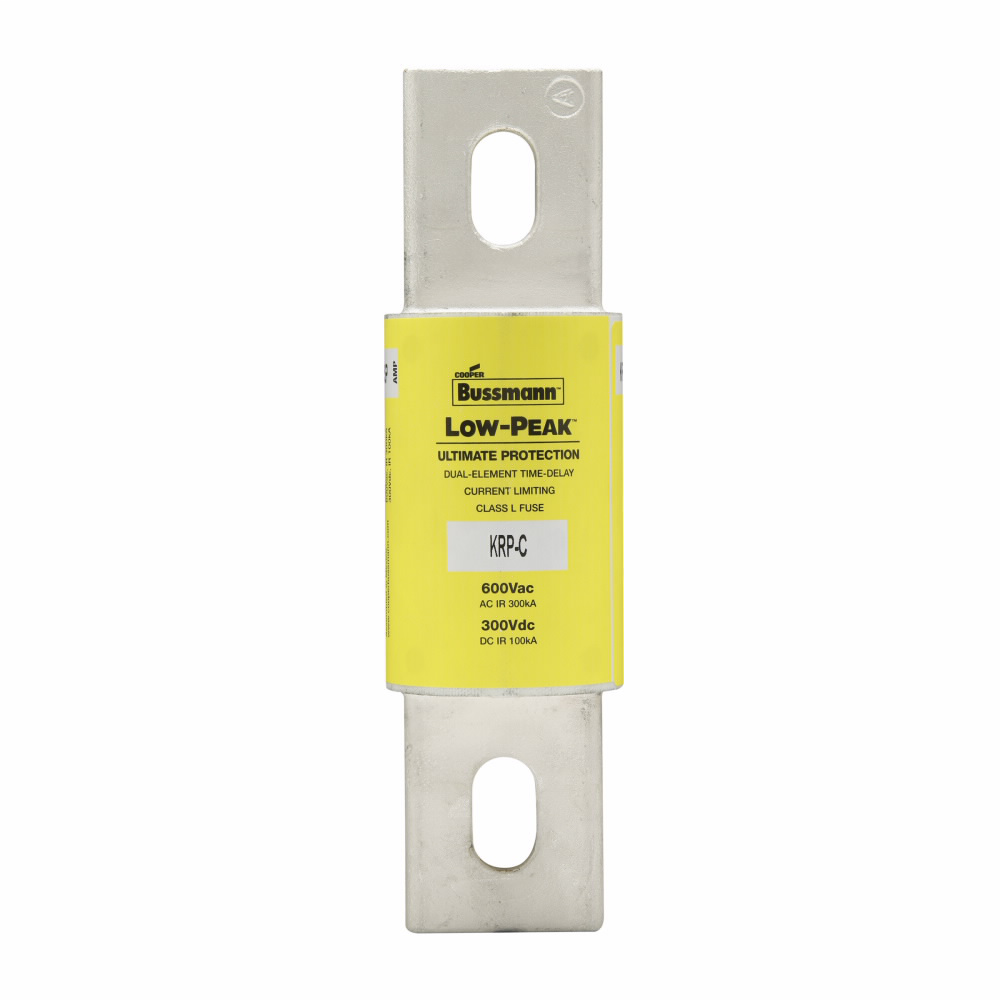

Bussmann KRP-C-800SP Low Peak Fuse Time Delay

Product Description

The Bussmann Series KRP-C-800SP Low Peak Fuse is designed for current-limiting and time-delay applications. This fuse has a rating of eight hundred amperes and is suitable for systems operating at a maximum voltage of six hundred volts. The fuse features bolted blade ends and provides reliable protection in various electrical systems. It is particularly effective in large distribution switchboards and power panelboards.

• Current-limiting and time-delay design
• Supports eight hundred amperes at six hundred volts
• Applications include large machinery disconnects

Product Highlights

This Bussmann fuse is engineered for optimal performance in demanding electrical environments, making it a crucial component in protecting circuits from overloads and faults.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Type: Current Limiting, Time-Delay
• Class: Class L
• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 800 A
• Response Time: 4 seconds at 500%
• Interrupt Rating: 300 kAIC at 600 Vac; 100 kA at 300 Vdc
• Dimensions: 2.50 inches diameter x 8.63 inches length
• Material: Melamine
