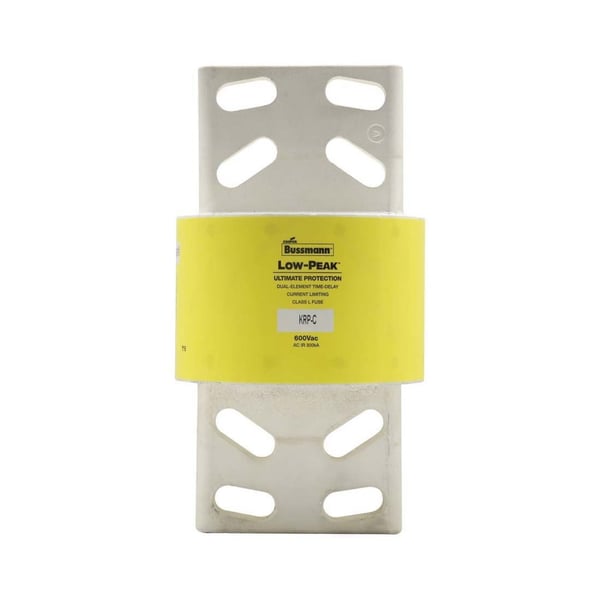

Bussmann KRP-C-4000SP Fuse 4000 A

Product Description

The BUSSMANN KRP-C-4000SP is an Eaton Bussmann Series Class L, time-delay, current limiting fuse. It has an amperage rating of 4000 A and an interrupting rating of 300 kA at 600 Vac. It is suitable for large distribution switchboards, large machinery disconnects, and power panelboards.

• Interrupting rating of 300 kAIC at 600 Vac
• Response time of 4 seconds at 500%
• Bolted blade end x bolted blade end connection

Product Highlights

The BUSSMANN KRP-C-4000SP fuse provides overload and short circuit protection for high capacity systems.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KRP-C-4000SP
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Bussmann series KRP-C fuse
• Catalog Number: KRP-C-4000SP
• UPC Code: 051712605403
• Product Length/Depth: 10.75 in
• Product Height: 5.79 in
• Product Width: 5.79 in
• Compliances: RoHS Compliant CE Marked
• Product Type: Fuse
• Amperage Rating: 4000 A
• Interrupt rating: 300 kAIC at 600 Vac
• Response time: 4 sec at 500%
• Voltage rating: 600 V
• Packaging type: Standard
• Class: Class L
• Connection: Bolted blade end x bolted blade end
• Fuse indicator: Non-indicating
• UNSPSC Code: 39120000
• Application: Large distribution switchboards, large machinery disconnects, power panelboards
• Brand: Bussmann by Eaton
• Current Rating: 4000 A
• Dimensions: 5.79 in H X 5.79 in W X 10.75 in L
• Indicator: Non-indicating
• Manufacturer Part Number: KRP-C-4000SP
• Shape: RECTANGULAR
• Type: Fuse
• Body Size: 5-3/4 in Dia x 10-3/4 in L
• Body Style: Cartridge
• Element: Dual
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Knife Blade
• Standard & Approvals: UL Guide No. JDDZ, File No. E4273, CSA Class 1422-02, File No. 53787, Class L per CSA C22.2, No. 248.10, CE Certified, RoHS compliant
• Interrupt Rating: 300 kA
• Amperage: 4000
• Voltage: 600
• Fuse Class: L
• Interrupting Rating DC: 100,000 AIC @ 300VDC
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• Time Delay: Time Delay - 4 Seconds (Minimum) at 500% Rated Current
• UL Listed: Special Purpose, Guide JFHR, File E56412
• CSA Certified: Class 1422-02, File 53787
• Length: 12in
